Contact arrangement: Single pole double throw switch (SPDT)
Switching sequence: Latching
Contact rated current: 5 A @ 250 V ac
Mounting type: PCB
Connection type: Solder Lug
IP protection class: IP 67
Actuator length: 18 mm
Actuator material: Brass
Contact resistance: 10 mΩ
Operating temperature range: -30 → +85 °C

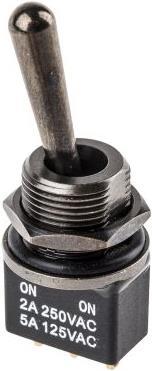

Sealed miniature toggle switches according to IP67 – RS series. These encapsulated switches feature a double housing for added mechanical strength and strong electrical insulation. The switches have two front O-ring seals that ensure sealing during operation. The backside of the switches is also fully sealed, providing complete protection against flowing water. The contacts are suitable for applications with low (10 mA, 50 mV – minimum 10 μA, 5 V dc) to high power (3 A @ 250 V ac).
