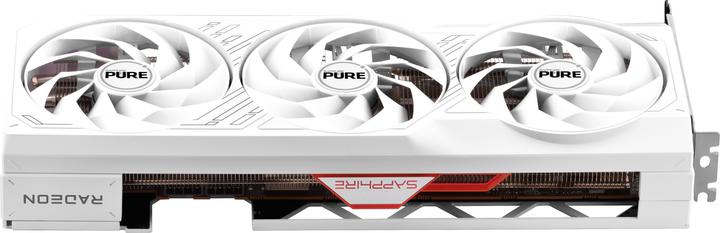

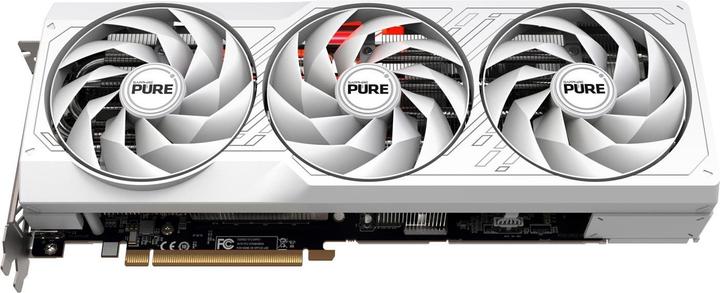

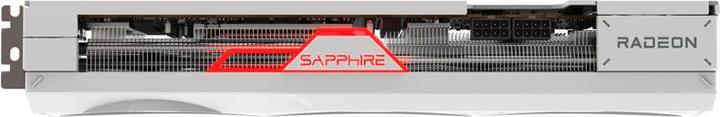

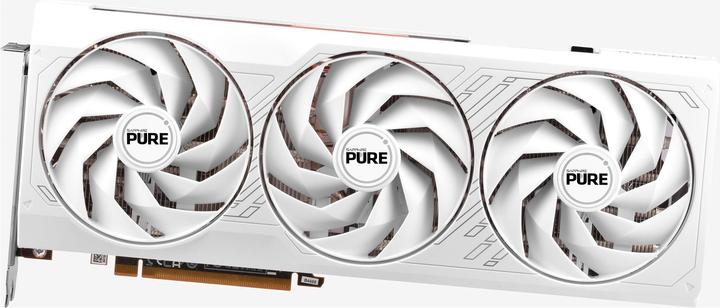

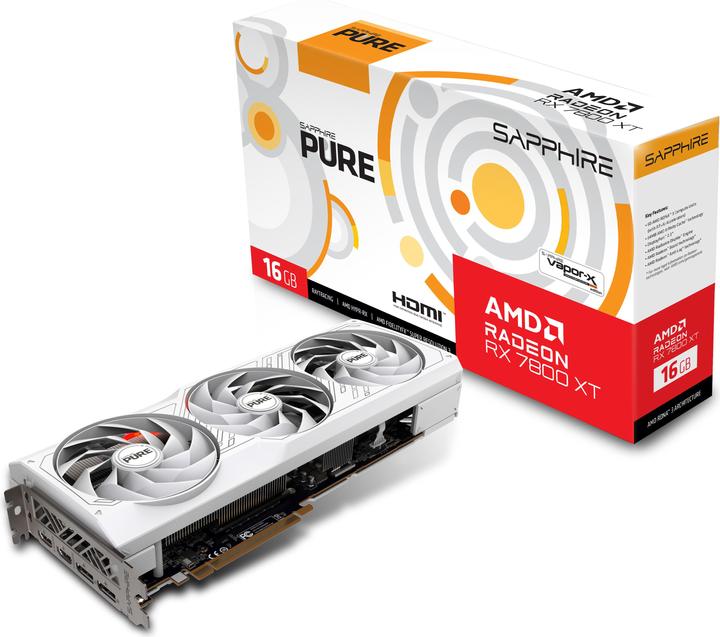

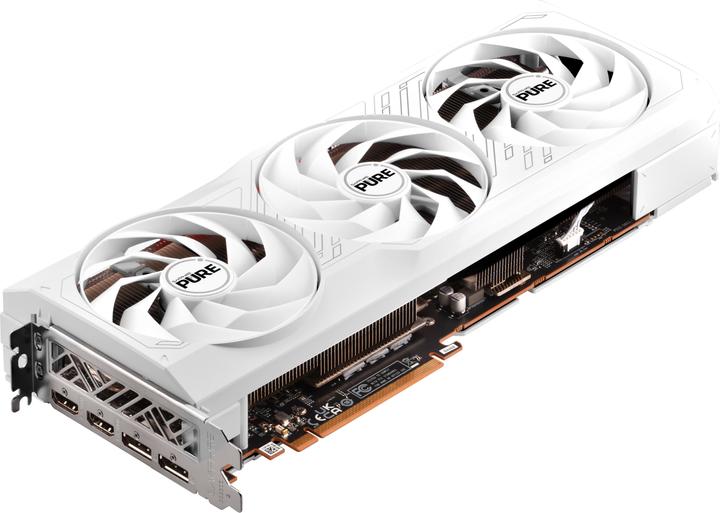

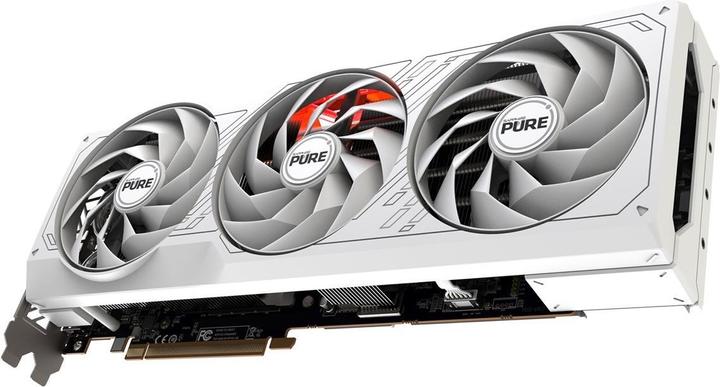

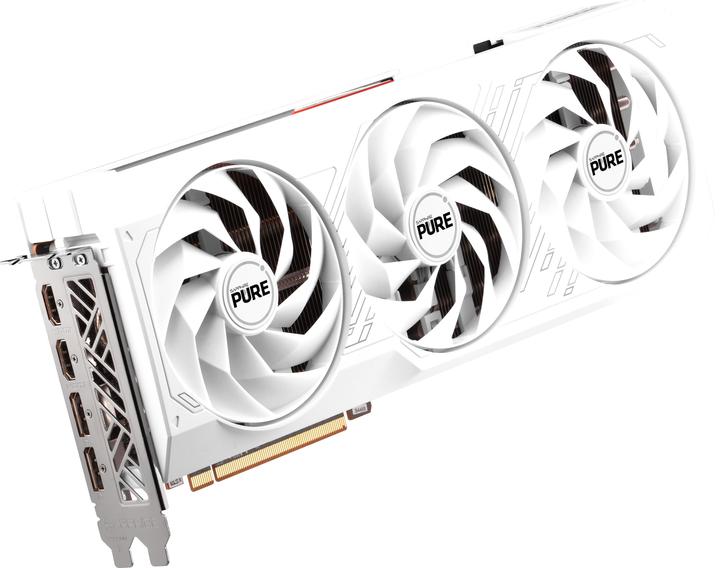

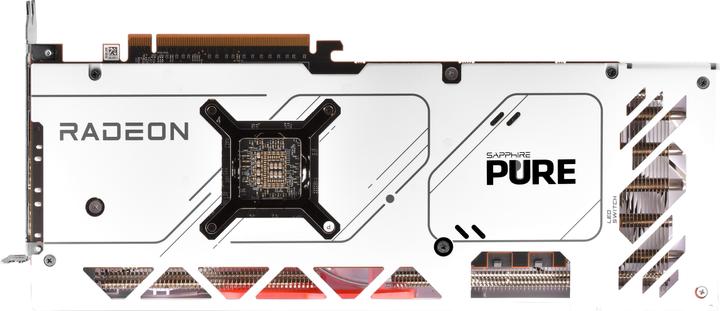

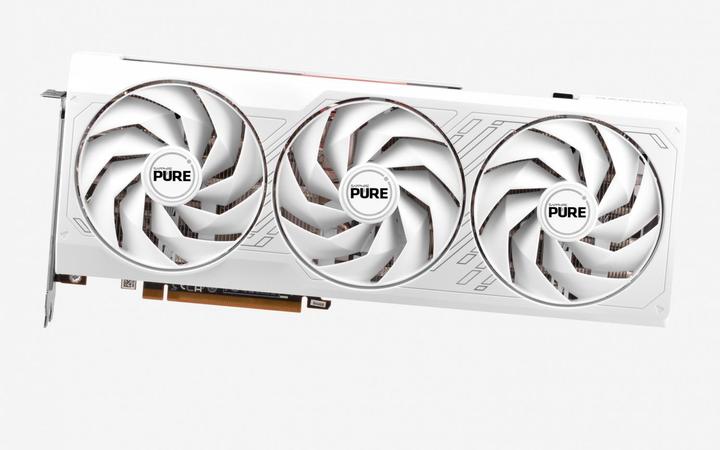

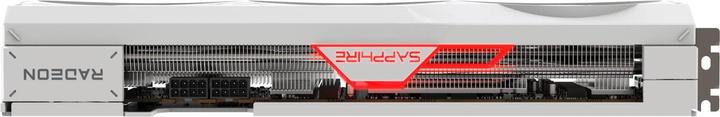

The Sapphire Pure AMD Radeon RX 7000 series is equipped with digital power supply, providing precise power control and excellent energy efficiency. The GPU is mounted on a high-density 14-layer 2-ounce copper PCB with high TG to meet the high speed, high power, and increased power demands of the GPU and memory, ensuring high stability of the board during operation.
Graphics card model | Radeon RX 7800 XT |
Max. Video resolution | 7680 x 4320 pixels |
Length | 32 cm |
Number of shaders | 3840 x |
Video memory clock | 19.50 GHz |
Power consumption | 270 W |
Max. connected monitors | 4 x |
Item number | 37891039 |
Manufacturer | Sapphire |
Category | Graphics card |
Manufacturer no. | 11330-03-20G |
Release date | 6.9.2023 |
Sales rank in Category Graphics card | 383 of 841 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 4.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2.5 Slots |
LED colour | Red |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 7800 XT |
Clock frequency | 1800 MHz |
Boost frequency | 2475 MHz |
Number of shaders | 3840 x |
Video memory type | GDDR6 |
Storage capacity | 16 GB |
Video memory clock | 19.50 GHz |
Memory Interface | 256 bits |
Graphics card cooling system | Active cooler |
Number of fans | 3 x |
DirectX version | 12 |
OpenGL version | 4.6 |
GPU microarchitecture | AMD RDNA 3 |
GPU manufacturer technology | AMD freesync |
Video connections | DisplayPort (2x), HDMI (2x) |
HDMI version | 2.1 |
DisplayPort version | 2.1 |
Power consumption | 270 W |
Min. recommended system performance | 700 W |
Power connectors | 2x 8-pin PCI-E |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 32 cm |
Width | 12.88 cm |
Height | 5.26 cm |
Product Safety |
Length | 43 cm |
Width | 9 cm |
Height | 24 cm |
Weight | 1.67 kg |
