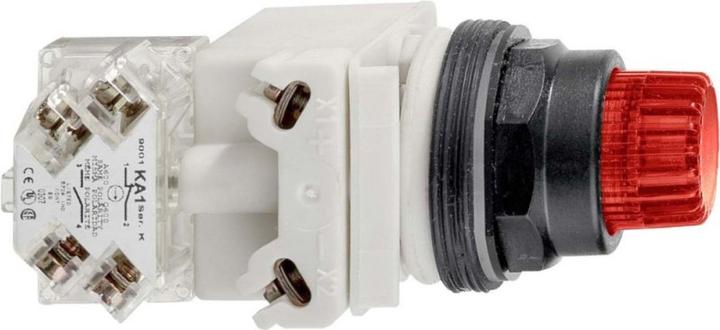

Schneider Electric Illuminated Push Button 9001SK2L35LRR

Manufacturer: Schneider Electric
Description: Red illuminated push button
Type: 9001SK2L35LRR
Number of command points: 1
Button design: high
Button color: red/green
Lens shape: round
Hole diameter: 31 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 24 V
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

This modular, illuminated, flush red button Harmony 9001SK features a double-insulated protective collar. It comes with an integrated 24VAC/dc LED and fits into a 30 mm hole. This illuminated button with integrated LED provides an ergonomic and visual interface for controlling your machines. It can be easily installed in a standard 30 mm diameter panel cutout and is simple to connect to control circuits. The illuminated head and clear color make it easily visible from a distance. With its IP66 protection class, it is shock-resistant, dust-tight, waterproof, and vibration-resistant, making it ideal for use in harsh environments.
