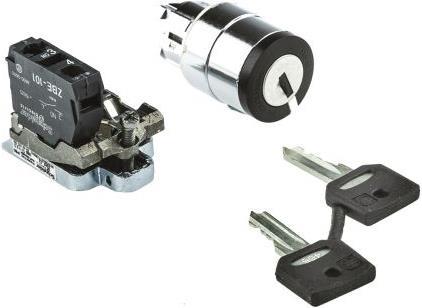

Schneider Electric Key Switch XB4BG41EX

Manufacturer: Schneider Electric
Designation: Key Switch 2-Position, 1NO
Type: XB4BG41EX
Number of Switching Positions: 2
Actuating Element Design: Key
Suitable for Lighting: No
With Light Source: No
Button Color: Black
Hole Diameter: 22.5 mm
Switch Function Latching: Yes
Momentary: No
Protection Class (IP): IP65/IP67
Protection Class (NEMA): Other
Number of Contacts as Normally Open: 1
Electrical Connection Design: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome

Schneider Electric Key Switch XB4BG41EX: Additional Details
The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30mm mounting size. Due to their quality, flexibility, and extreme robustness, these devices are ideal for most applications in industry and buildings. This key switch in black features 1 normally open contact and has 2 positions. This product comes with the appropriate ATEX certification. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
