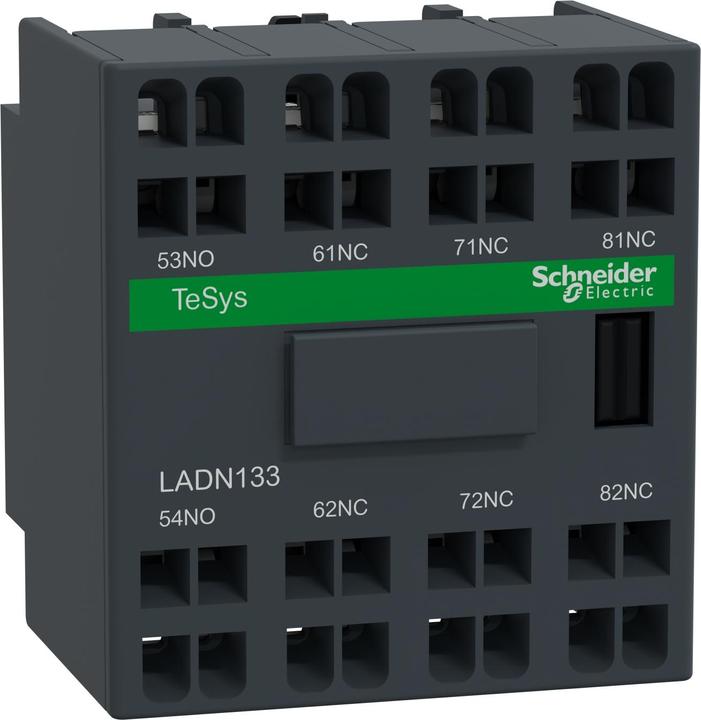

Schneider Electric Auxiliary Switch Block LADN133

Manufacturer: Schneider Electric
Designation: Auxiliary switch block 1S, 3Ö
Type: LADN133
Number of contacts as NO: 1
Number of contacts as NC: 3
Rated operational current Ie at AC-15, 230 V: 10 A
Electrical connection type: Spring-cage
Connection type: Clip-on
Mounting type: Front mounting

The Schneider Electric auxiliary contact block LADN133 is a TeSys D instantaneous auxiliary contact block designed for contactors LC1D and control relays CAD. It features 1 NO and 3 NC contacts (NC mirror certified) rated up to 10 A and 690 V AC, with connection via spring terminals. The clip-on front mounting ensures high reliability and durability. It is certified to multiple standards (IEC, UL, CSA, CCC, EAC) and is Green Premium compliant (RoHS/REACh).
