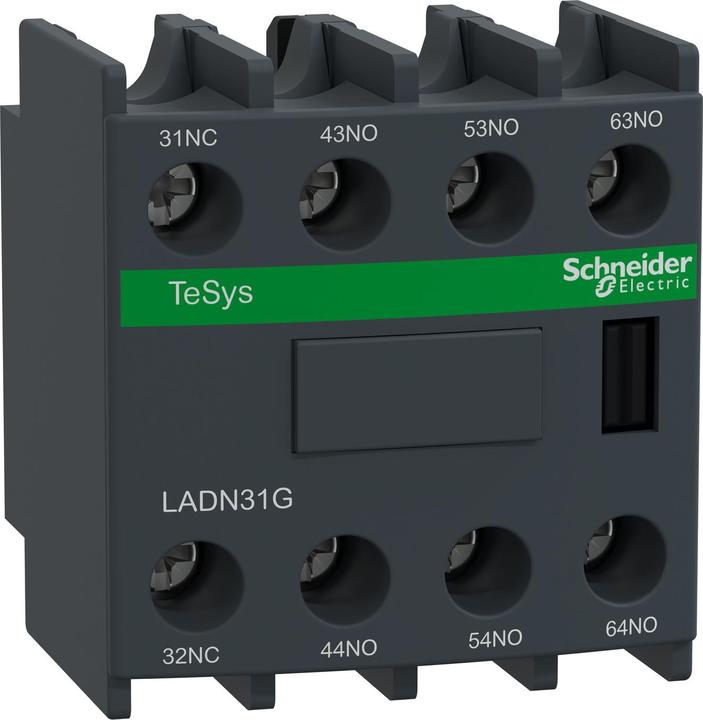

Schneider Electric Auxiliary Switch LADN31G

Manufacturer: Schneider Electric
Designation: Auxiliary Switch 3S, 1NO
Type: LADN31G
Number of contacts as normally closed: 3
Number of contacts as normally open: 1
Rated operational current Ie at AC-15, 230 V: 10 A
Type of electrical connection: Screw connection
Design: Plug-on
Mounting type: Front mounting

Additional details: TeSys D immediate auxiliary contact block, for 4-pole contactors LC1D, LC1DT (≤ 80A AC-1). It features 3 normally closed contacts and 1 normally open contact (NC mirror certified) up to 10A 690V AC, connection via screw terminals, with terminal referencing according to EN 50012. Clip-on front mounting ensures high reliability and durability. Certified according to multiple standards (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).
