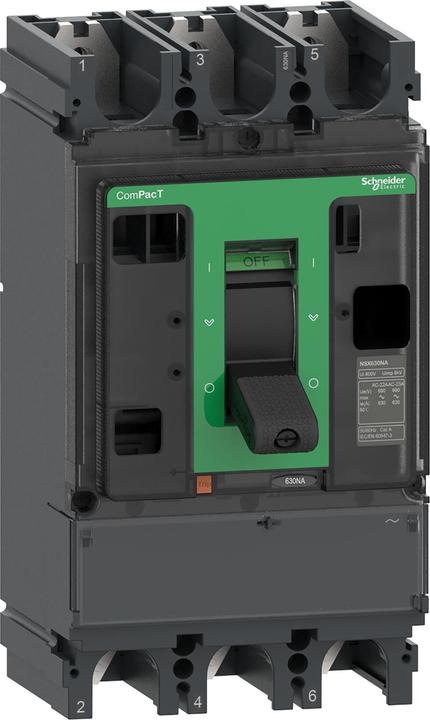

Schneider Electric Load Break Switch ComPacT C633630S

Manufacturer: Schneider Electric
Designation: Load Break Switch ComPacT NSX630NA, 3 Pole
Type: C633630S
Configured as Main Switch: Yes
Configured as Maintenance/Repair Switch: Yes
Configured as Safety Switch: No
Configured as Emergency Stop Device: No
Configured as Reversing Switch: No
Number of Switches: 1
Max Rated Operational Voltage Ue for AC: 690 V
Rated Operational Voltage: 690 V
Rated Continuous Current Iu: 630 A
Rated Continuous Current for AC-23, 400 V: 630 A
Rated Continuous Current for AC-21, 400 V: 630 A
Rated Short-Time Current Icw: 6 kA
Number of Poles: 3
Number of Auxiliary Contacts as Changeover: 5
Motor Drive Optional: Yes
Motor Drive Integrated: No
Voltage Release Optional: Yes
Device Type: Built-in Device Fixed Installation
Suitable for Floor Mounting: Yes
Suitable for Front Mounting 4-Hole: Yes
Suitable for Central Front Mounting: No
Suitable for Panel Installation: Yes
Suitable for Intermediate Installation: No
Color of Operating Element: Black
Design of Operating Element: Knob
Lockable: Yes
Connection Type Main Circuit: Screw Connection
Protection Class (IP), Front Side: IP30

This ComPacT NSX630NA is a complete 3-pole load break switch. It is used for controlling and isolating power distribution circuits. A preceding protection device is required for this purpose. The operating current is 630 A at 415 VAC 50/60 Hz for the usage categories AC22A and AC23A. The operating voltage is 690 VAC 50/60 Hz. It is equipped with a range of optional features and accessories that can be used with the ComPacT NSX circuit breakers. The dimensions for this 3-pole version are 140 mm x 255 mm x 110 mm. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications.
