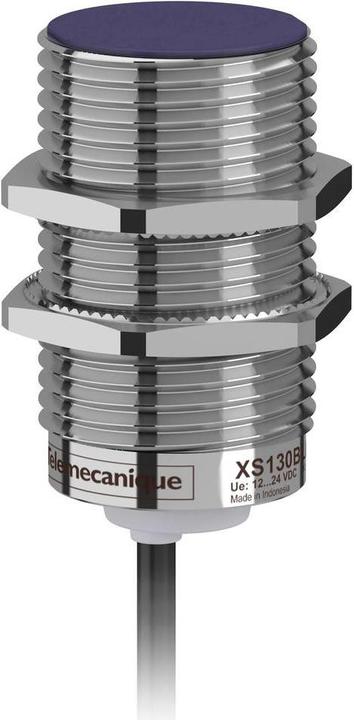

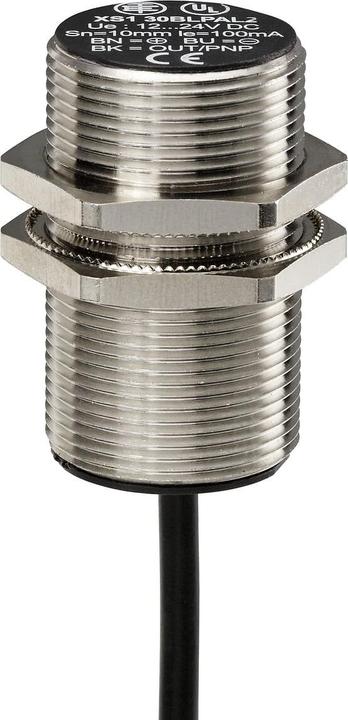

Telemechanique Sensors Inductive Proximity Switch XS130BLPAL2

Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M30, Sn 10 mm
Type: XS130BLPAL2
Length of the sensor: 51.3 mm
Diameter of the sensor: 30 mm
Mechanical installation condition for the sensor: flush
Switching distance: 10 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP/PNP
Type of electrical connection: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Type of actuation: metallic target
Type of interface: none
Type of interface for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at the safe output: 100 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Type of voltage: AC/DC
Switching frequency: 200 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields

Telemechanique Sensors Inductive Proximity Switch XS130BLPAL2: further details
OsiSense XS. XS1-Inductive proximity switches, L52 mm, brass, 2 m cable.
Dimensions M30 mm, output PNP, flush yes, function NO, switching distance mm 10.
Cylindrical metal housing. Format M12, M18, M30.
Connection 2 m cable, M8 connector, M12 connector, 3-pole.
Output PNP / NPN, NO / NC. Flush or non-flush installation.
Protection class IP 65 and IP 67.
Operating voltage 12-24 V DC, limit range 10-36 V.
EAN: 3389119002196.
