Mounting type: Panel mounting
Reset button: Turn release

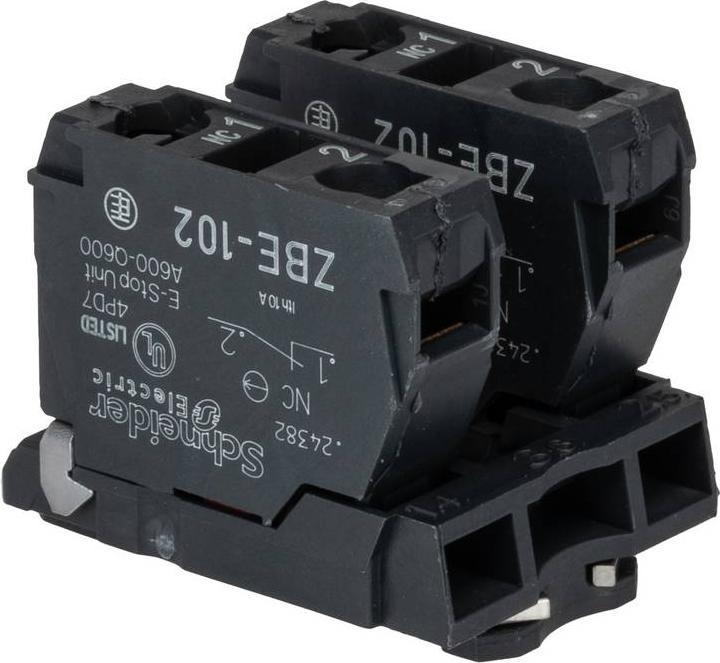

Contact configuration: 2 NC contacts
Cutout diameter: 22.5 mm
Operating current: 550 mA at 125 V DC, 6 A at 120 V AC
Number and position of contacts: 2P
Protection rating: IP66, IP67, IP68, IP69, IP69K
Actuation button: Latching
Supply voltage: 600 V AC/DC
Head shape: Mushroom
Product series: Harmony
Head diameter: 40 mm
Series: Harmony XB5

Emergency stop push buttons from the Harmony XB5 series. The XB5 series of plastic push buttons combines easy installation, flexibility, and robustness for most industrial applications. This is one of the most comprehensive series on the market. The modern, innovative, and ergonomic design allows for easy operation and enhances the appearance of all panels and machines. They also perform well in harsh environments. These units are available as complete items or individual components for customer assembly. The sealing performance is rated up to IP66, IP67, IP68, IP69, and IP69K, as well as Type 4X. The operating temperature range extends from -40 to +70 °C for outdoor applications. They comply with international standards, including marine certifications. Harmony XB5 push buttons offer the flexibility to switch from standard to surface mounting versions by simply changing a single letter in the product designation. Standard mounting products can be installed with or without a cutout in a 22 mm hole, thanks to the self-tapping alignment pin. Surface mounting products can be installed without a cutout in a 30 mm hole. This design provides the same actuation surfaces as standard mounting products and allows for ergonomic operation, even when wearing gloves. The XB5 can be used for various industrial applications, including energy infrastructure, food and beverage, metal, mining and minerals, or oil and gas.
