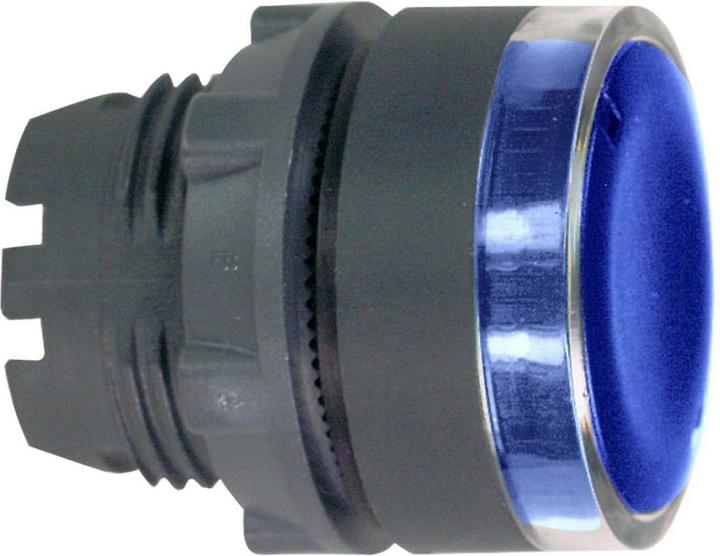

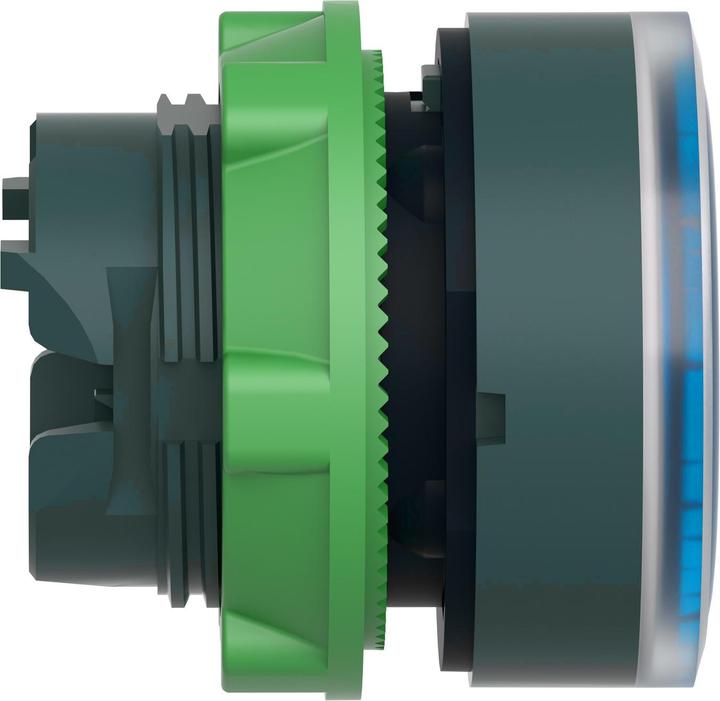

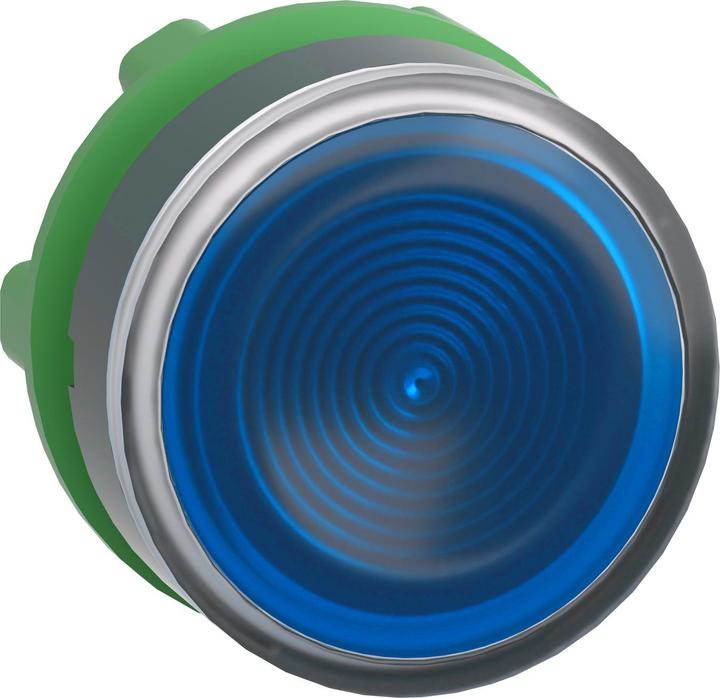

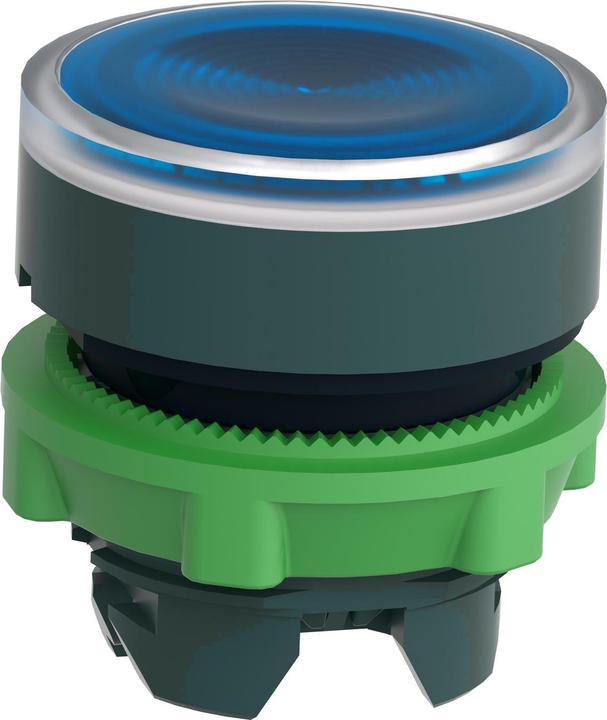

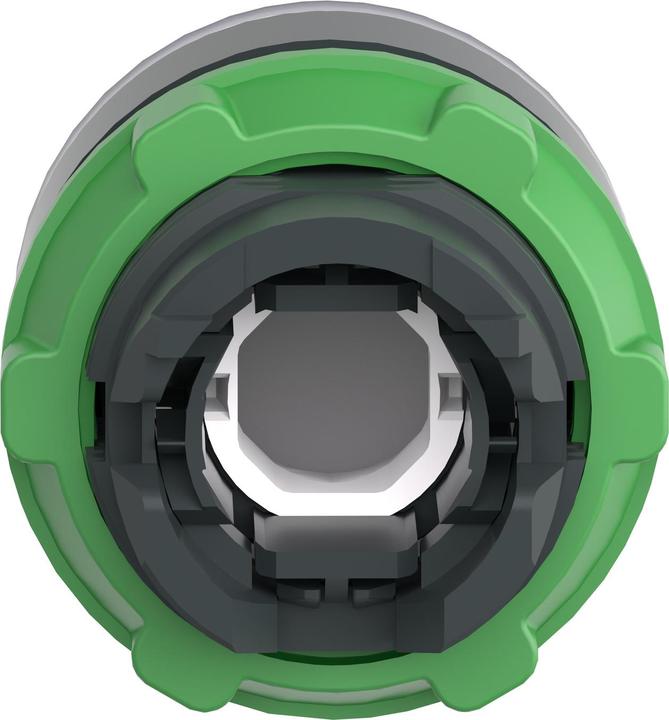

Schneider Electric Front Element Push Button ZB5AW363S

Manufacturer: Schneider Electric
Description: Front element push button without latching for LED module
Type: ZB5AW363S
Button color: blue
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Opening width: 0 mm
Opening height: 0 mm
Button shape: flat
Suitable for lighting: yes
With protective cover: no
Labeled: no
Latching switching function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Additional details:
Front element for Harmony ZB5 illuminated push button. Blue front, plastic bezel, unlabeled. This illuminated push button head for integrated LED provides a versatile interface for controlling your machines. Dimensions (WxHxD) 29x29x30 mm, mounting diameter 22 mm, weight 0.017 kg. The illuminated, clear color and the touch from the push element make it clearly visible from a distance, minimizing errors in machine control. Mechanical lifespan of 10,000,000 cycles. Round head shape, standard. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees Celsius. The modular plastic program with 22 mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. Certifications according to LROS, BV, CSA, RINA, GL, UL listed, DNV. Product standards according to EN/IEC 60947-1, JIS C 4520, GB 14048.5, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1.
