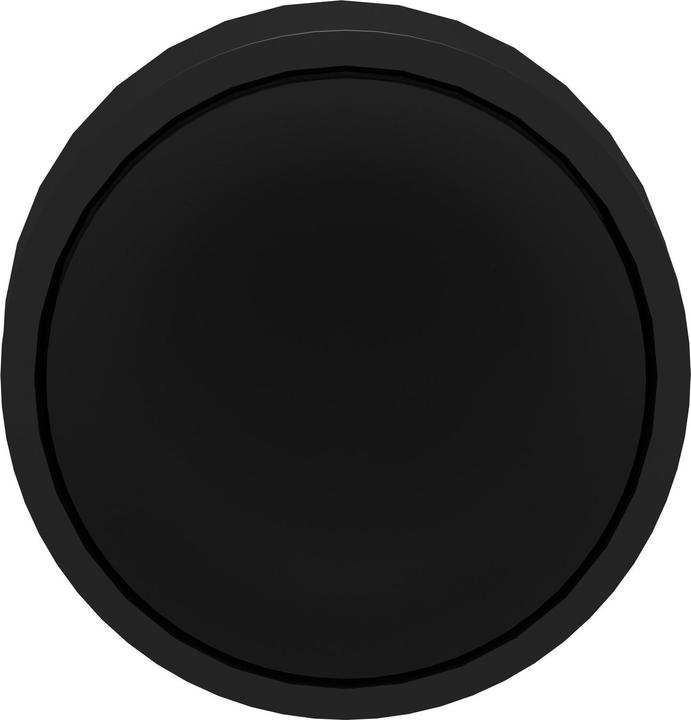

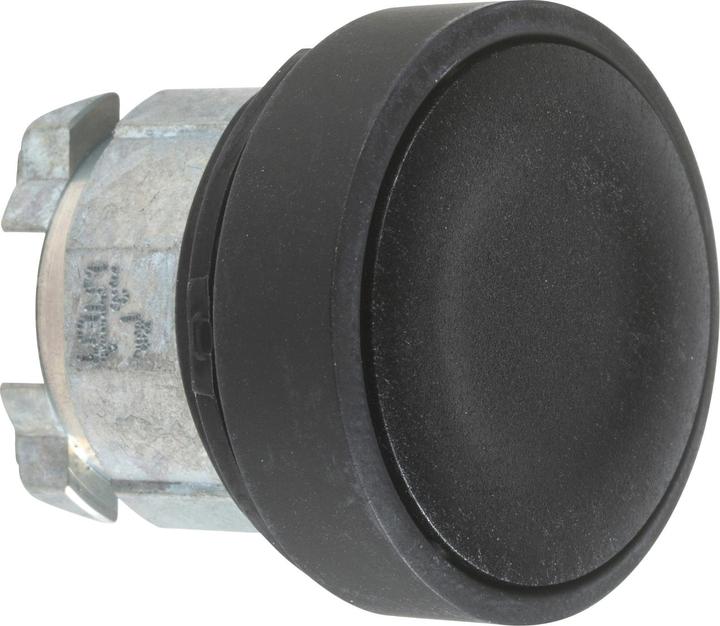

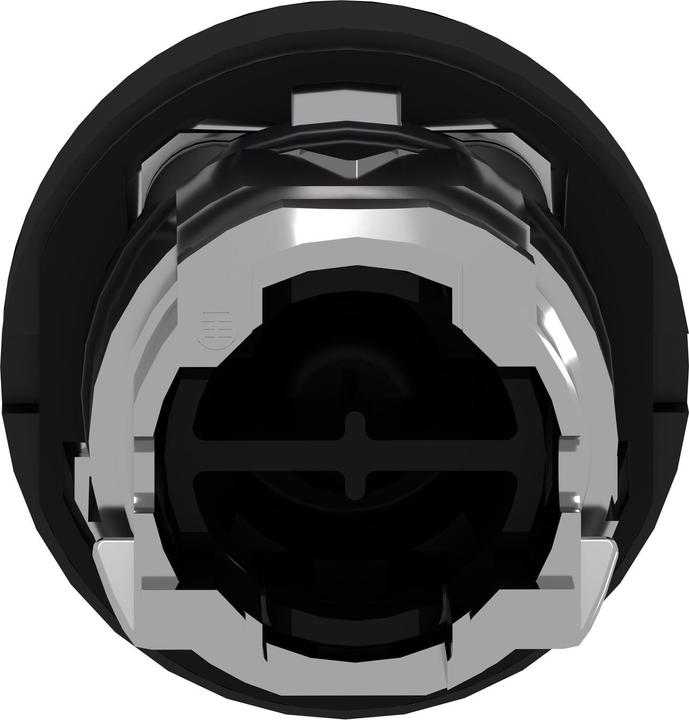

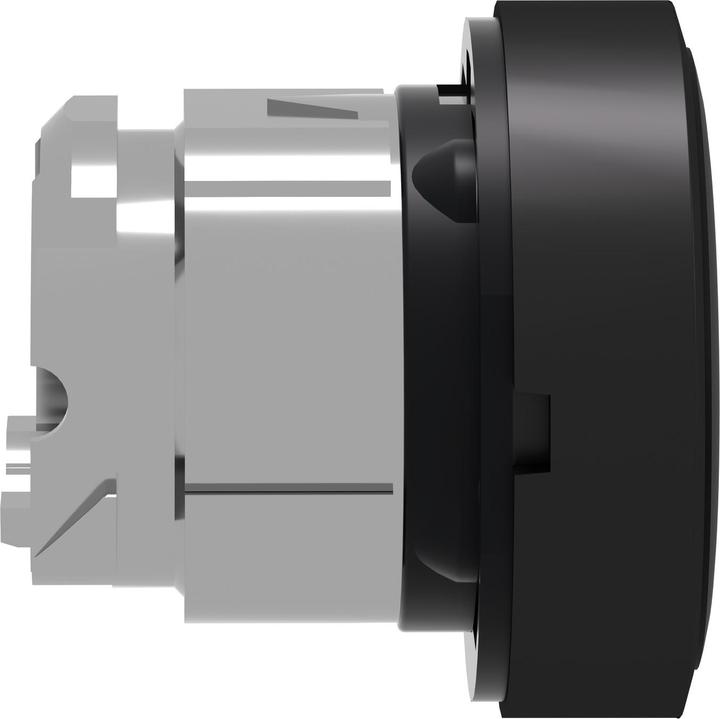

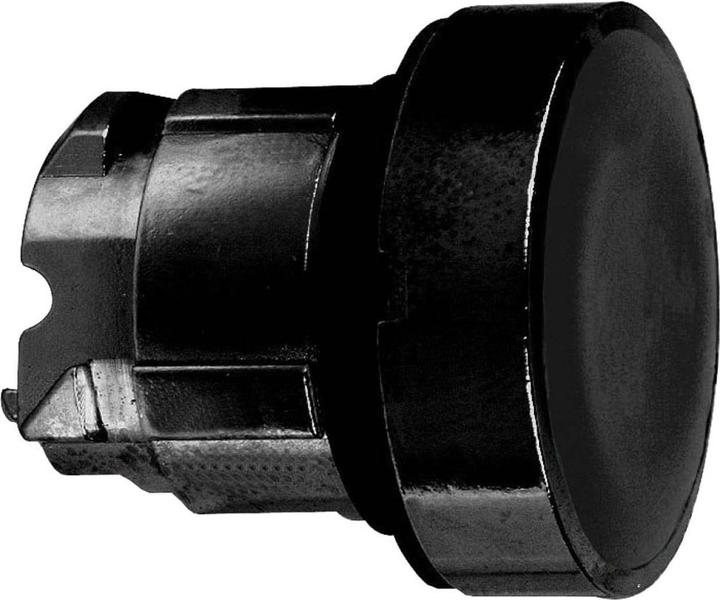

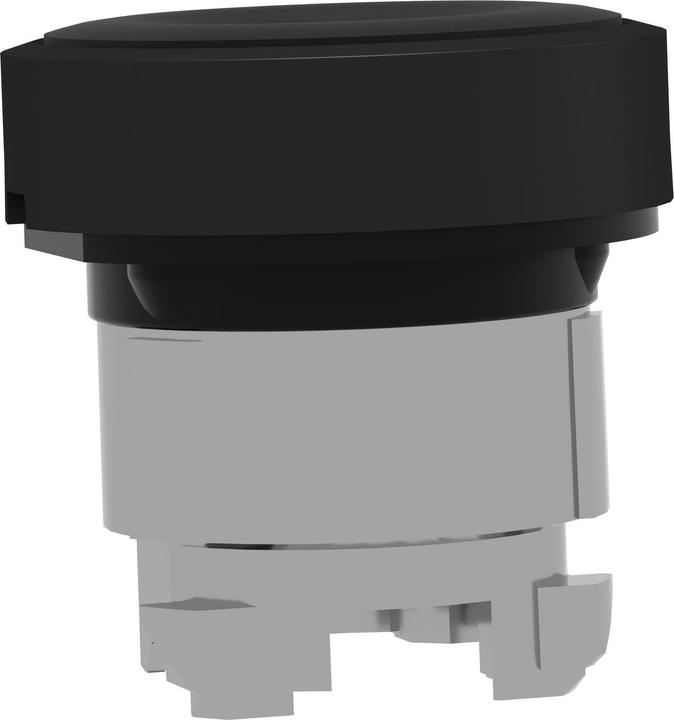

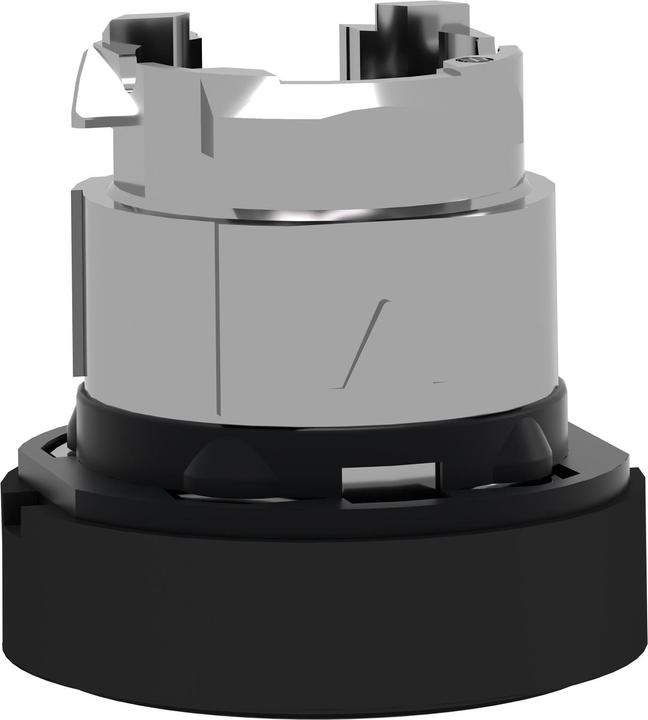

Schneider Electric Push Button ZB4BA27

Manufacturer: Schneider Electric
Description: Flat push button
Type: ZB4BA27
Button color: Black
Number of command points: 1
Lens shape: Round
Hole diameter: 22.5 mm
Button shape: Flat
Suitable for lighting: No
With protective cover: No
Labeled: No
Latching switching function: No
Momentary: Yes
With front ring: Yes
Material of front ring: Metal
Front ring color: Black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: Other

Additional details:
The Harmony XB4/ZB4 series made of metal offers a wide range of 22 mm and 30 mm command and signaling devices such as push buttons, indicator lights, and selector switches, including emergency stop buttons. Due to the modular design of the devices, all components can be obtained as individual elements, in assemblies, or as complete devices. Thanks to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This ergonomic push button front element in black is unlabeled and momentary. The front element is mounted in a 22 mm hole. The fastening is done with a shock-resistant connection screw. To create a complete device, this front element can be combined with a mounting flange as well as a variety of different auxiliary switches and accessories. In addition to high vibration resistance and a very long lifespan, the devices of the XB4/ZB4 series also feature an extremely high possible ambient temperature. Due to the variety of existing product standards and certifications, they are suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy that support your sustainability goals.
