Series: Harmony XPE
Housing Material: Metal
Rated AC Voltage: 240V
Rated DC Voltage: 250V
Rated Current: 270 mA @ 250 V DC, 3 A @ 240 V AC
Switch Operating Conditions: Industrial Standard
IP Protection Class: IP 66

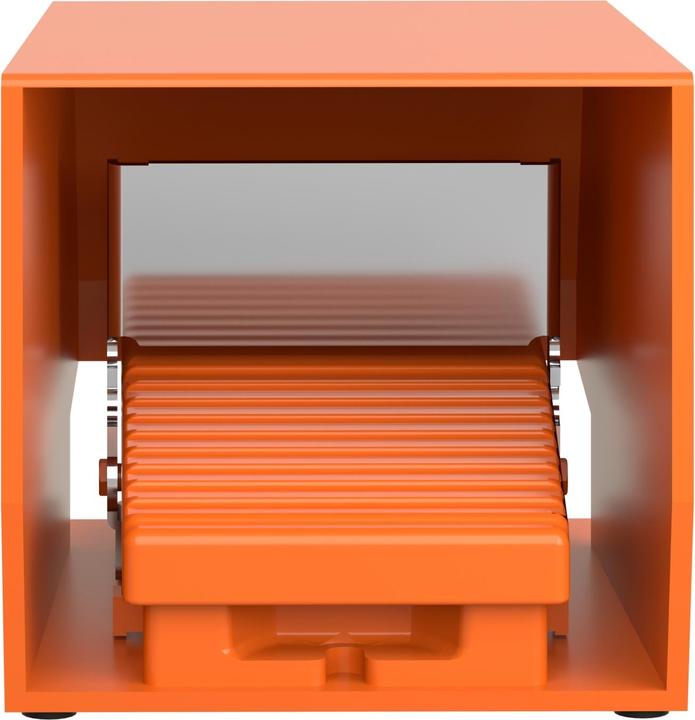

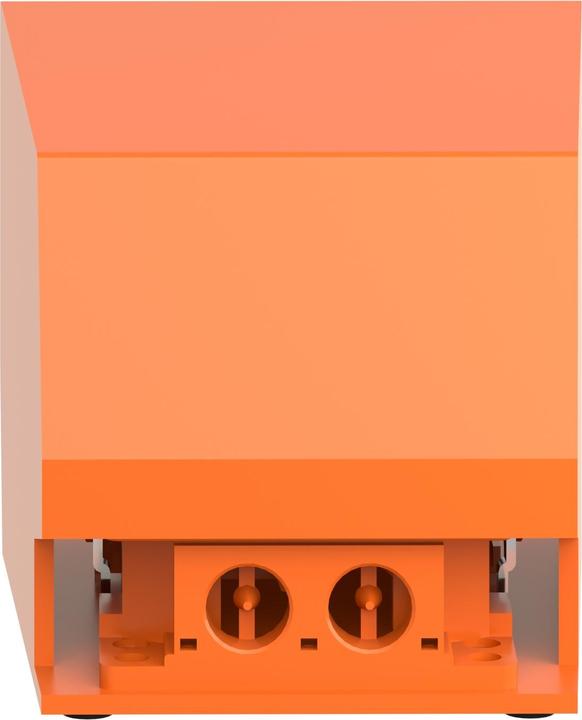

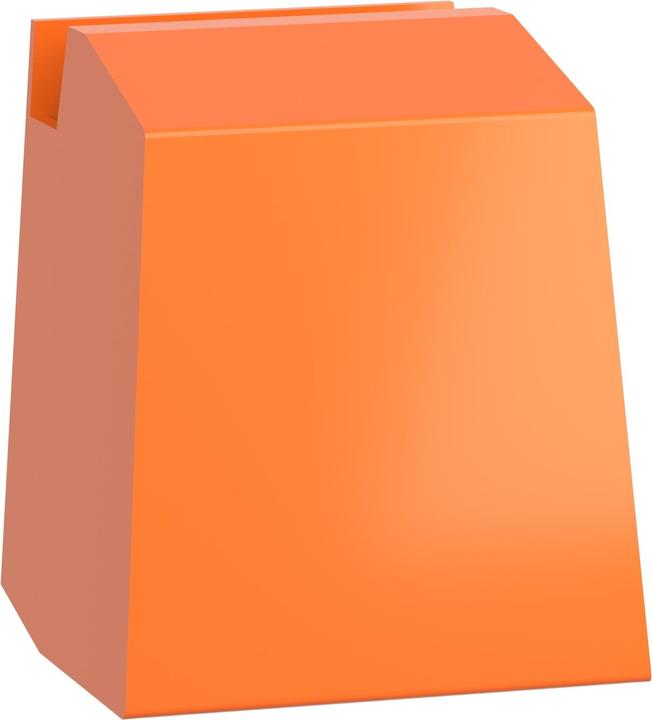

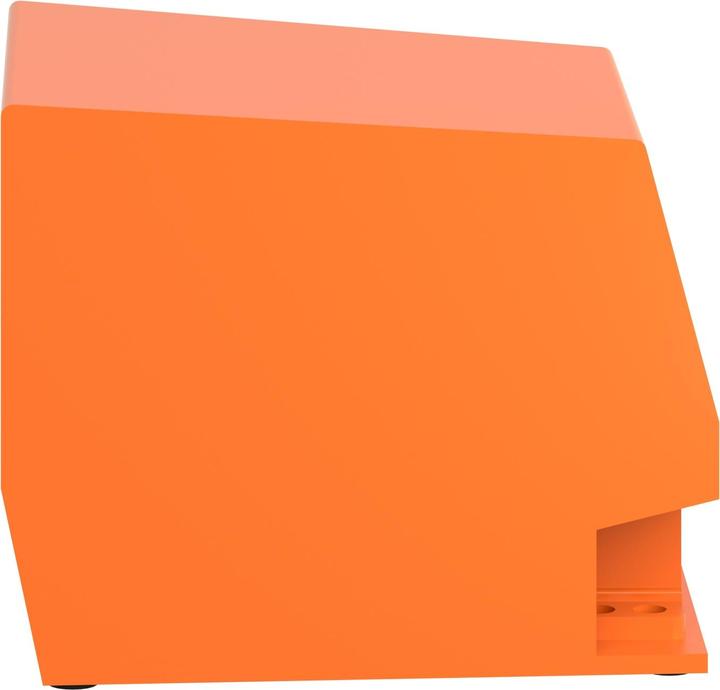

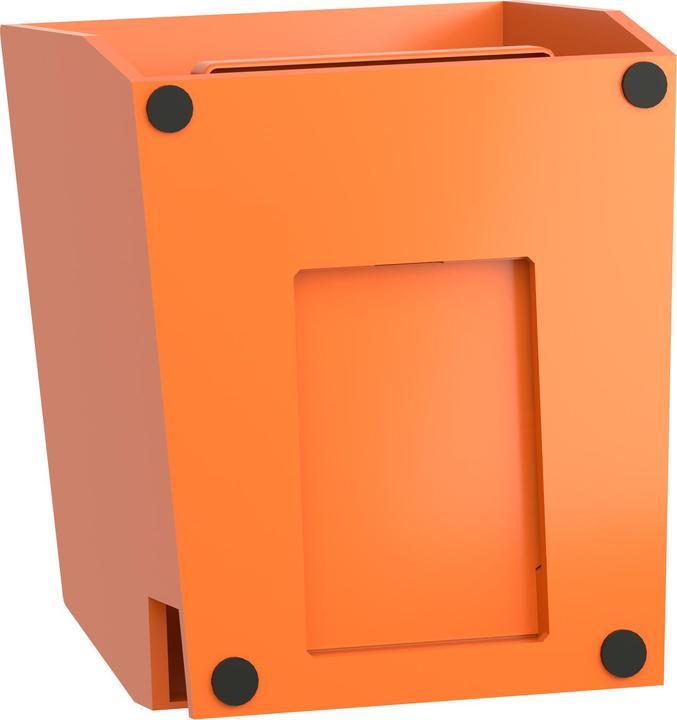

CSA XPE Metal Foot Switch. Foot switch with a metal housing, available with or without a protective cover. Versions with a protective cover are highly recommended for high-risk areas where unintentional machine activation can occur due to human interaction or falling objects. Foot switches with 2-stage contacts are ideal for machines with two speeds. The first stage (6 mm actuation travel) activates a set of normally open and normally closed contacts, before the second stage, after the full actuation travel (12 mm), activates the other normally open and normally closed contacts. Versions with a trigger allow for locking the pedal in a resting position and can only be released by a direct action. Available with or without a triggering mechanism in 1- or 2-stage configurations. The large pedal surface ensures good foot stability and high operating comfort. The high and wide protective cover fits large safety shoes. Can be mounted flush to the floor or on a pedestal for added stability. Blue IP66 metal housing.
