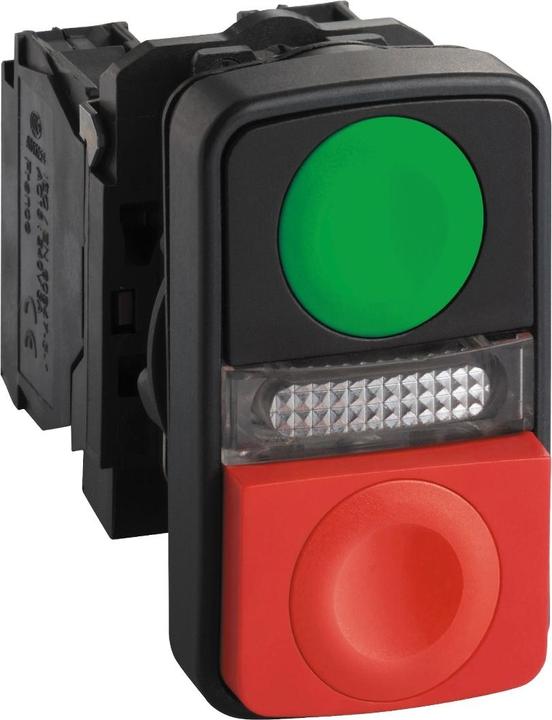

Schneider Electric Illuminated Double Push Button XB5AW73731G5

Manufacturer: Schneider Electric
Description: Illuminated Double Push Button 1S+1Ö 120V
Type: XB5AW73731G5
Number of Command Points: 2
Button Shape: High
Button Color: Red/Green
Lens Shape: Rectangular
Hole Diameter: 22.5 mm
Suitable for Lighting: Yes
Latch Function: No
Momentary: Yes
Lamp Supply Voltage: 120 V
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Rating (IP): IP66
Protection Rating (NEMA): 4X

The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop buttons. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements, and can optionally be adapted for 30mm mounting size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. Installed in a 22mm hole, the device connects via screw terminals on the back of the product. This double push button features 1 normally closed contact and 1 normally open contact. The supply voltage is 120V AC. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
