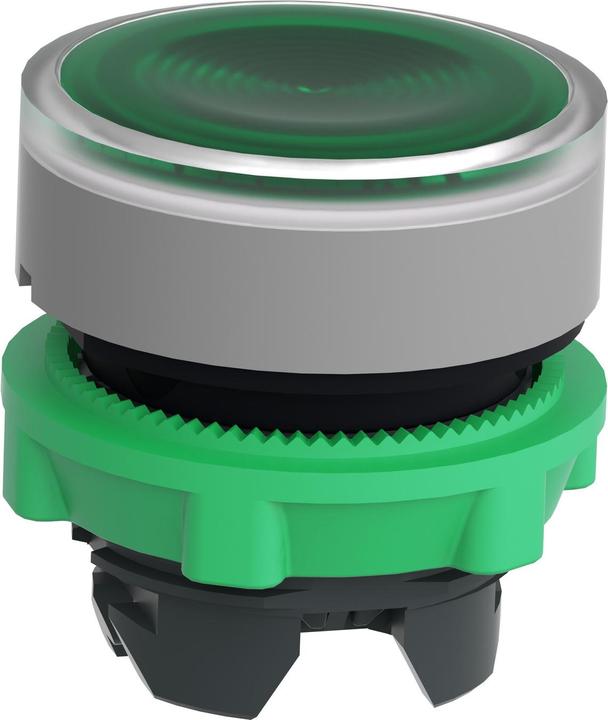

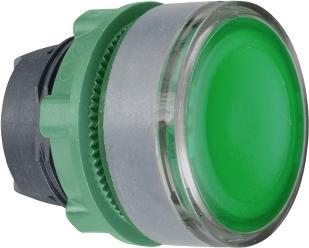

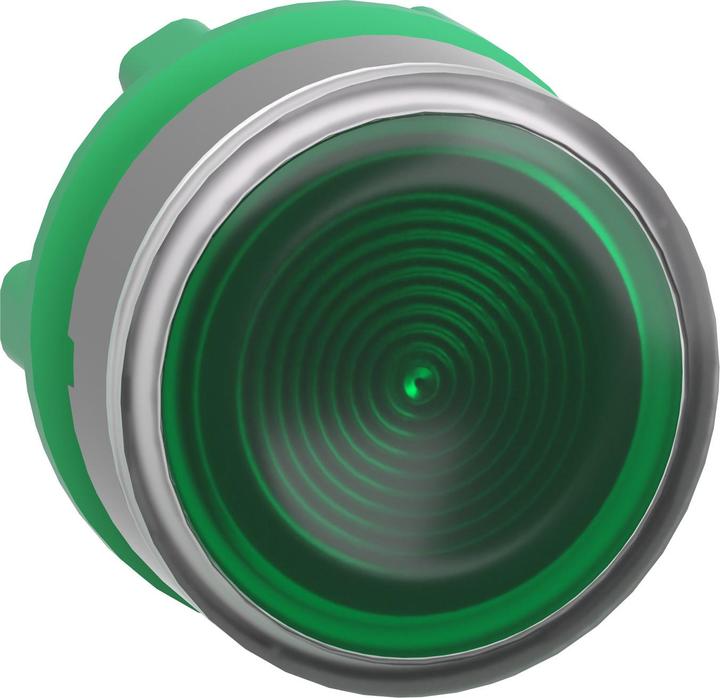

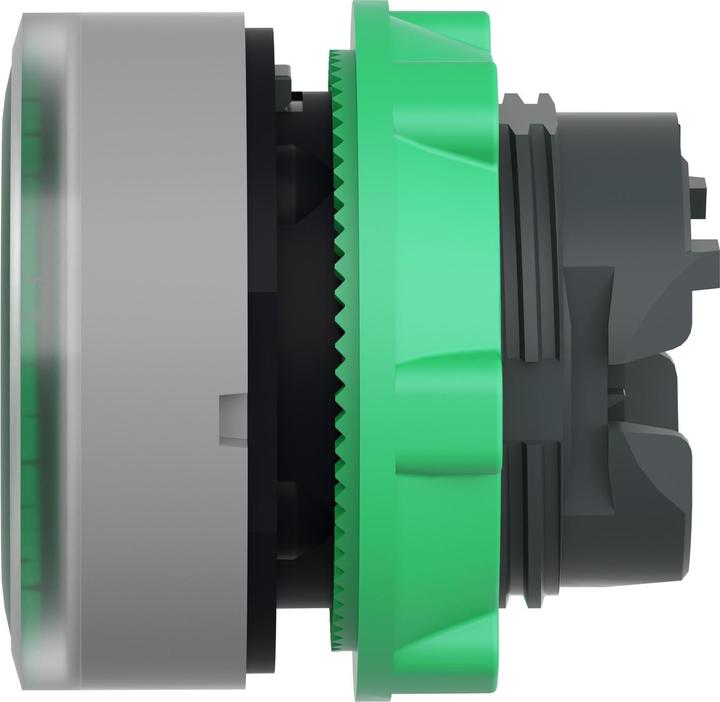

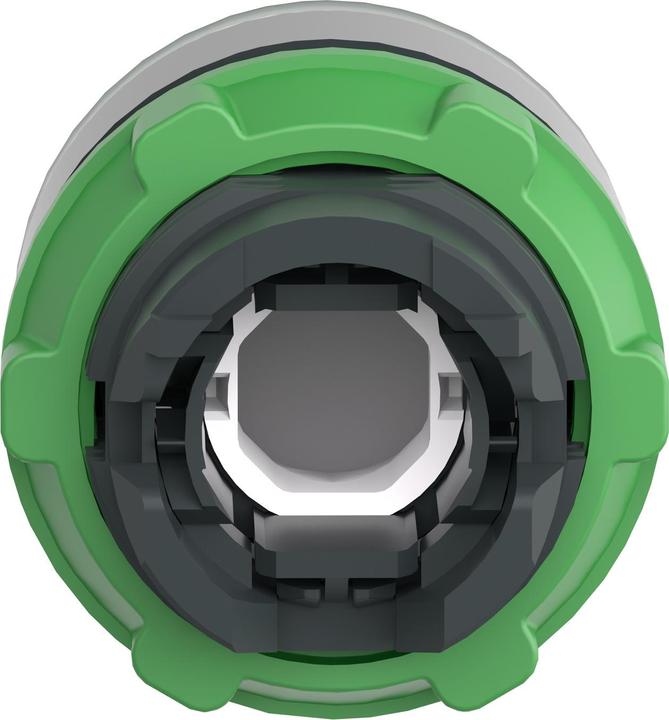

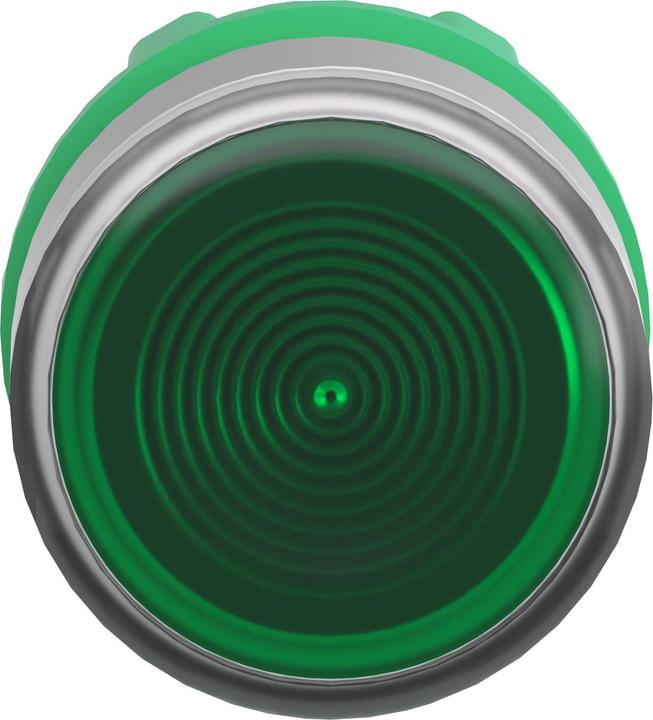

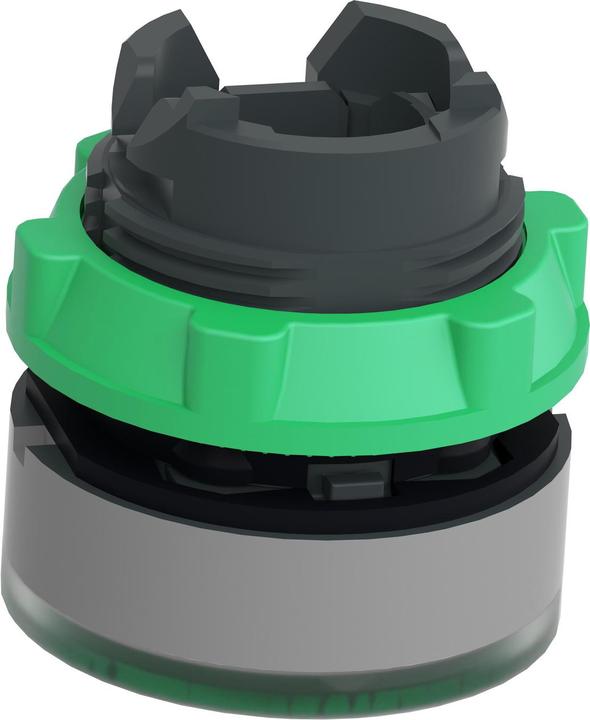

Schneider Electric Illuminated Push Button ZB5AW333SC0

Manufacturer: Schneider Electric
Description: Green illuminated push button, 22mm, in gray
Type: ZB5AW333SC0
Button Color: Green
Number of Command Positions: 1
Lens Shape: Round
Hole Diameter: 22.5 mm
Button Shape: Flat
Suitable for Lighting: Yes
With Protective Cover: No
Labeled: No
Latching Switching Function: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP), front side: IP66
Protection Class (NEMA), front side: Other

Schneider Electric Illuminated Push Button ZB5AW333SC0: Additional Details
The Harmony XB5/ZB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and they can alternatively be used for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in green is compatible with a universal LED with various supply voltages. The installation of this product is done in a 22mm hole. The outer ring of the front element is coated in light gray. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
