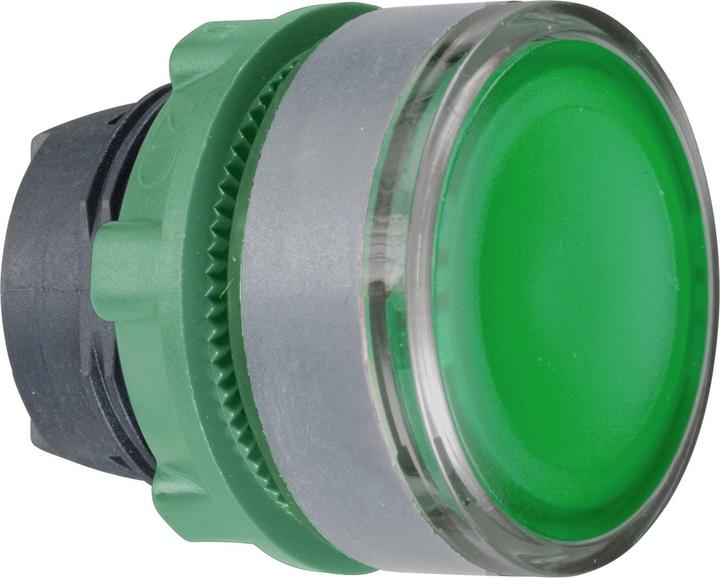

Schneider Electric Illuminated push-button, front, plastic, ZB5AH033C0

Price includes VAT, free shipping
Minimum order surcharge

Schneider Electric Illuminated pushbutton ZB5AH033C0 Manufacturer :Schneider Electric Designation :Illuminated pushbutton green, 22mm, in grey Type :ZB5AH033C0 Colour of button :green Number of command
positions :1 Design of lens :round Hole diameter :22.5 mm Design of button :flat Suitable for lighting :yes With protective cover :no Labelling :no Switching function latching :yes Keying :no With front ring :yes Material of front ring :plastic Colour of front ring :black Protection class (IP), front side :IP66 Protection class (NEMA), front side :other Schneider Electric Illuminated pushbutton ZB5AH033C0: further details Illuminated pushbutton made of plastic as front element and 22mm mounting dimension, Harmony XB5 series. Colour of the illuminated pushbutton is green. Actuation function is with detent. The colour of the outer ring is grey. The modular Harmony series with 22mm mounting dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520, EAN: 3606489766580.

Key specifications

Item number
33203520

General information

Manufacturer
Category
Buttons + Switches
Manufacturer no.
ZB5AH033C0
Release date
6/29/2023

Colour

Colour group
Grey

Package dimensions

Weight
17 g
