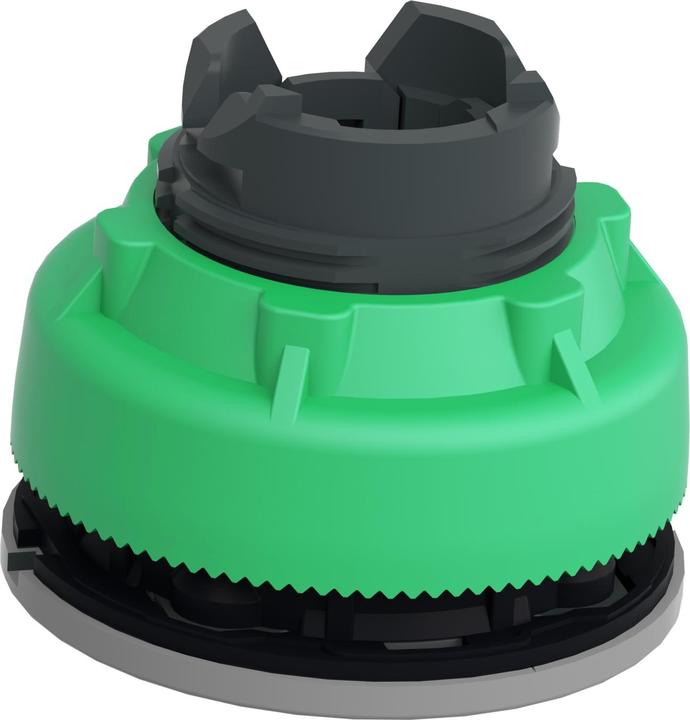

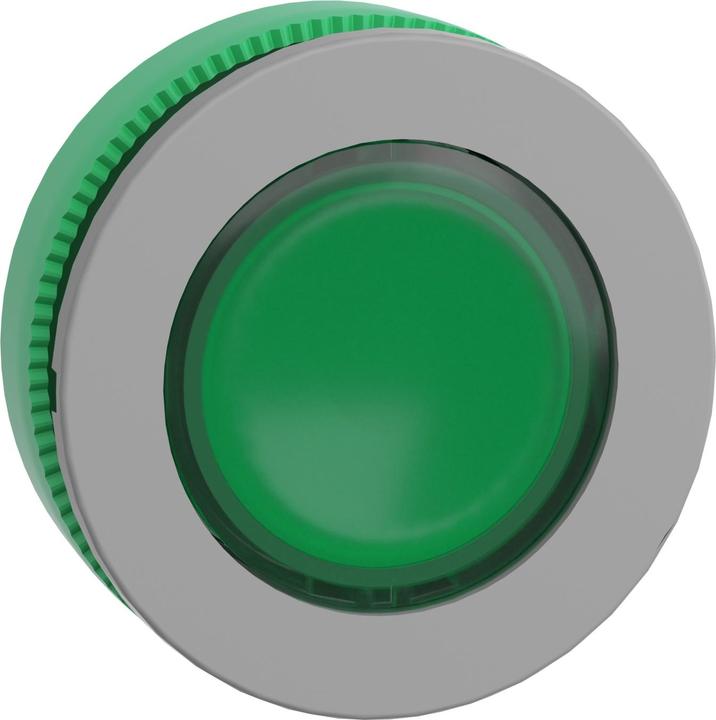

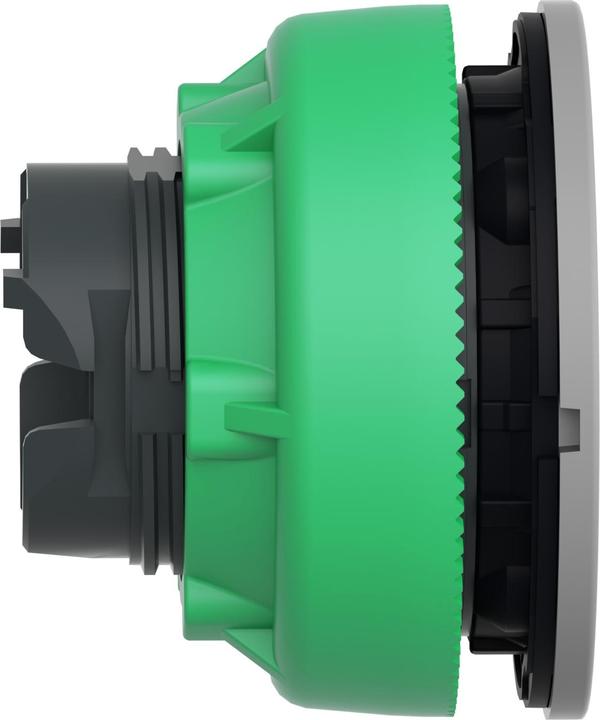

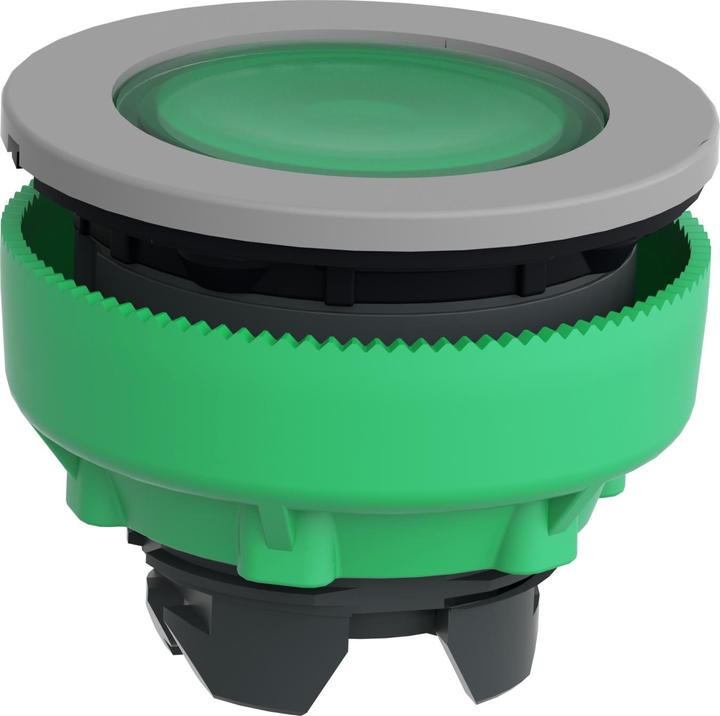

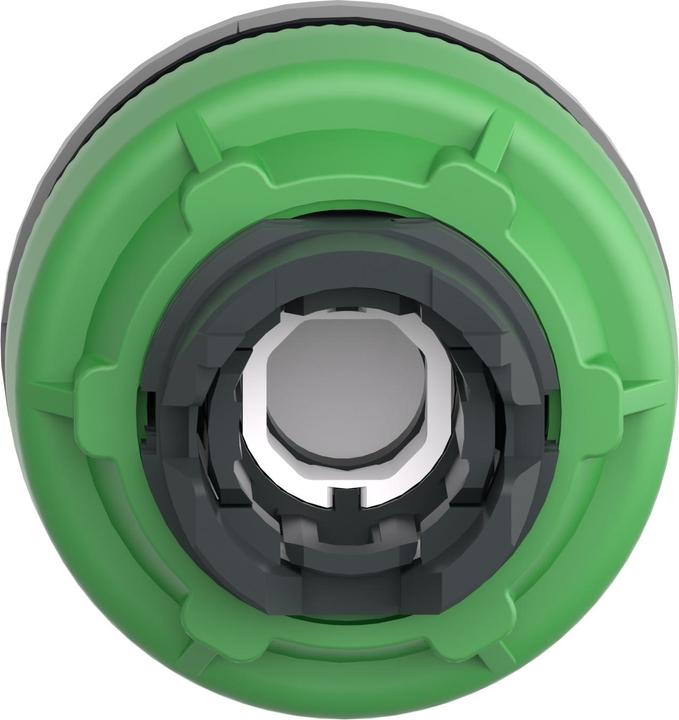

Schneider Electric illuminated pushbutton ZB5FW333C0

Manufacturer: Schneider Electric
Designation: Illuminated pushbutton green, 30mm, in grey
Type: ZB5FW333C0
Colour of button: Green
Number of command positions: 1
Design of lens: Round
Hole diameter: 31 mm
Design of button: Flat
Suitable for lighting: Yes
With protective cover: No
Labelling: No
Switching function latching: No
Keying: Yes
With front ring: Yes
Material of front ring: Plastic
Colour of front ring: Black
Protection class (IP), front: IP66
Protection class (NEMA), front: 4X

Further details: Illuminated pushbutton made of plastic as front element with a 30mm mounting dimension, Harmony XB5F series for flat mounting. The colour of the illuminated pushbutton is green. Actuation function is without detent. The colour of the outer ring is grey. The modular Harmony series with 30mm mounting dimension combines easy installation, efficiency, modern design, and flexibility with high robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping). EAN: 3606489754631.
