Button color: Yellow
Cutout diameter: 16 mm
Series: Harmony XB6
Button actuation: Spring return
Contact arrangement: Double-pole switch - 2 NO/2 NC
Button type: Square
Illuminated: Yes
Protection class: IP65
Max. AC voltage: 250 V
Max. DC voltage: 110 V
Illumination voltage: 12 to 24 V
Mounting type: Panel mount
Max. current: 1 A

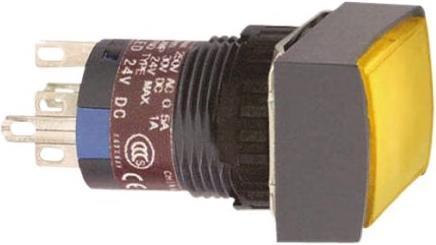

Illuminated push buttons with a flat square head and spring return feature an integrated LED. The flush square head contains a contact block with 2 normally open and 2 normally closed contacts at 24 Vdc and offers protection class IP65.
