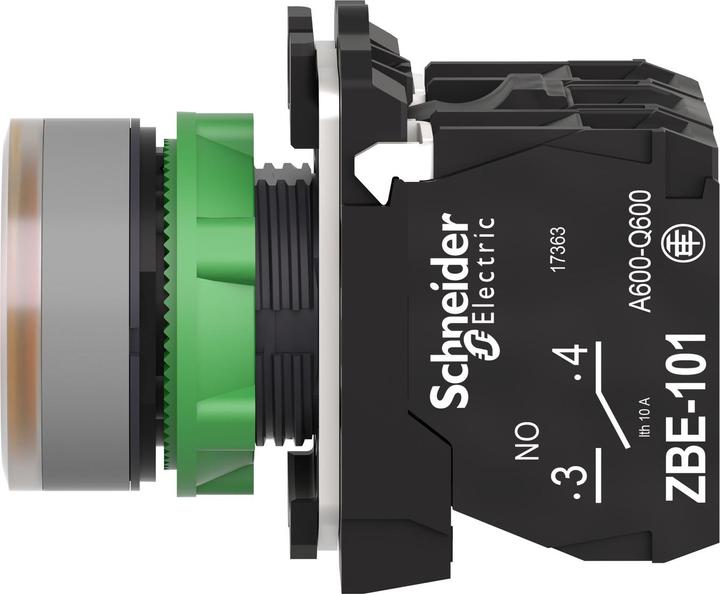

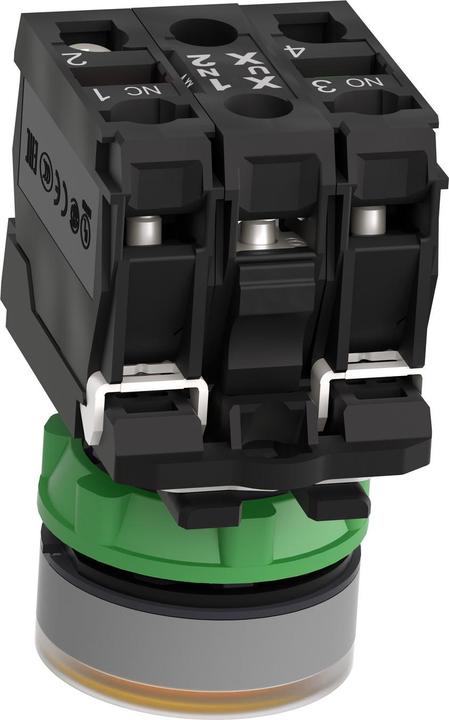

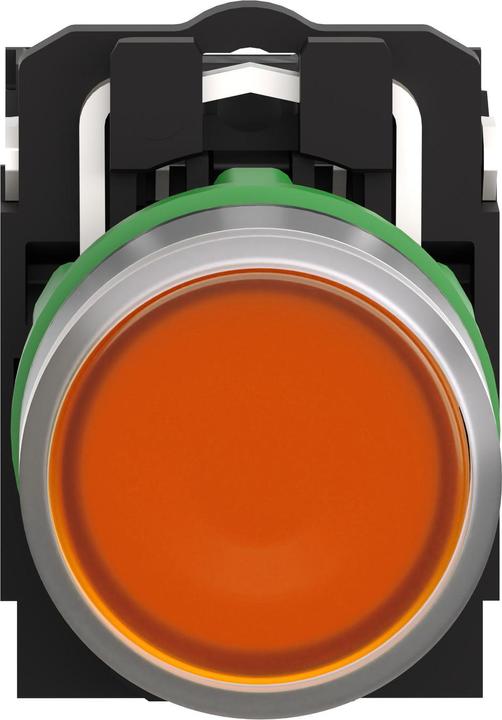

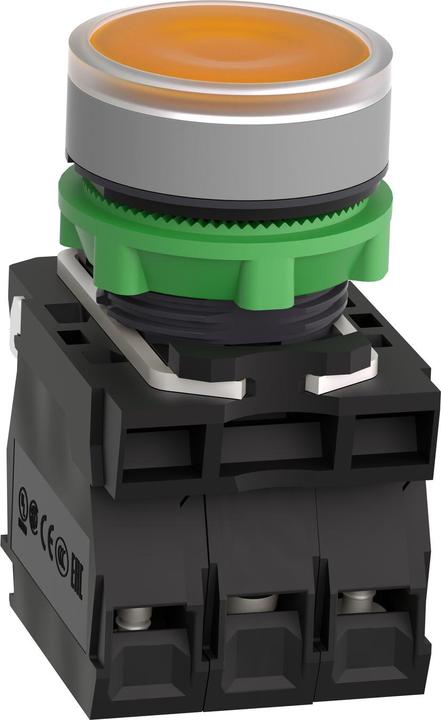

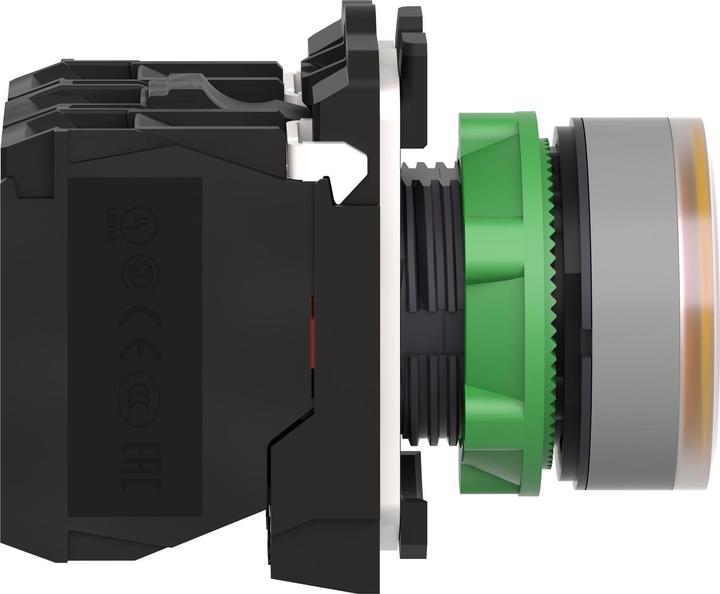

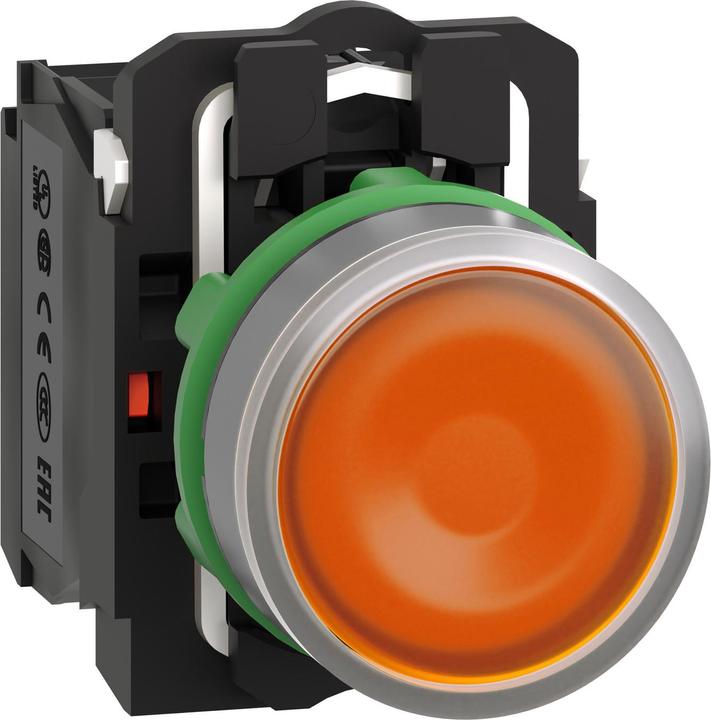

Schneider Electric Illuminated Push Button XB5AW35B5C0

Manufacturer: Schneider Electric
Description: Illuminated push button, 22mm, 24V, 1NO+1NC
Type: XB5AW35B5C0
Number of command points: 1
Button shape: flat
Button color: orange
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 24 V
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): other

Schneider Electric Illuminated Push Button XB5AW35B5C0: additional details
Illuminated selector switch made of plastic as a complete device with a 22mm installation size, Harmony XB5 series. The color of the illuminated selector switch is orange. For 24V AC/DC. The color of the outer ring is gray. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications listed by DNV, GL, UL, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489760137.
