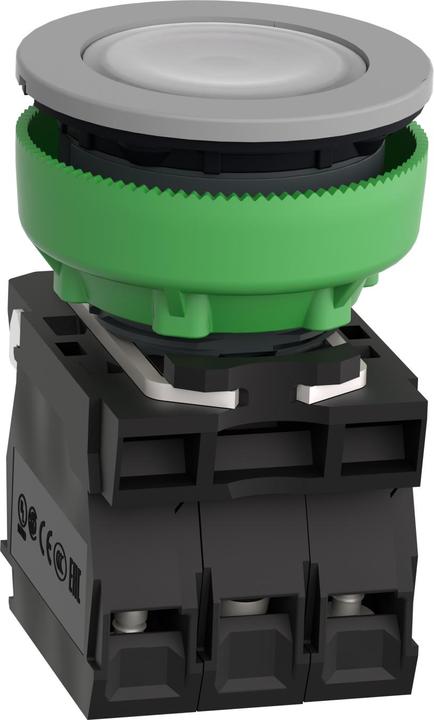

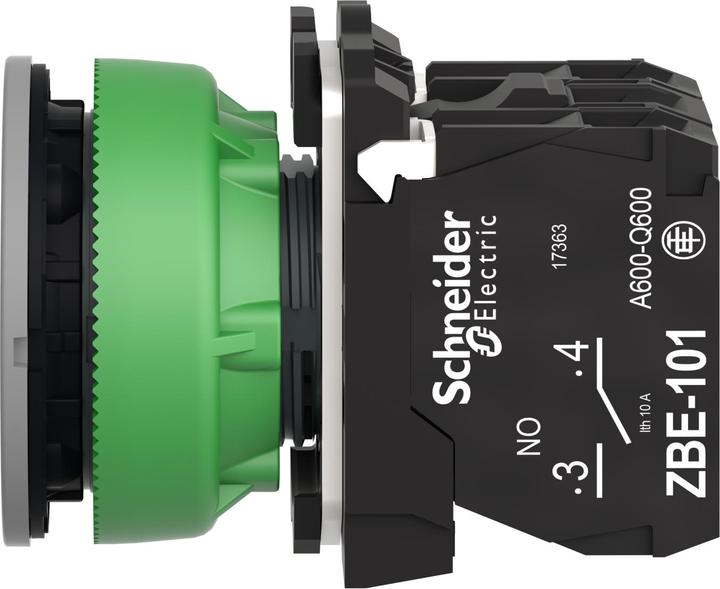

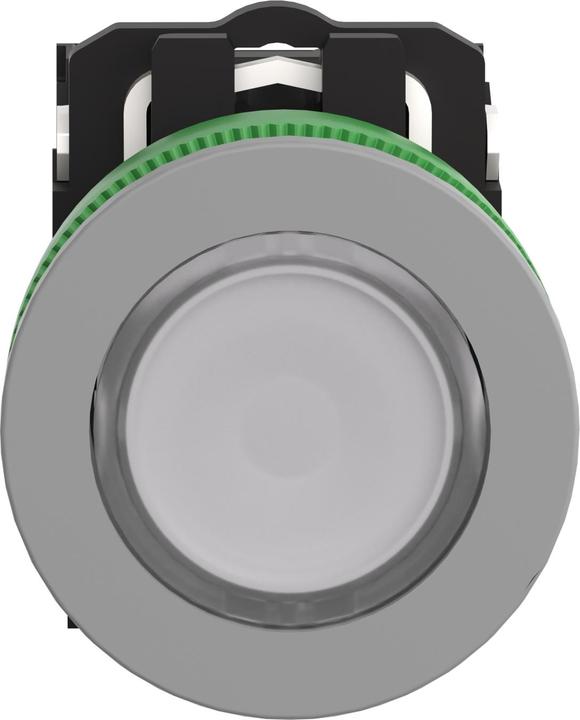

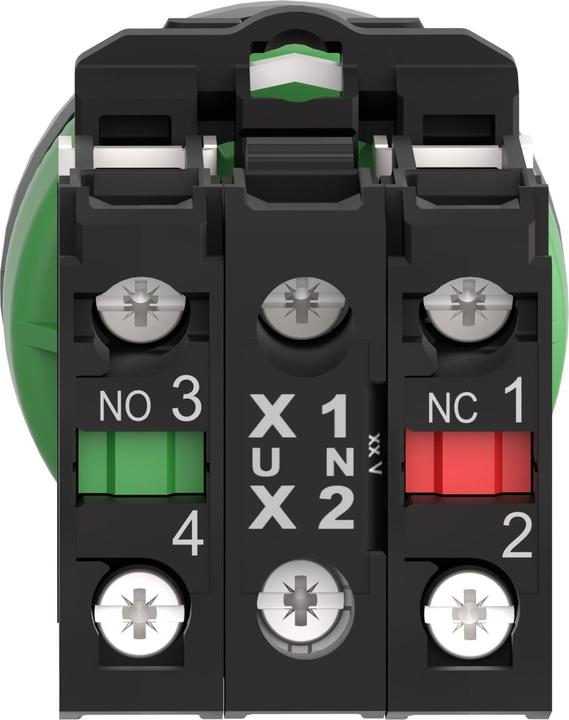

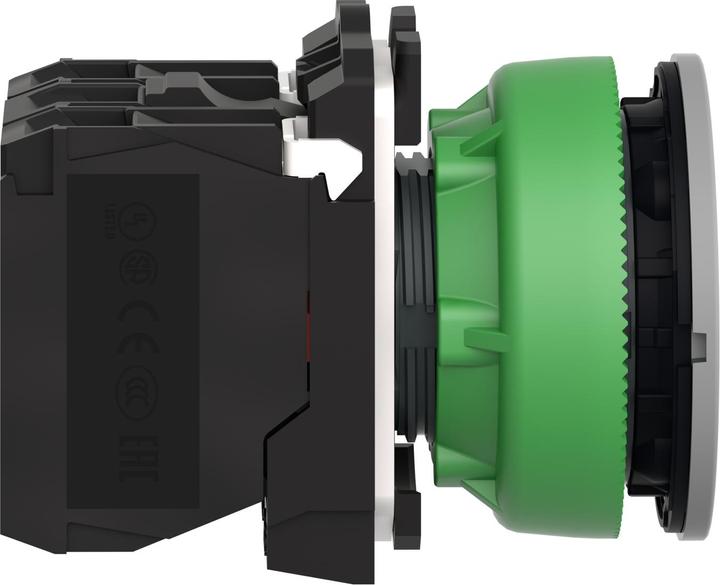

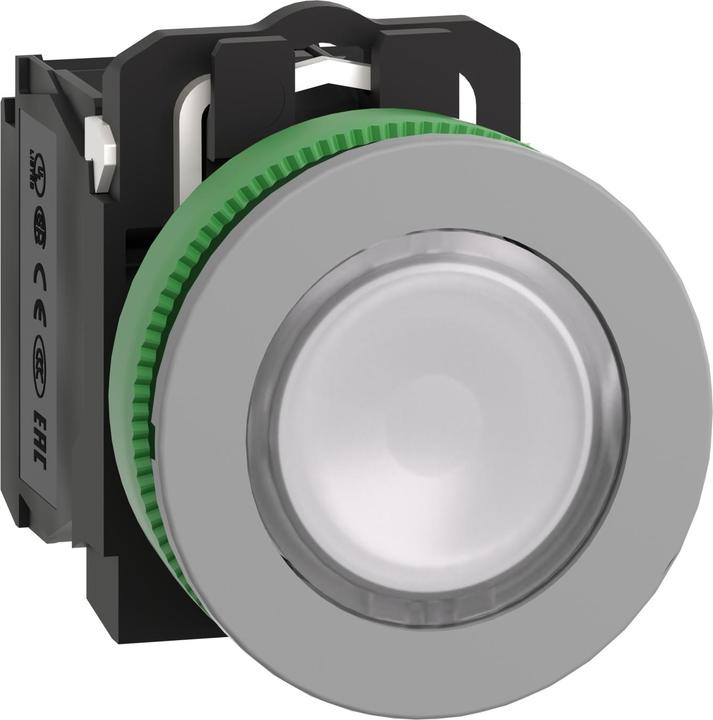

Schneider Electric Illuminated pushbutton, compl., plastic, XB5FW31B5C0

Currently out of stock
Free shipping starting at 30,–

Product details

Schneider Electric Illuminated pushbutton XB5FW31B5C0 Manufacturer :Schneider Electric Designation :Illuminated pushbutton ws,30mm,24V,1S+1Ö Type :XB5FW31B5C0 Number of command positions :1 Design of button :flat Colour of button :white Lens shape :round Hole diameter :30.5 mm Suitable for lighting :yes Switching function latching :no Keying :yes Lamp supply voltage :24 V Number of contacts as NO :1 Number of contacts as NC :1 Electrical connection type :Screw connection With front ring :yes Material of front ring :Plastic Colour of front ring :Black Protection class (IP) :IP66 Protection class (NEMA) :4X Schneider Electric Illuminated pushbutton switch XB5FW31B5C0: Further details Illuminated pushbutton switch made of plastic as a complete unit and 30mm mounting dimension, Harmony XB5F series for flat mounting. Colour of the illuminated selector switch is white. For 24V AC/DC. The colour of the outer ring is grey. The modular Harmony series with 30mm mounting dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520, EAN: 3606489761400.

Key specifications

Pushbutton + switch type
Button
Colour
White
Item number
33203795

General information

Manufacturer
Schneider Electric
Category
Buttons + Switches
Manufacturer no.
XB5FW31B5C0
Release date
17.5.2023

Colour

Colour
White

Pushbutton + Switch Properties

Pushbutton + switch type
Button
LED colour
White

shift position

rank
Push button

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Smart home features

Smart Home
Not compatible

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Complete setIlluminated pushbutton
