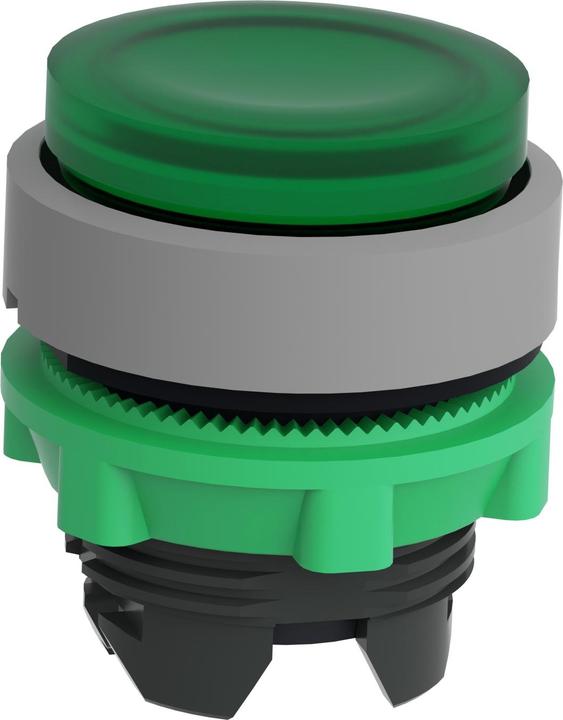

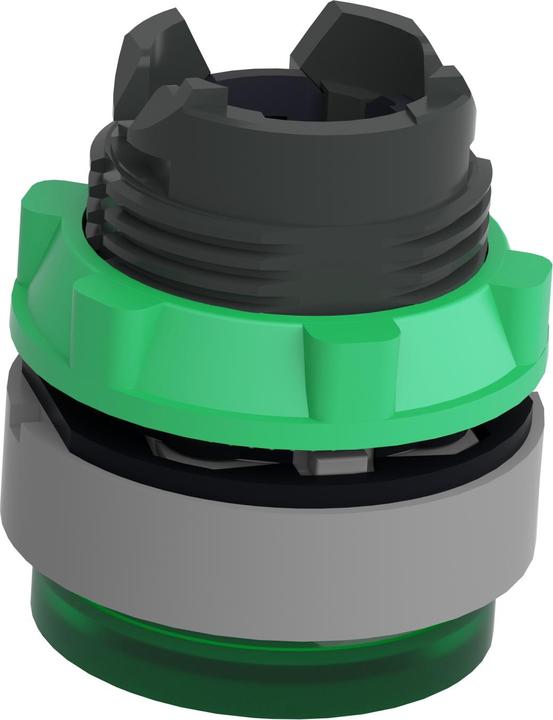

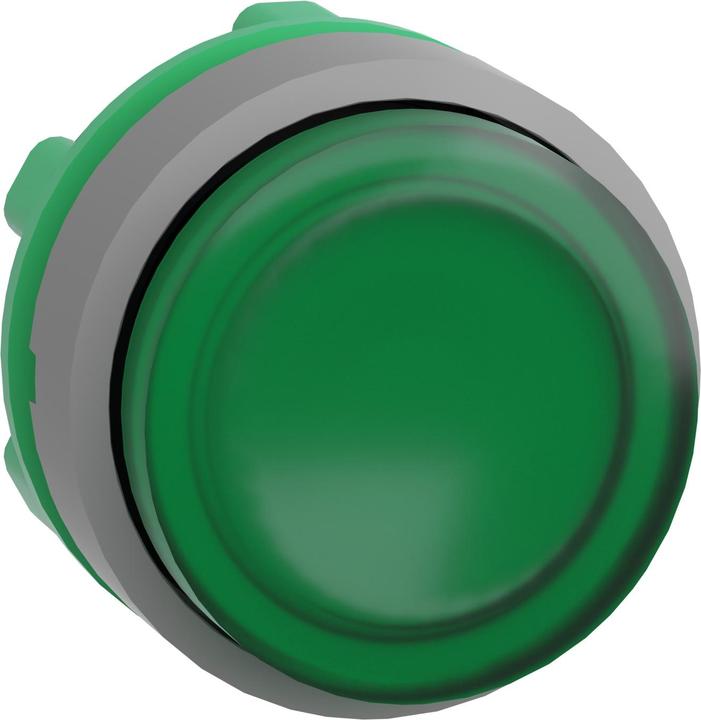

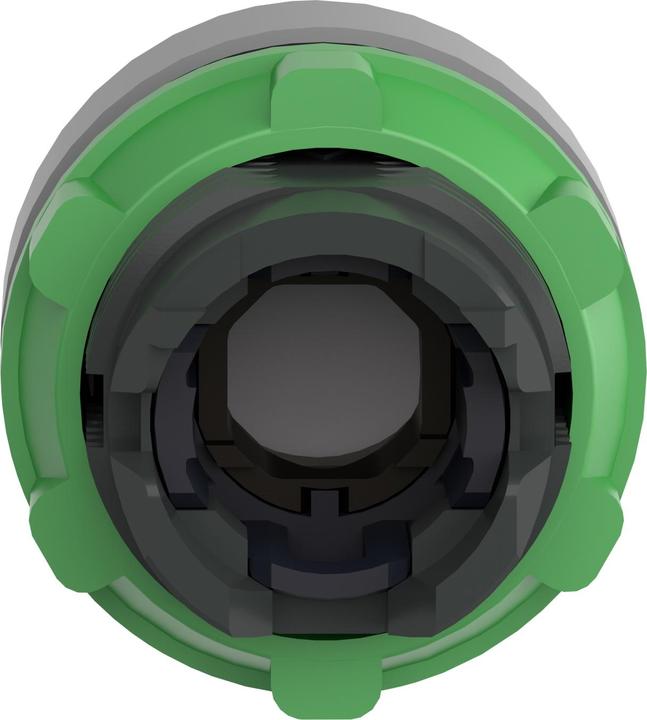

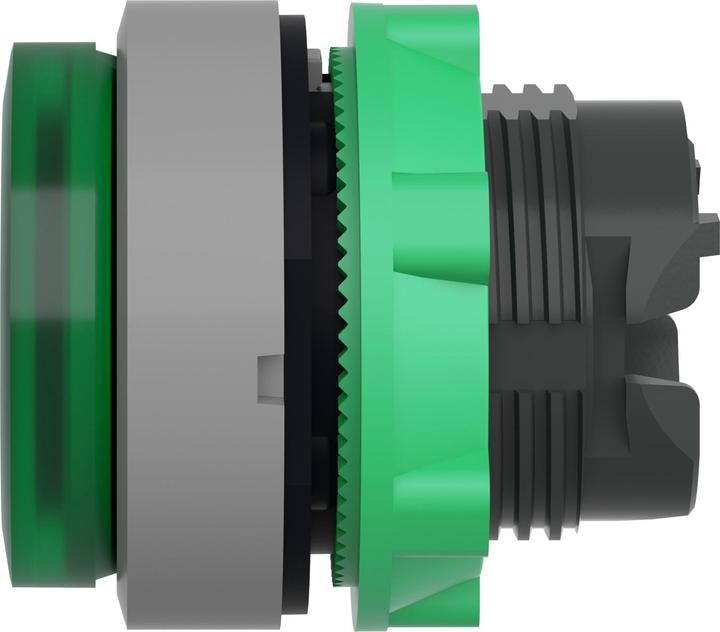

Schneider Electric Illuminated Push Button ZB5AH33C0

Manufacturer: Schneider Electric
Description: Green illuminated push button, 22mm, in gray
Type: ZB5AH33C0
Button Color: Green
Number of Command Positions: 1
Lens Shape: Round
Hole Diameter: 22.5 mm
Button Shape: High
Suitable for Lighting: Yes
With Protective Cover: No
Labeled: No
Latch Switching Function: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP), Front Side: IP66
Protection Class (NEMA), Front Side: Other

Additional Details:
Illuminated push button made of plastic as a front element with a 22mm installation size, series Harmony XB5. The color of the illuminated push button is green and protruding. The actuation function has a latching feature. The color of the outer ring is gray. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
