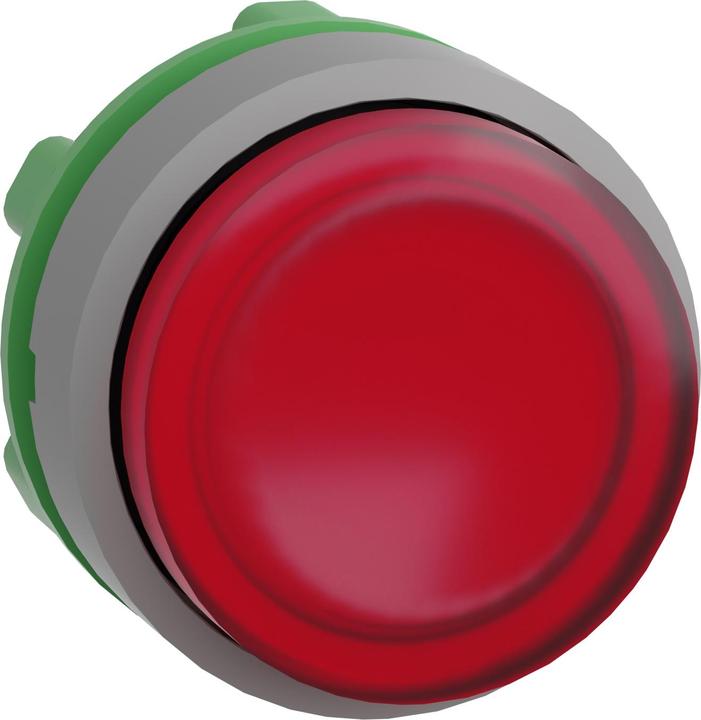

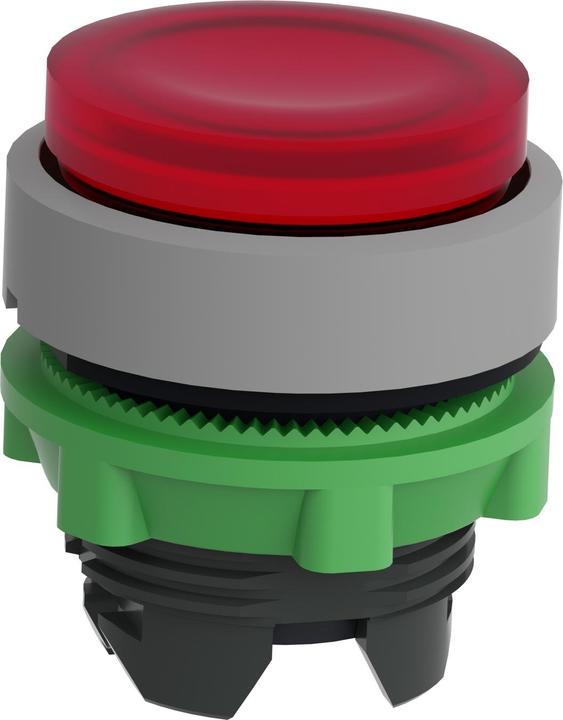

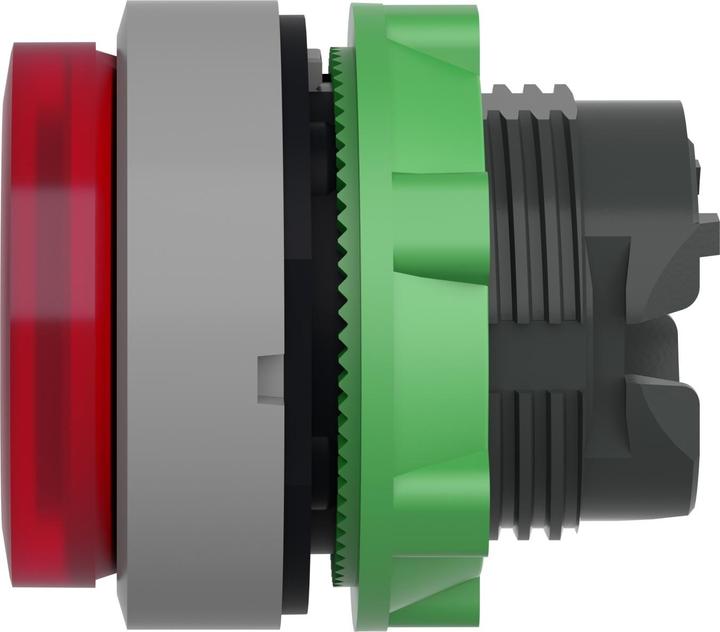

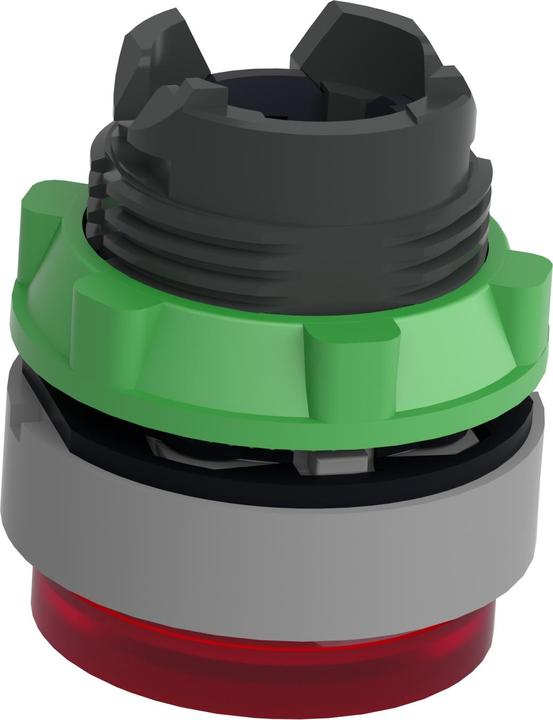

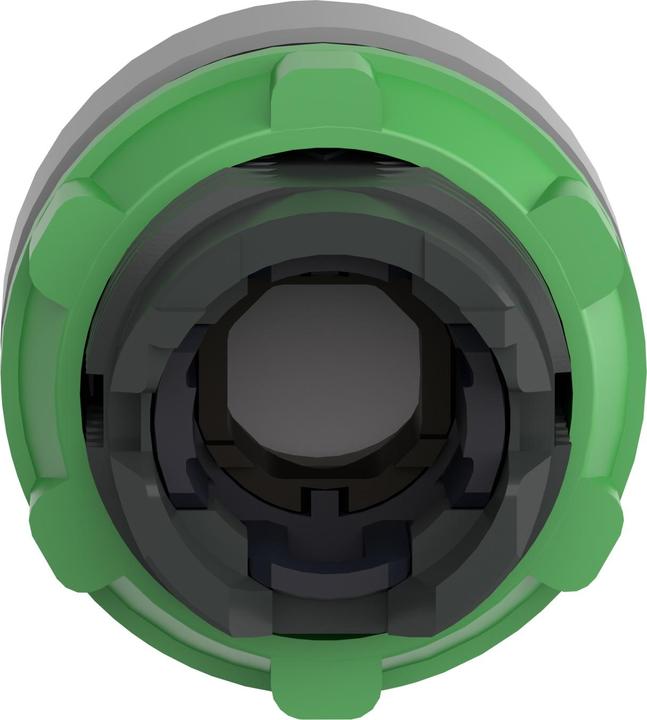

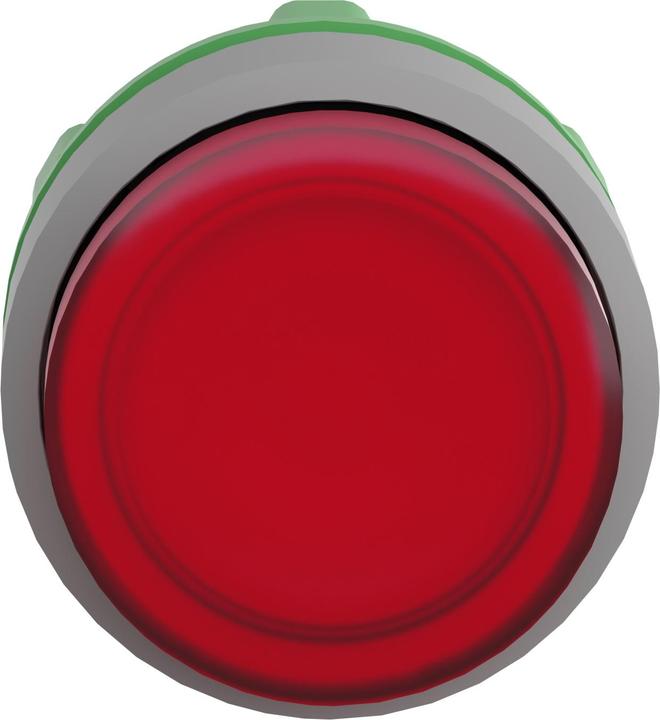

Schneider Electric Illuminated pushbutton, front, protruding, ZB5AW143C0
Price in EUR including VAT
Free shipping starting at 30,–
Schneider Electric Illuminated Push Button ZB5AW143C0
Manufacturer: Schneider Electric
Description: Red illuminated push button, 22mm, in gray
Type: ZB5AW143C0
Button Color: Red
Number of Command Positions: 1
Lens Shape: Round
Hole Diameter: 22.5 mm
Button Shape: High
Suitable for Lighting: Yes
With Protective Cover: No
Labeled: No
Latching Switch Function: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP), front side: IP66
Protection Class (NEMA), front side: Other
Additional Details:
Illuminated push button made of plastic as a front element with a 22mm installation size, Harmony XB5 series. The color of the illuminated push button is red and protruding. The actuation function is non-latching. The color of the outer ring is gray. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489769642.
Colour | Red |
Mounting type | Built-in installation |
Number of actuation levels | 1 x |
Width | 22.50 mm |
Diameter | 22 mm |
Item number | 33203659 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | ZB5AW143C0 |
Release date | 17.5.2023 |
Colour | Red |
Exact colour description | Red |
Material group | Plastic |
Material | Plastic |
Operating mode | Key |
Number of actuation levels | 1 x |
Mounting type | Built-in installation |
LED colour | Red |
Protection type (IP code) | IP66 |
Switch + push-button Additional function | Lighting |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Illuminated pushbutton |
Width | 22.50 mm |
Diameter | 22 mm |
