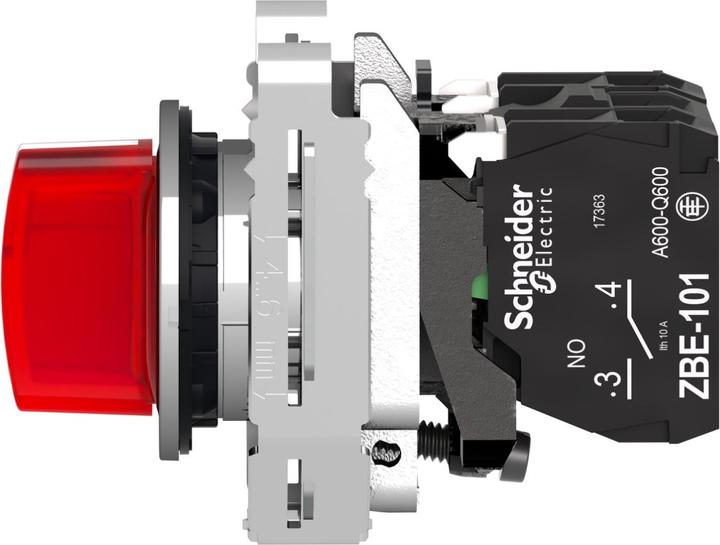

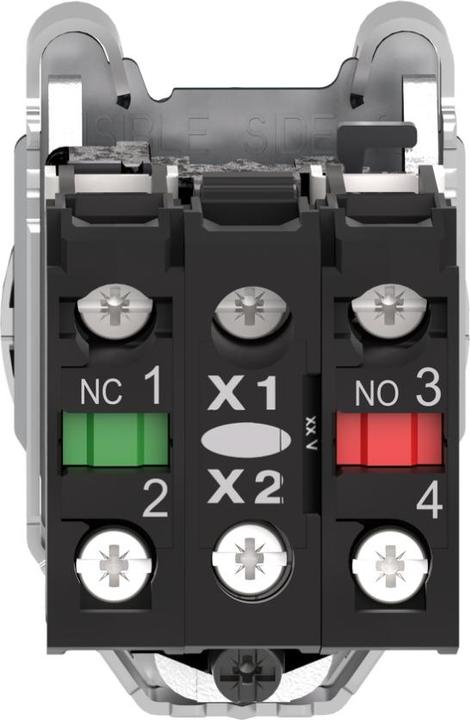

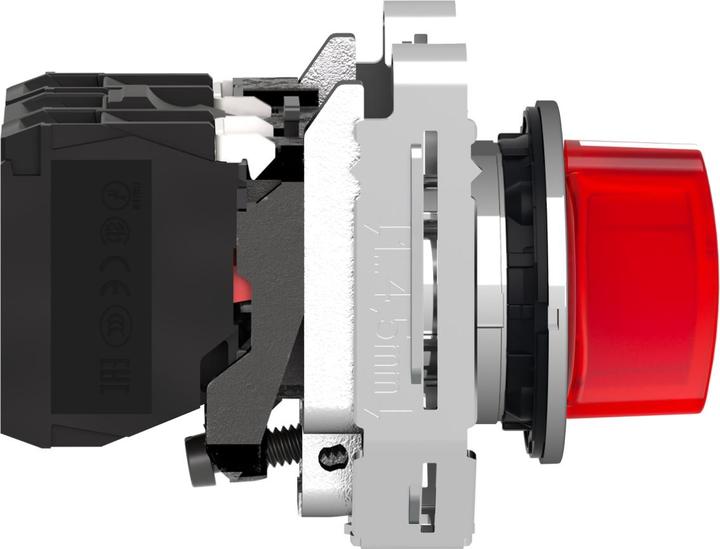

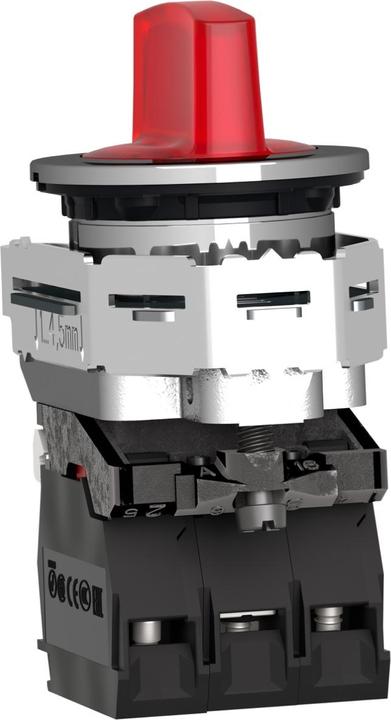

Schneider Electric Pilot Light Selector Switch XB4FK134G5

Manufacturer: Schneider Electric
Description: Pilot light selector switch 1N+1O, 110-120V
Type: XB4FK134G5
Number of Switching Positions: 3
Actuator Type: Other
Suitable for Lighting: Yes
With Light Source: Yes
Button Color: Red
Hole Diameter: 30.5 mm
Switch Function Latching: Yes
Momentary: No
Protection Class (IP): IP66
Protection Class (NEMA): 13
Supply Voltage: 110-120 V
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw connection
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome

Additional Details:
Complete pilot light selector switch Harmony XB4F. 1 Normally Closed + 1 Normally Open, 3 positions +/- 45°, with LED module, up to 1,000,000 cycles. Dimensions (WxHxD): 36.6 x 53 x 69.5 mm, mounting diameter 30.5 mm. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. Chrome-plated metal. Certifications: UL listed, CSA. Product Standards: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 4520. Protection class up to IP69K.
