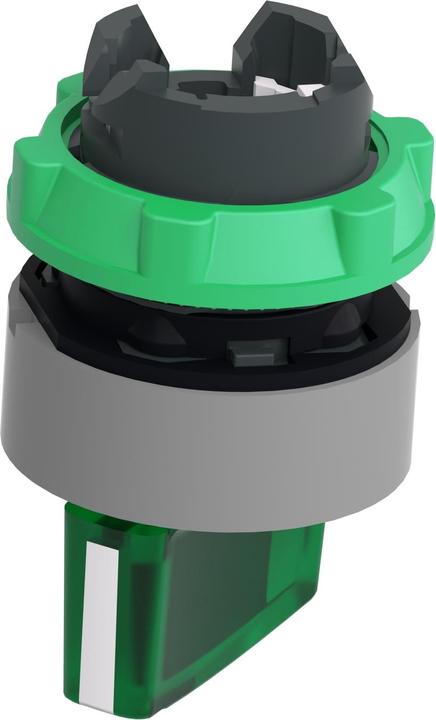

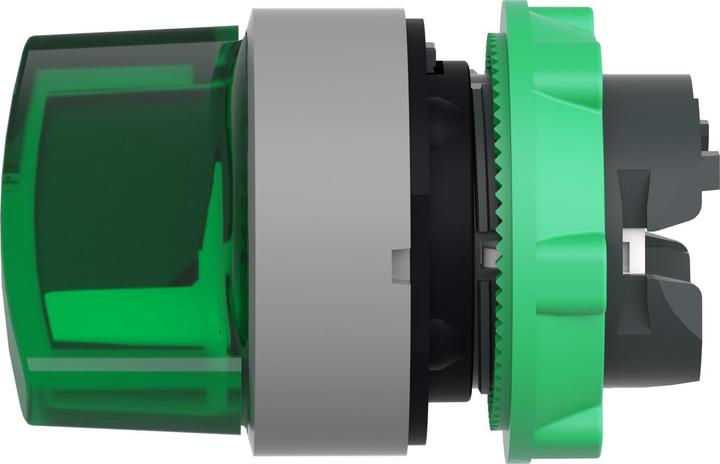

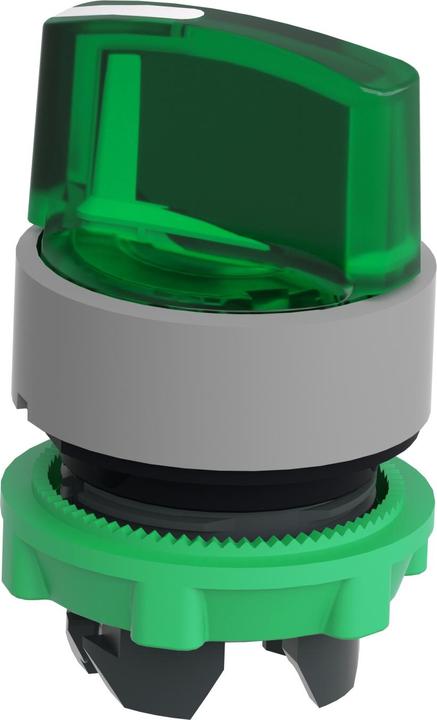

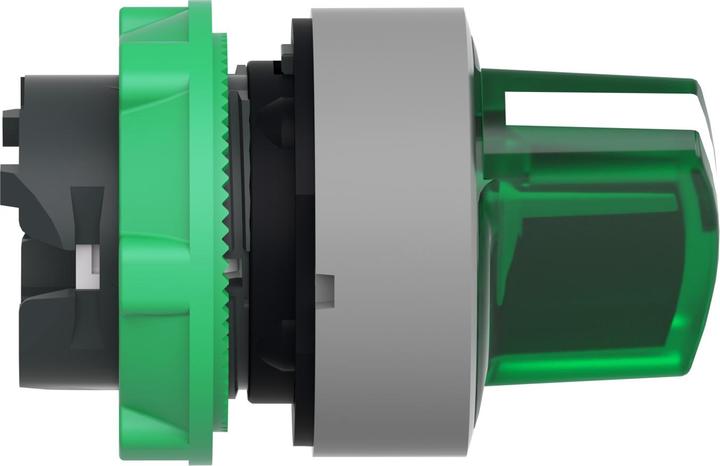

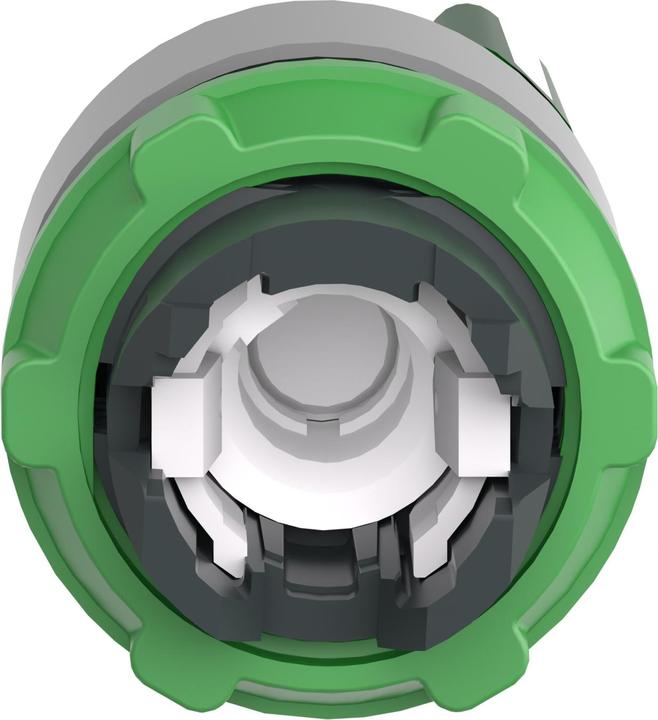

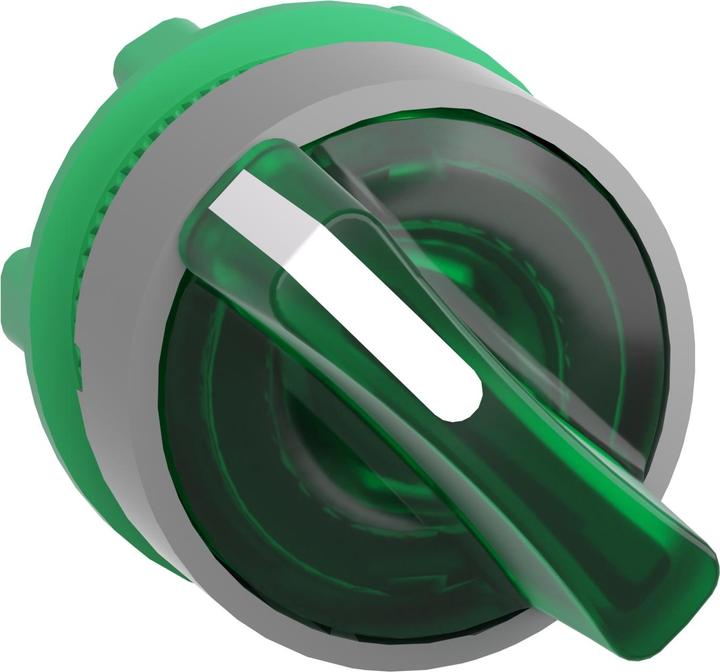

Schneider Electric Illuminated Selector Switch ZB5AK1233C0

Manufacturer: Schneider Electric
Description: Illuminated selector switch, 22 mm, in gray
Type: ZB5AK1233C0
Number of switching positions: 2
Actuator design: short rotary handle
Suitable for lighting: yes
Color of the actuator: green
Color of the indicator light dome: other
Lens shape: round
Hole diameter: 22.5 mm
Latching switching function: yes
Pushbutton: no
With front ring: yes
Material of the front ring: plastic
Color of front ring: black
Protection class (IP), front side: IP66
Protection class (NEMA): 13

The illuminated selector switch made of plastic is designed as a front element with a mounting size of 22 mm in the Harmony XB5 series. The color of the illuminated selector switch is green, and the actuator has 2 positions. The outer ring is gray. The modular Harmony series with a 22 mm mounting size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. The IP protection classes range up to IP69K, and the ambient temperatures range from -40 °C to +70 °C.

Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
