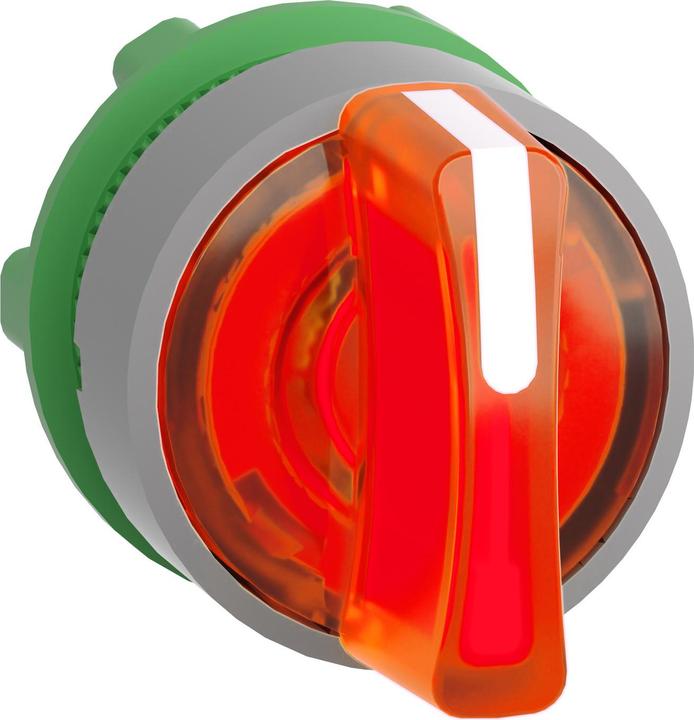

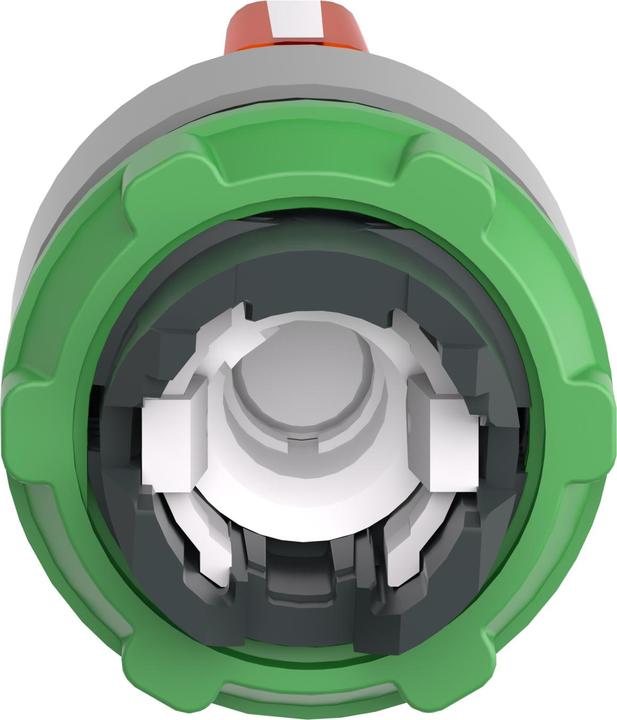

Schneider Electric Pilot Light Selector Switch ZB5AK1553C0

Manufacturer: Schneider Electric
Description: Pilot light selector switch, 22mm, in gray
Type: ZB5AK1553C0
Number of switching positions: 3
Actuator design: short rotary handle
Suitable for lighting: yes
Color of actuator: orange
Color of indicator lens: other
Lens shape: round
Hole diameter: 22.5 mm
Latching switching function: no
Pushbutton: yes
With front ring: yes
Material of front ring: plastic
Color of front ring: black
Protection class (IP), front side: IP66
Protection class (NEMA): 13

The plastic pilot light selector switch is designed as a front element with a 22mm installation size from the Harmony XB5 series. The color of the pilot light selector switch is orange. The actuator has 3 positions, and the color of the outer ring is gray. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. They offer IP protection classes up to IP69K and are suitable for ambient temperatures ranging from -40°C to +70°C.

Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications listed by DNV, GL, UL, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
