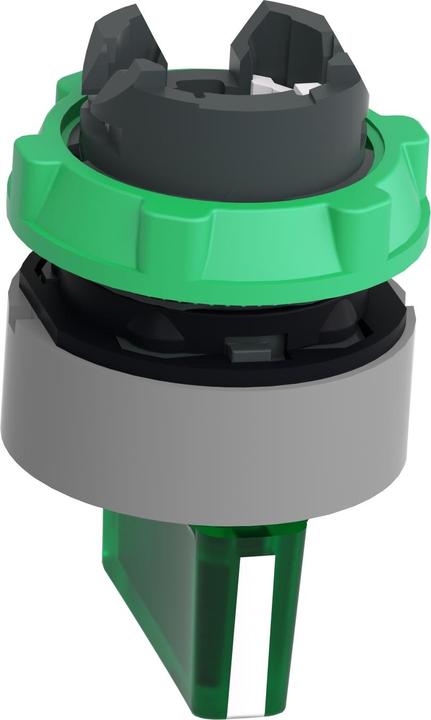

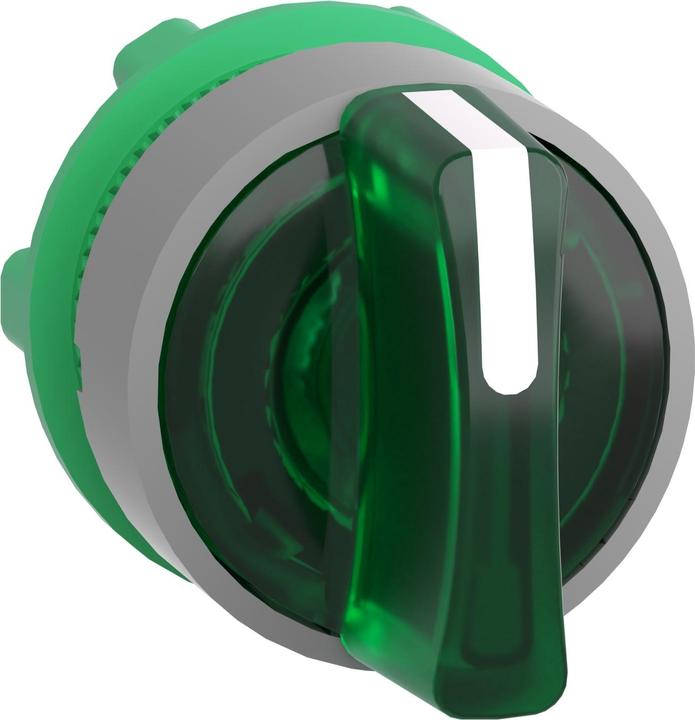

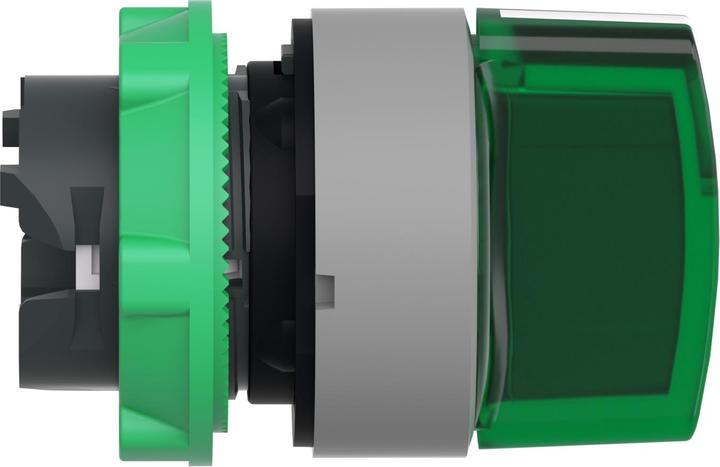

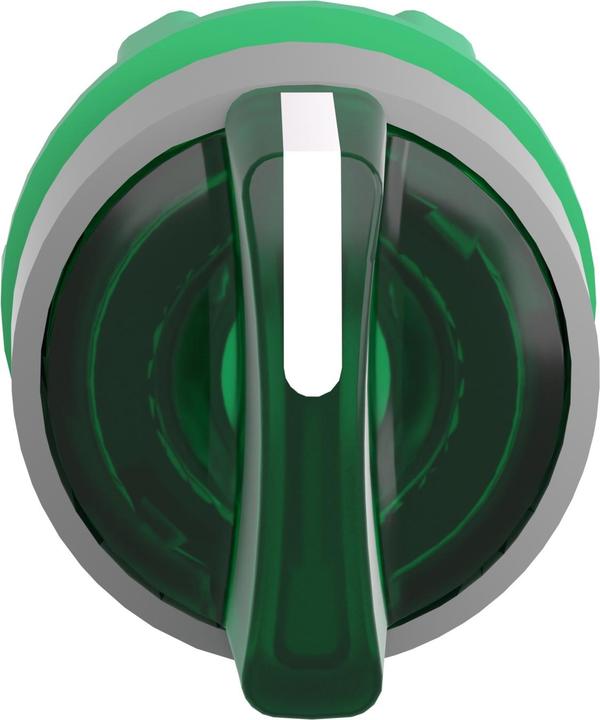

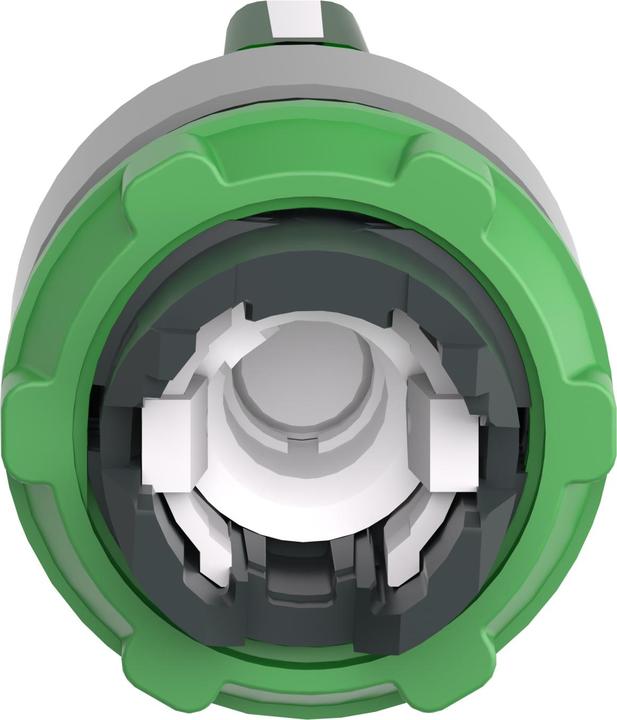

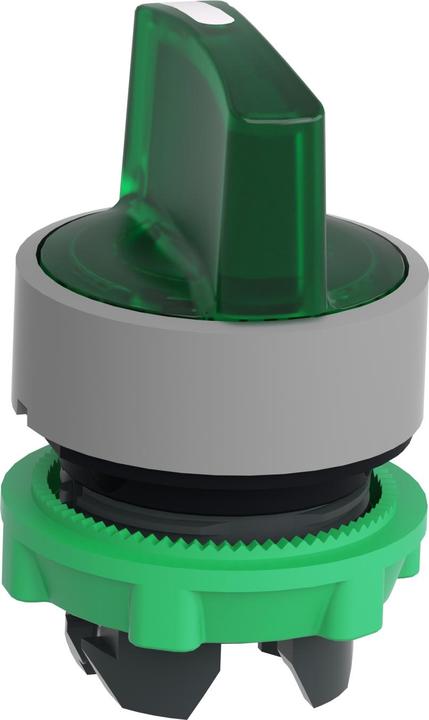

Schneider Electric Illuminated selector switch, front, plastic, ZB5AK1733C0
In Detail
Schneider Electric Pilot Light Selector Switch ZB5AK1733C0
Manufacturer: Schneider Electric
Description: Pilot light selector switch, 22 mm, in gray
Type: ZB5AK1733C0
Number of switching positions: 3
Actuator design: short rotary knob
Suitable for lighting: yes
Color of actuator: green
Color of indicator dome: other
Lens shape: round
Hole diameter: 22.5 mm
Switching function latching: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Color of front ring: black
Protection class (IP), front side: IP66
Protection class (NEMA): 13
Schneider Electric Pilot Light Selector Switch ZB5AK1733C0: additional details
Pilot light selector switch made of plastic as a front element with a 22 mm installation dimension, series Harmony XB5. The color of the pilot light selector switch is green. The actuator has 3 positions. The color of the outer ring is gray. The modular Harmony series with a 22 mm installation dimension combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40 °C to +70 °C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
