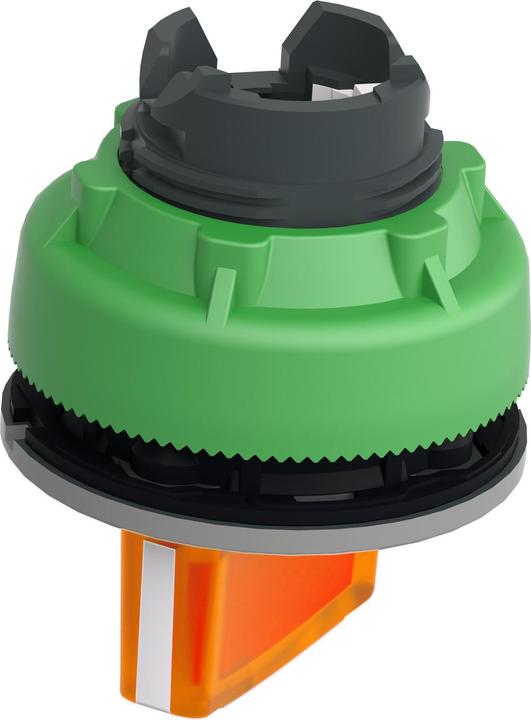

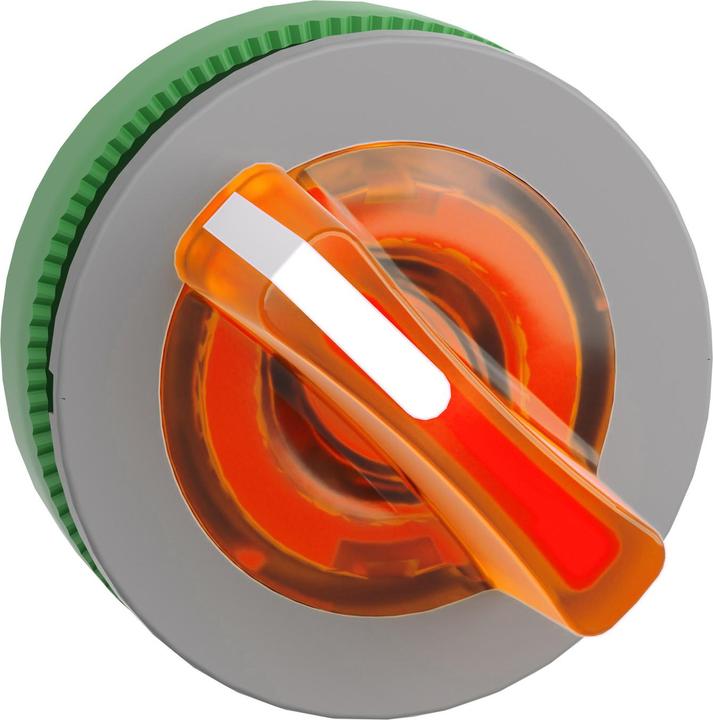

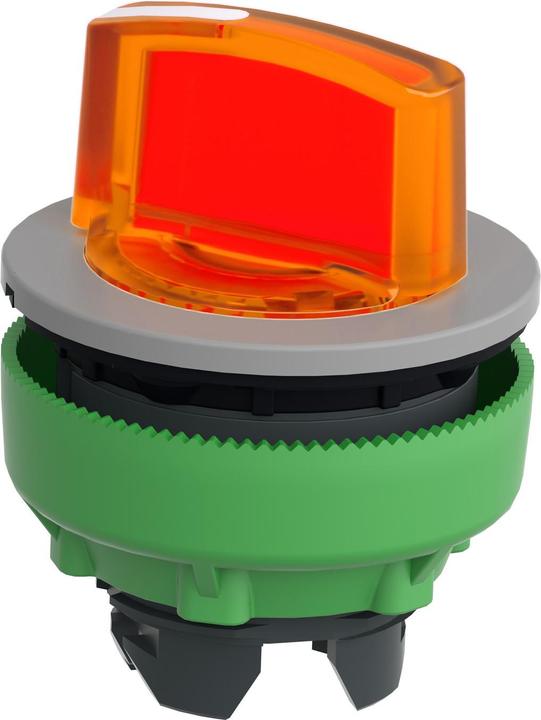

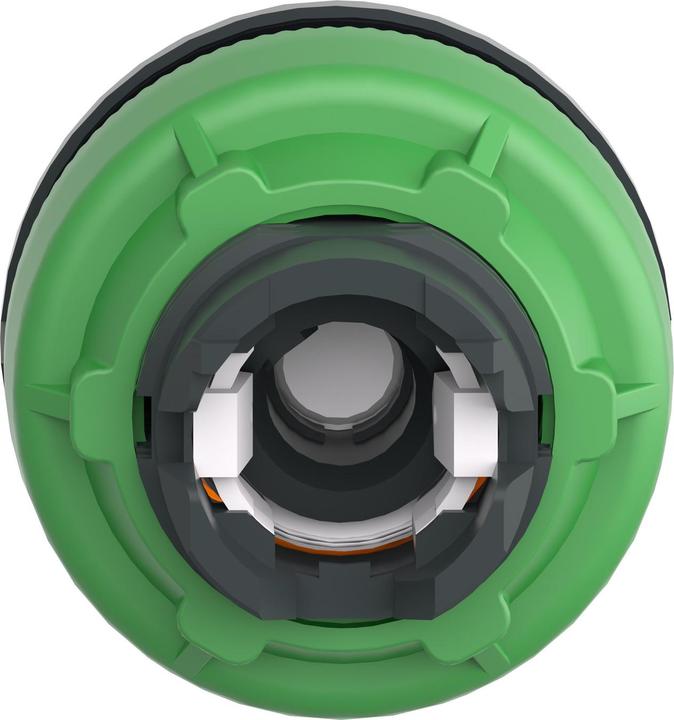

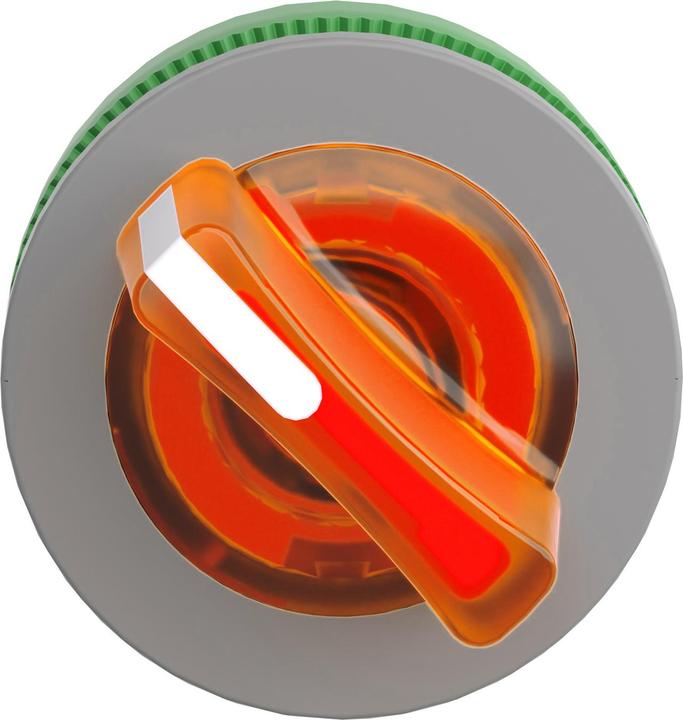

Schneider Electric Illuminated Selector Switch ZB5FK1253C0

Manufacturer: Schneider Electric
Description: Illuminated selector switch, 30mm, in gray
Type: ZB5FK1253C0
Number of switching positions: 2
Actuator design: other
Suitable for lighting: yes
Color of the actuator: orange
Color of the indicator dome: other
Lens shape: round
Hole diameter: 31 mm
Switching function latching: yes
Pushbutton: no
With front ring: yes
Material of front ring: plastic
Color of front ring: black
Protection class (IP), front side: IP66
Protection class (NEMA): 13

Schneider Electric Illuminated Selector Switch ZB5FK1253C0: additional details
Illuminated selector switch made of plastic as a front element and 30mm installation size, Harmony XB5F series for flat installation. The color of the illuminated selector switch is orange. The actuator has 2 positions. The color of the outer ring is gray. The modular Harmony series with a 30mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489753498.
