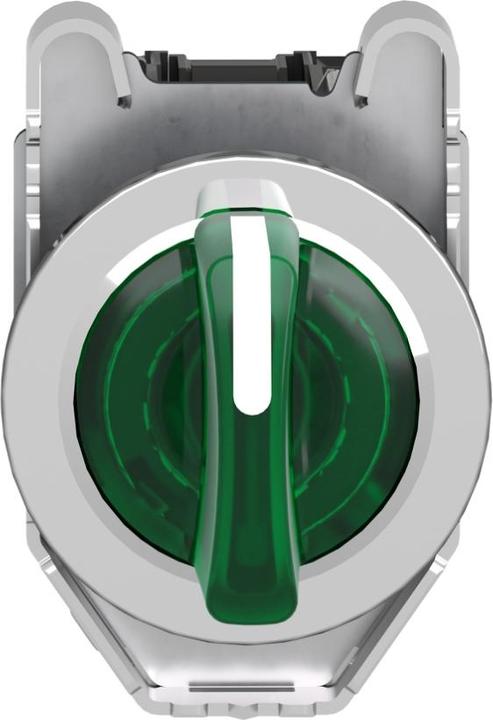

Schneider Electric Pilot Light Selector Switch XB4FK133G5

Manufacturer: Schneider Electric
Description: Pilot light selector switch 1NO + 1NC, green, 110-120V
Type: XB4FK133G5
Number of switch positions: 3
Actuator design: other
Suitable for lighting: yes
With light source: yes
Button color: green
Hole diameter: 30.5 mm
Latch switch function: yes
Pushbutton: no
Protection class (IP): IP66
Protection class (NEMA): 13
Supply voltage: 110-120 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection design: screw connection
With front ring: yes
Material of front ring: metal
Front ring color: chrome

Schneider Electric Pilot Light Selector Switch XB4FK133G5: additional details
Complete Harmony XB4F pilot light selector switch. 1 normally closed + 1 normally open, 3 positions +/- 45°, with LED module, up to 1,000,000 cycles. Dimensions (WxHxD): 36.6 x 53 x 69.5 mm, mounting diameter 30.5 mm. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. Chrome-plated metal. Certifications: UL listed, CSA. Product standards: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 4520. Protection class up to IP69K.
