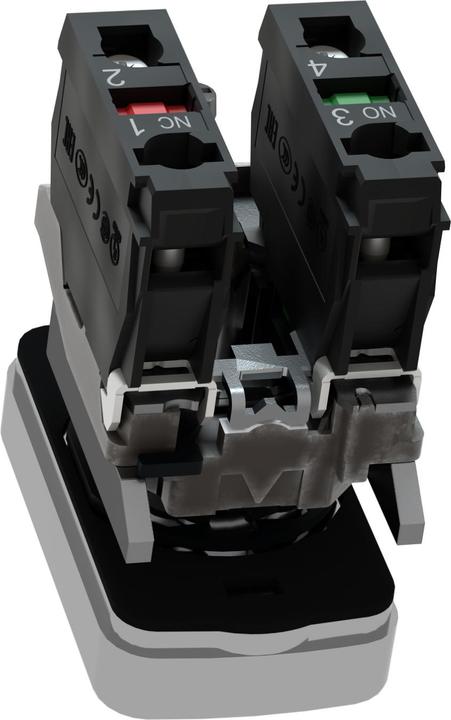

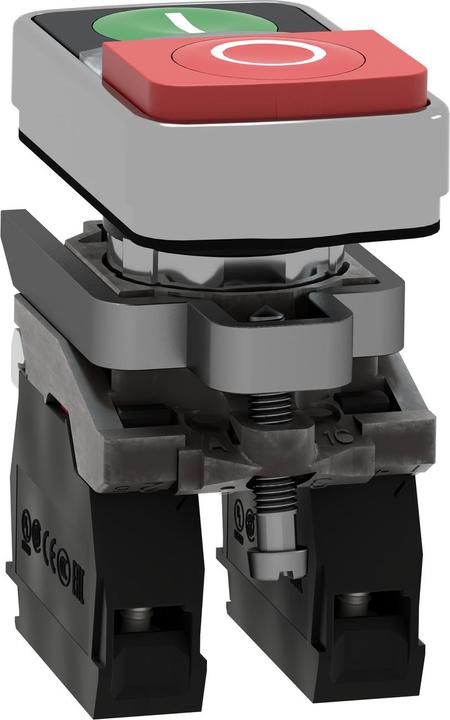

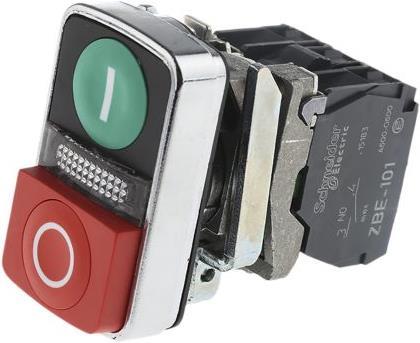

Schneider Electric Illuminated Double Push Button XB4BW73731G5

Manufacturer: Schneider Electric
Designation: Illuminated Double Push Button 1S+1Ö 120V
Type: XB4BW73731G5
Number of Command Positions: 2
Button Shape: High
Button Color: Red/Green
Lens Shape: Rectangular
Hole Diameter: 22.5 mm
Suitable for Lighting: Yes
Latching Switching Function: No
Momentary: Yes
Lamp Supply Voltage: 120 V
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw Terminal
With Front Ring: Yes
Material of Front Ring: Metal
Front Ring Color: Chrome
Protection Class (IP): IP66
Protection Class (NEMA): 4X

The Harmony XB4 series made of metal offers a variety of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This double push button features 1 normally closed and 1 normally open contact. The supply voltage is 120V AC. Mounted in a 22mm hole, the device connects via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
