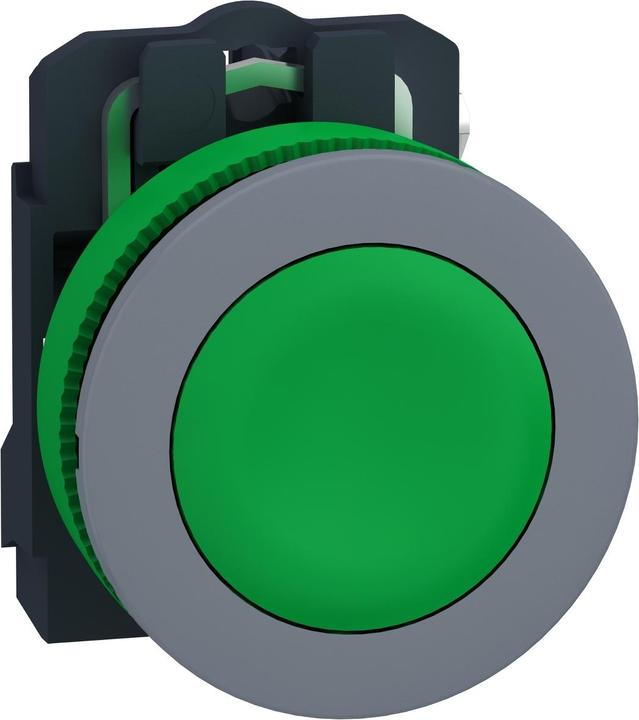

Schneider Electric Push Button Complete XB5FA31C0

Manufacturer: Schneider Electric
Designation: Complete push button green, 30mm, 1NO, gray
Type: XB5FA31C0
Number of command points: 1
Button shape: flat
Button color: green
Lens shape: round
Hole diameter: 30.5 mm
Suitable for lighting: no
Latching switch function: no
Momentary: yes
Lamp supply voltage: 0 V
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

The plastic push button is a complete device with a 30mm installation size and belongs to the Harmony XB5F series for flat installation. The color of the push button is green, and it features 1 normally open contact. The outer ring is gray. The actuation function is non-latching. The modular Harmony series with a 30mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. The IP protection classes range up to IP69K, and the ambient temperatures are between -40°C and +70°C.

Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
