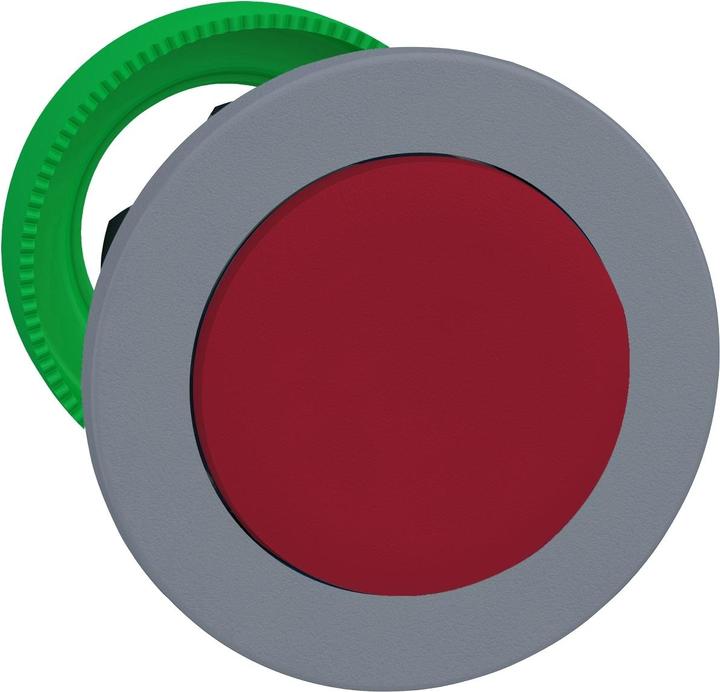

Schneider Electric pushbutton, front ZB5FH4C0

Manufacturer: Schneider Electric
Description: Pushbutton, front red, 30mm, in grey
Type: ZB5FH4C0
Colour of knob: Red
Number of command positions: 1
Design of lens: Round
Hole diameter: 30.5 mm
Design of knob: Flat
Suitable for lighting: No
With protective cover: No
Labelling: No
Switching function latching: No
Keying: Yes
With front ring: Yes
Material of front ring: Plastic
Colour of front ring: Black
Protection class (IP), front: IP66
Protection class (NEMA), front: 4X

Further details: Pushbutton made of plastic as front element with a 30mm mounting dimension, series Harmony XB5F for flat mounting. The pushbutton colour is red and protruding. Actuation function is with detent. Outer ring colour is grey. The modular Harmony series with 30mm mounting dimension combines easy installation, efficiency, modern design, and flexibility with high robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyd's Register of Shipping).
