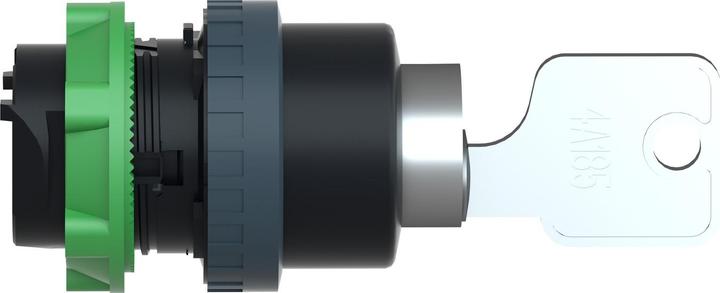

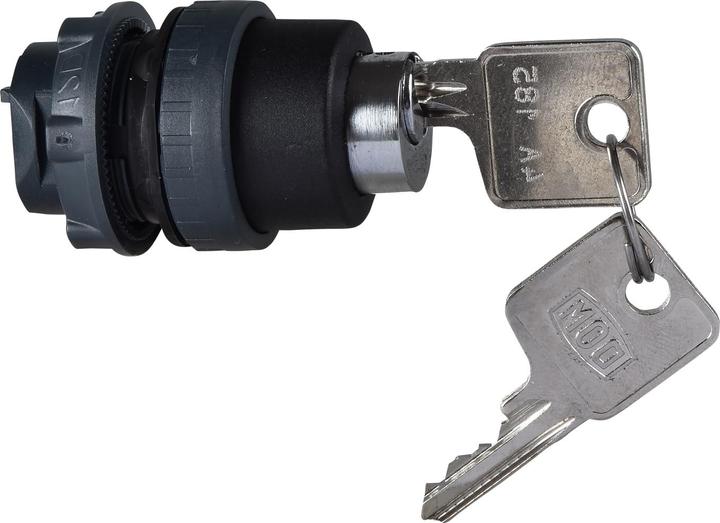

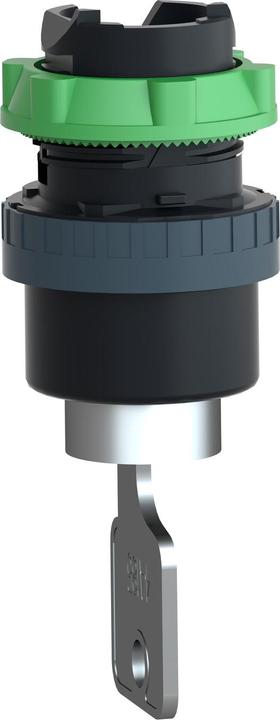

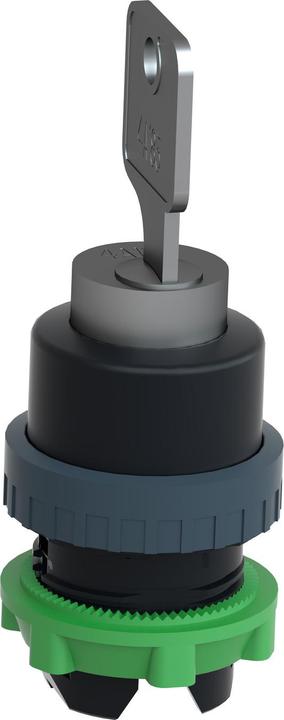

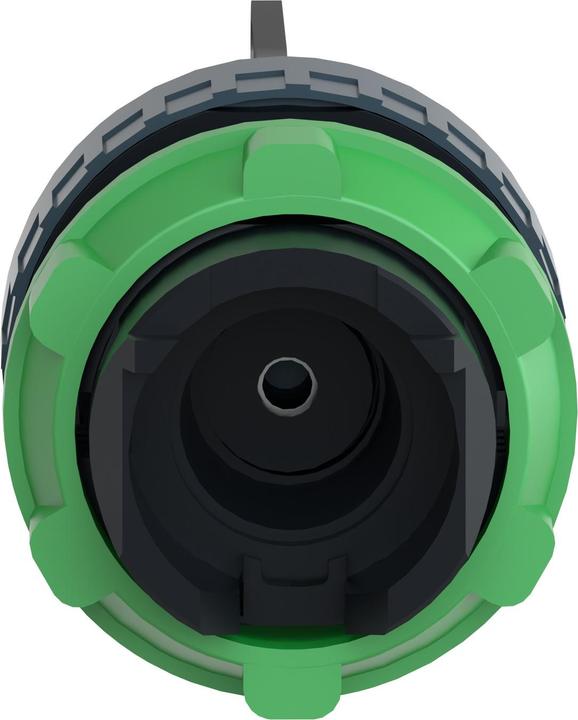

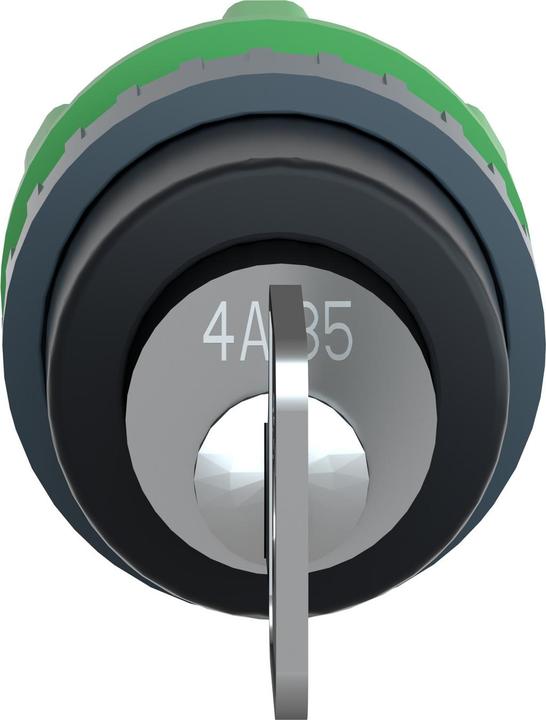

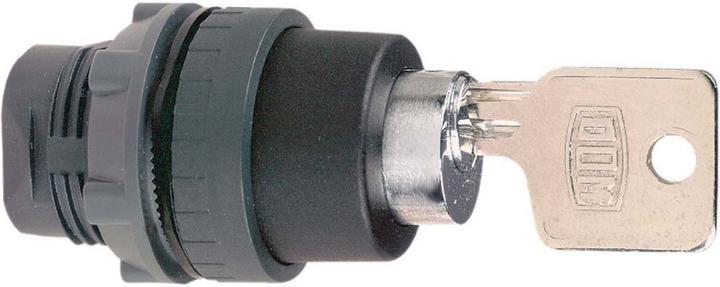

Schneider Electric key switch ZB5AFDC
Manufacturer: Schneider Electric
Designation: Key switch 2-position
Type: ZB5AFDC
Number of switch positions: 2
Actuating element design: Key
Suitable for lighting: No
Colour of actuating element: Other
Lens design: Round
Hole diameter: 22.5 mm
Width of opening: 0 mm
Height of opening: 0 mm
Switching function latching: Yes
Keying: No
With front ring: Yes
Material of front ring: Plastic
Colour of front ring: Black
Protection class (IP), front: IP66
Protection class (NEMA): Other

Further details:
Front element for Harmony ZB5 pushbutton. Black front, plastic cover. Key removal rest position. Dimensions (WxHxD): 29x29x62 mm, mounting diameter: 22 mm, weight: 0.05 kg. Mechanical life: 500,000 cycles. Lock type: Dom 4A185, head shape: Round, standard. With high vibration resistance and chemical resistance, ambient temperature: -40 to +70 degrees C. The modular plastic range with 22 mm installation dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. Certifications according to GL, CSA, UL listed, DNV, BV, LROS (Lloyds register of shipping), RINA. Product standards according to EN/IEC 60947-5-5, JIS C 4520, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4.
