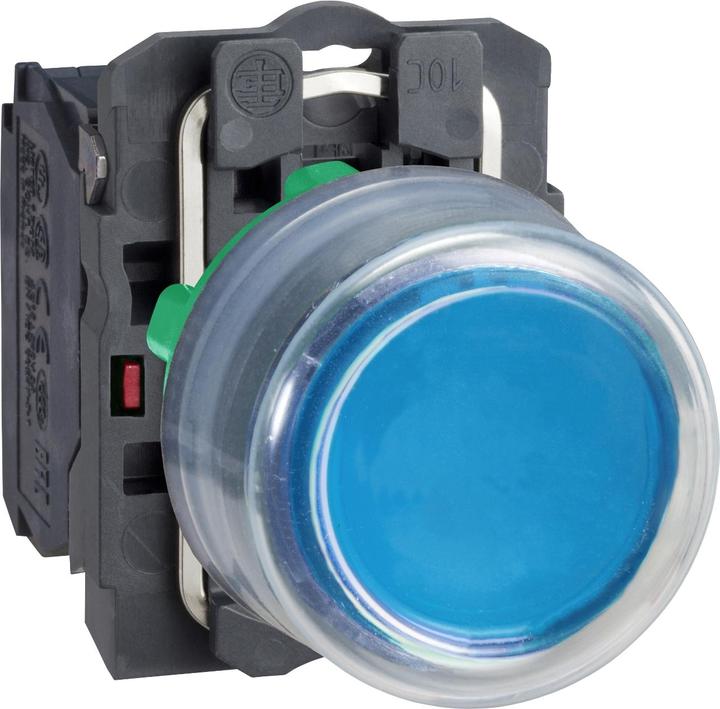

Schneider Electric Push Button Complete XB5AP61C0

Manufacturer: Schneider Electric
Description: Complete blue push button, 22mm, 1NO, gray
Type: XB5AP61C0
Number of command points: 1
Button shape: high
Button color: blue
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: no
Latching switch function: no
Momentary: yes
Lamp supply voltage: 0 V
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): other

Plastic push button with silicone protective cap as a complete device and 22mm installation size, Harmony XB5 series. The color of the push button is blue. With 1 normally open contact. The color of the outer ring is gray. The actuation function is non-latching. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489758936.
