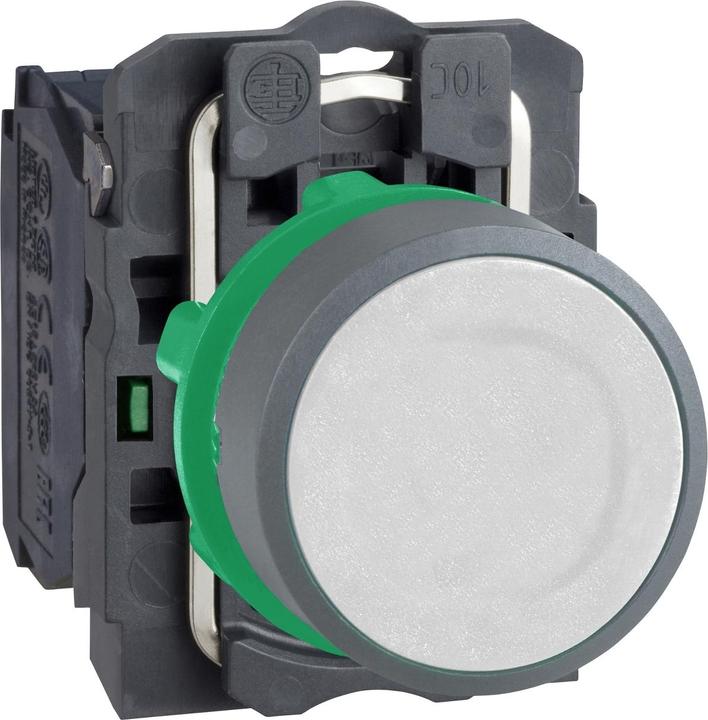

Schneider Electric Push Button Complete XB5AA11C0

Manufacturer: Schneider Electric
Description: Complete push button, 22 mm, 1NO, gray
Type: XB5AA11C0
Number of command points: 1
Button design: flat
Button color: white
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: no
Latching switch function: no
Momentary: yes
Lamp supply voltage: 0 V
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): other

The plastic push button is a complete device with a 22 mm installation size from the Harmony XB5 series. The color of the push button is white, and it has 1 normally open contact. The outer ring is gray. The actuation function is non-latching. The modular Harmony series with a 22 mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. The IP protection classes range up to IP69K, and the ambient temperatures are between -40 °C and +70 °C.

Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications listed by DNV, GL, UL, RINA, BV, CSA, LROS (Lloyds Register of Shipping).
