Schneider Electric Pushbutton, compl., plastic, momentary, XB5AA3311C0

Price includes VAT, free shipping
Minimum order surcharge

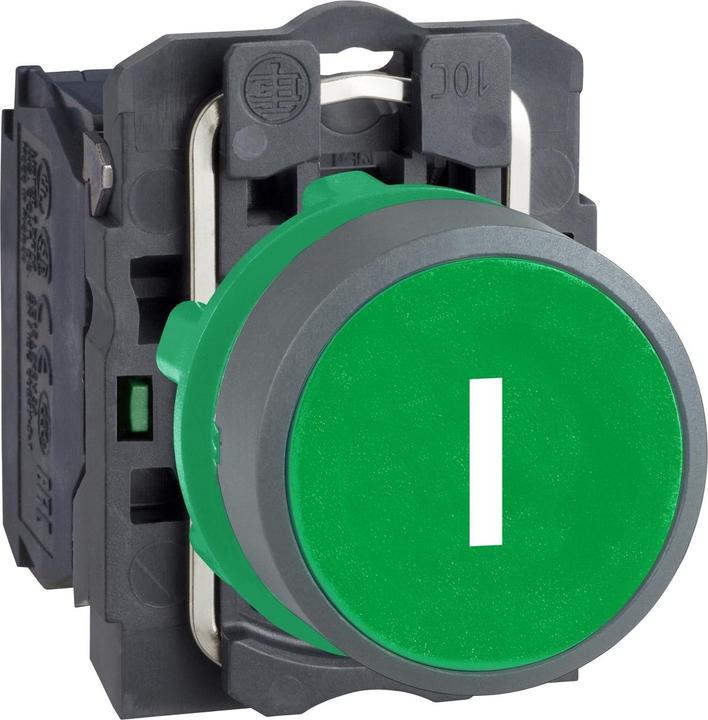

Schneider Electric Pushbutton complete XB5AA3311C0 Manufacturer :Schneider Electric Designation :Pushbutton complete gn, 22mm, 1S, grey Type :XB5AA3311C0 Number of command positions :1 Design of knob :flat
Colour of knob :green Design of lens :round Hole diameter :22.5 mm Suitable for lighting :no Switching function latching :no Keying :yes Supply voltage of lamp :0 V Number of contacts as normally open :1 Version of electrical connection :screw connection With front ring :yes Material of front ring :plastic Colour of front ring :black Protection class (IP) :IP66 Protection class (NEMA) :other Schneider Electric Pushbutton complete XB5AA3311C0: further details Pushbutton made of plastic as complete device and 22mm mounting dimension, series Harmony XB5. Colour of the pushbutton is green and labelled I. With 1 NO contact. The colour of the outer ring is grey. Actuation function is without detent. The modular Harmony series with 22mm mounting dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520, EAN: 3606489757854.

Key specifications

Item number
33203690

General information

Manufacturer
Category
Manufacturer no.
XB5AA3311C0
Release date
6/29/2023

Colour

Colour group
Grey

Package dimensions

Weight
36 g
