Schneider Electric Pushbutton, compl., plastic, momentary, XB5AA4322C0
Price in EUR including VAT
Free shipping starting at 30,–

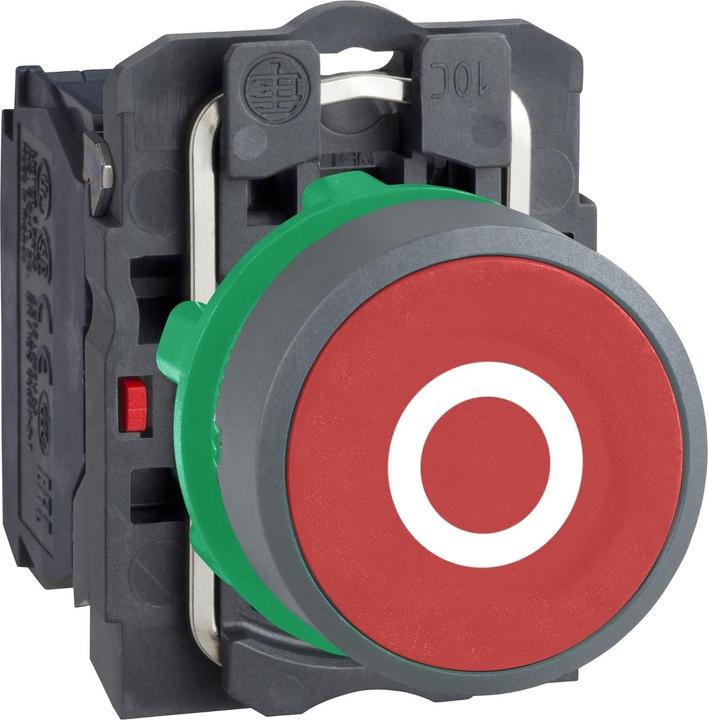

Schneider Electric Push Button Complete XB5AA4322C0
Manufacturer: Schneider Electric
Description: Complete push button red, 22mm, 1NO, gray
Type: XB5AA4322C0
Number of command points: 1
Button shape: flat
Button color: red
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: no
Switch function latching: no
Momentary: yes
Lamp supply voltage: 0 V
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): other
Schneider Electric Push Button Complete XB5AA4322C0: additional details
Plastic push button as a complete device with a 22mm installation size, Harmony XB5 series. The color of the push button is red and labeled with O. It has 1 normally open contact. The color of the outer ring is gray. The actuation function is non-latching. The modular Harmony series with a 22mm installation size combines easy installation, efficiency, modern design, flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications listed by DNV, GL, UL, RINA, BV, CSA, LROS (Lloyd's Register of Shipping). EAN: 3606489757953.
Colour | Red |
Switch + button type | Push-button switch |
Number of actuation levels | 1 x |
Width | 22.50 mm |
Diameter | 22 mm |
Item number | 33203906 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | XB5AA4322C0 |
Release date | 17.5.2023 |
Colour | Red |
Exact colour description | Red |
Material group | Plastic |
Material | Plastic |
Switch + button type | Push-button switch |
Operating mode | Key |
Number of actuation levels | 1 x |
Mounting type | Screw fastening |
LED colour | without LED |
Number of poles | 1 x |
Protection type (IP code) | IP66 |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 1Ö, 22mm, Completely plastic, groping, labelled O, Light grey, Push button, Red |
Width | 22.50 mm |
Diameter | 22 mm |
