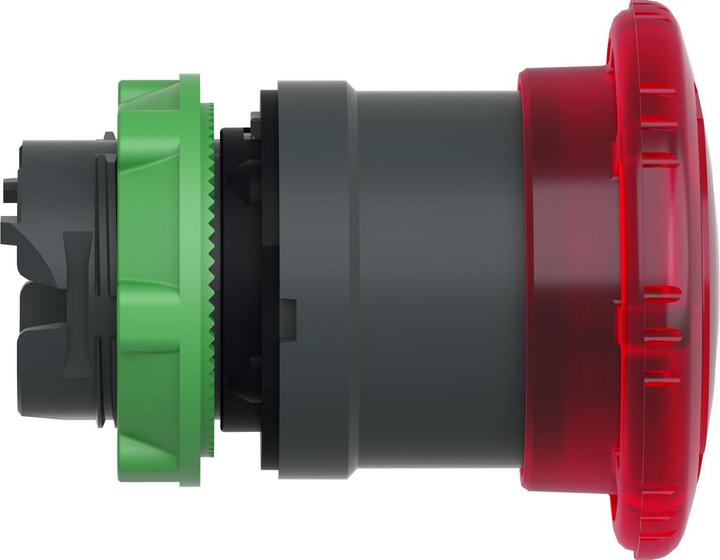

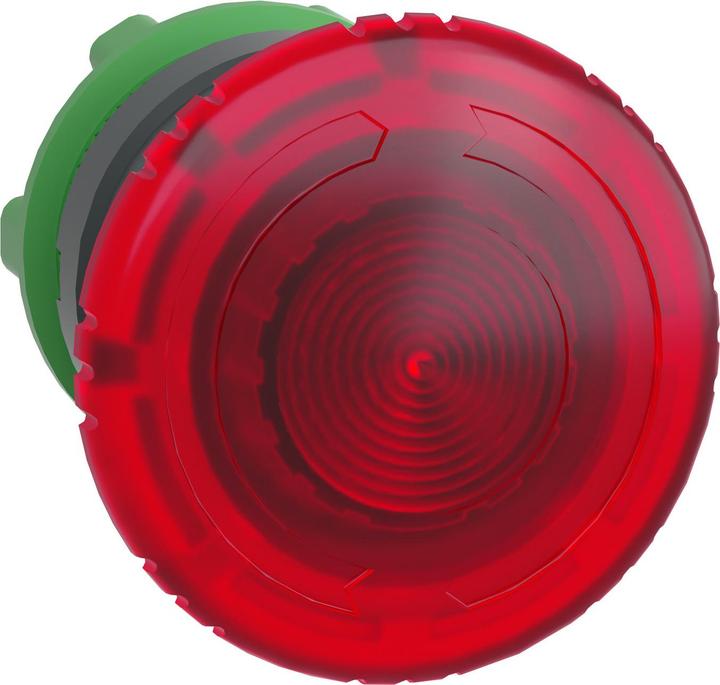

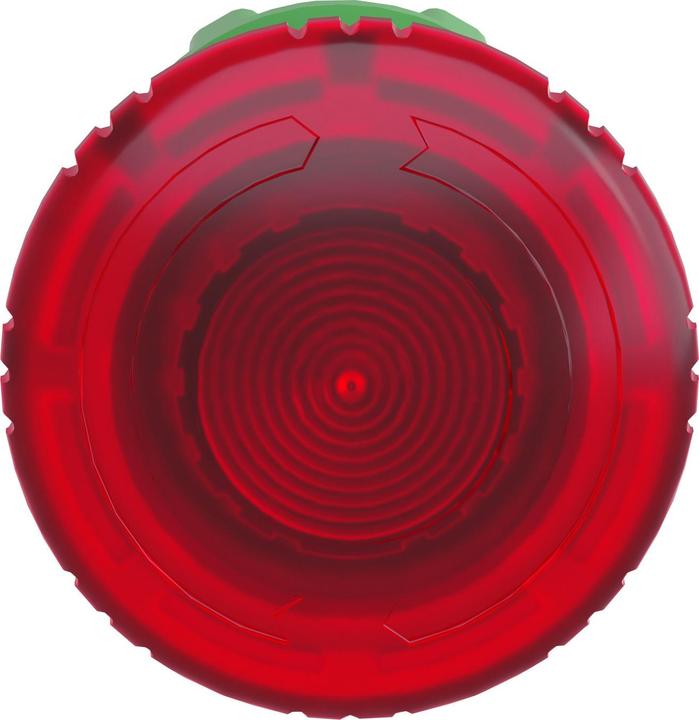

Schneider Electric Front Element. Push Button ZB5AW743

Manufacturer: Schneider Electric
Description: Front element. Push button, momentary, red
Type: ZB5AW743
Button color: red
Lens shape: round
Cap diameter: 40 mm
Hole diameter: 22.5 mm
Opening width: 0 mm
Opening height: 0 mm
Protection rating (IP): IP66
Protection rating (NEMA): other
Button shape: high
Suitable for lighting: yes
With lighting: yes
Latching switch function: yes
Momentary: no
With front ring: yes
Material of front ring: plastic
Front ring color: black
Suitable for emergency stop: yes
Type of release: rotary release

The Harmony XB5/ZB5 series made of plastic offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and optionally for 30 mm installation dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This push button in red is compatible with a universal LED with various supply voltages. The installation of this product is done in a 22 mm hole. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
