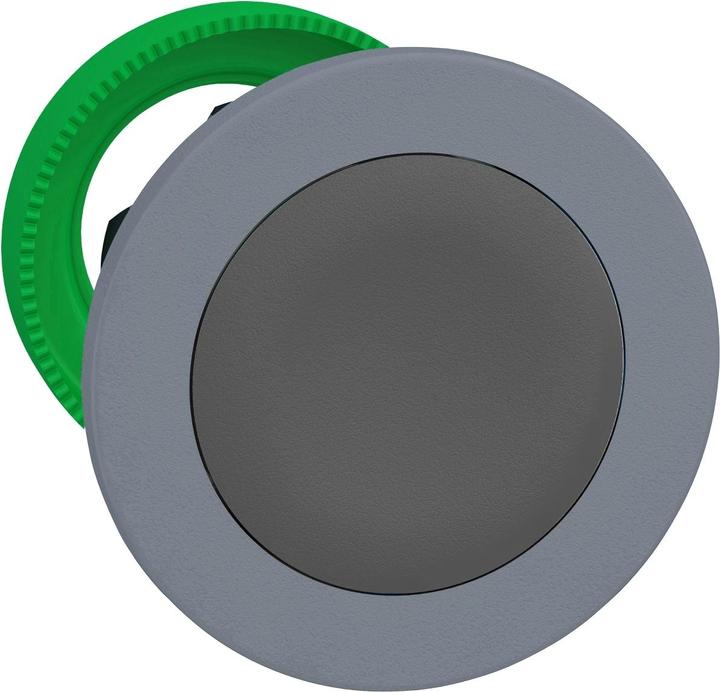

Schneider Electric Pushbutton, front ZB5FA8C0

Manufacturer: Schneider Electric
Description: Pushbutton, front yellow, 30mm, in grey
Type: ZB5FA8C0
Colour of button: grey
Lens shape: round
Hole diameter: 31 mm
Knob shape: flat
Suitable for lighting: no
With protective cover: no
Labelling: yes
Switching function latching: no
Keyed: yes
With front ring: yes
Material of front ring: plastic
Colour of front ring: black
Protection class (IP), front: IP66
Protection class (NEMA), front: other

Further details:
Pushbutton made of plastic as front element with a 30mm mounting dimension, series Harmony XB5F for flat mounting. The colour of the pushbutton is yellow. The actuation function is without detent. The colour of the outer ring is grey. The modular Harmony series with a 30mm mounting dimension combines easy installation, efficiency, modern design, and flexibility with high robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping).
