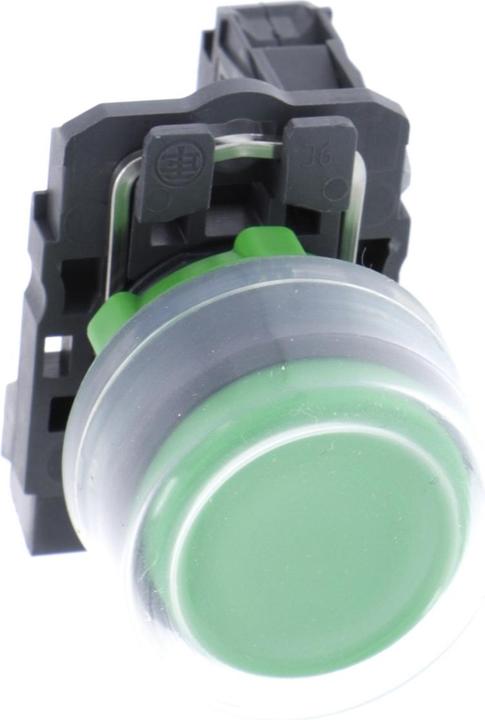

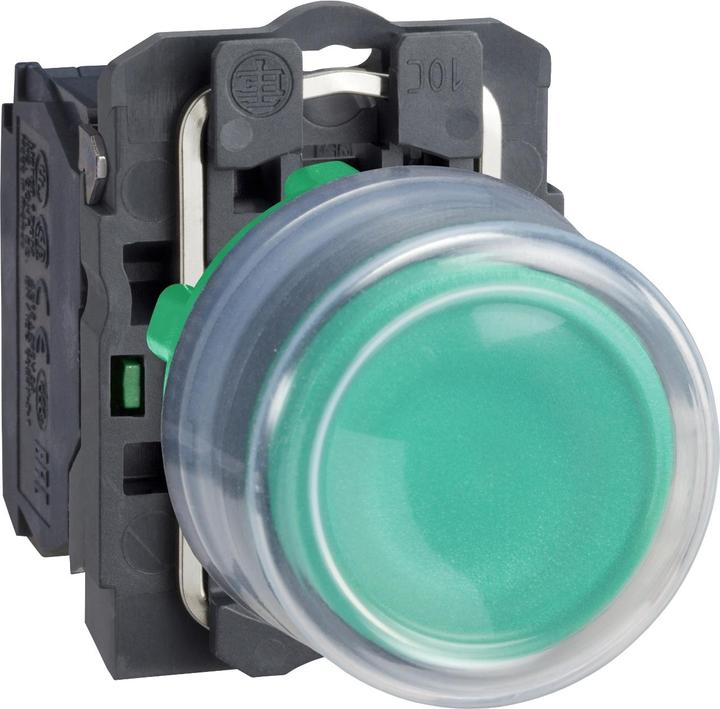

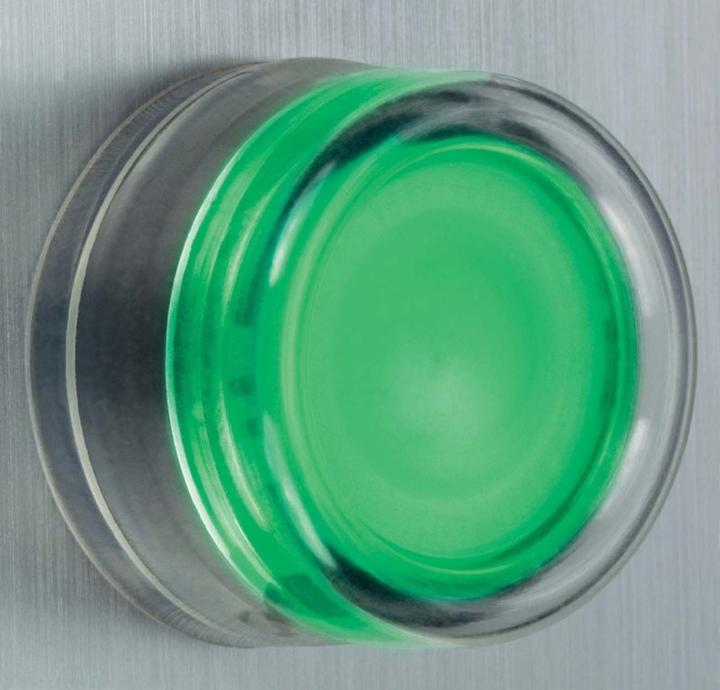

Schneider Electric Push Button with Silicone Cap XB5AP31

Manufacturer: Schneider Electric
Description: Push button with silicone cap, green, momentary
Type: XB5AP31
Number of command points: 1
Button shape: high
Button color: green
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: no
Latching switch function: no
Momentary: yes
Number of contacts as normally open: 1
Electrical connection type: screw terminal
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. Installed in a 22mm hole, the connection of the device is made via screw terminals on the back of the product. This push button features 1 normally open contact and is unmarked. Furthermore, this push button already comes with an additional pre-mounted protective cap. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
