Series: Harmony XB4
Contact Configuration: Normally Closed
Max Current: 6 A AC, 550 mA DC
Max Voltage: 600 V AC/DC
Number of Positions: 2
Connection Type: Screw Mounting
Actuator Type: Handle, with Locking
Approval for Hazardous Areas: ATEX

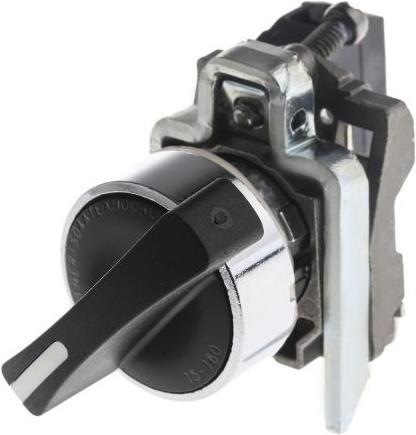

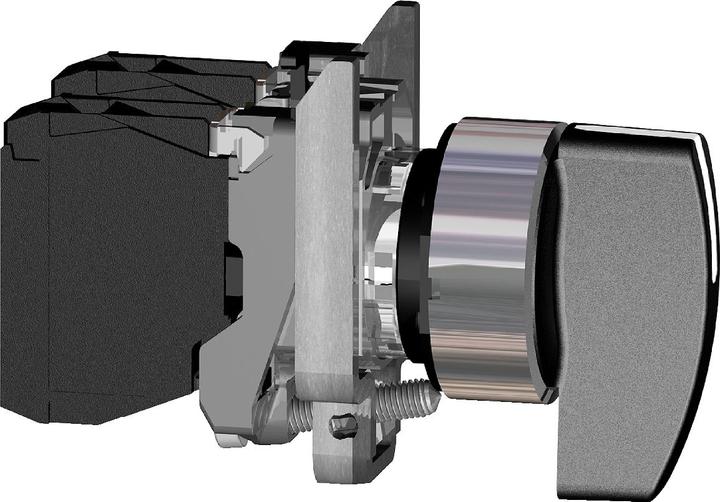

The XB4-B rotary selector switch is a complete switch of high industrial quality. The switches offer high protection against ingress of media, allowing them to be used in demanding environments. Within the series, switches with 2 or 3 switching positions are available in various colors.

Features and Benefits:

• Standard selector switch with handle
• Connection via screw terminal
• Contact Material: Silver Alloy
• Supplied with contact blocks
• Short-circuit protection

Manufacturer part numbers ending in B5 feature a 24 V LED, M5 has a 230 V LED, and G5 has a 110 V LED. Manufacturer part numbers with a J have a long handle.
