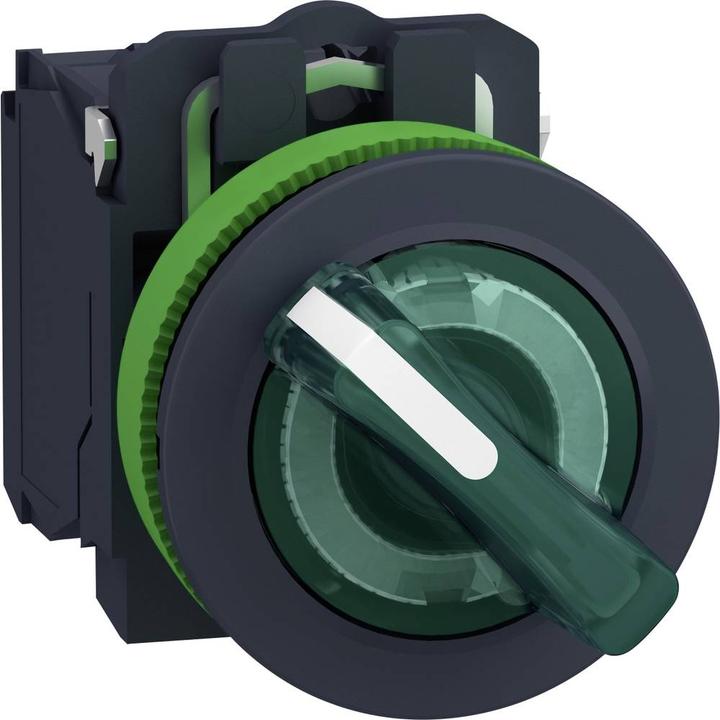

Schneider Electric Pilot Light Selector Switch XB5FK123M5

Manufacturer: Schneider Electric
Description: Green pilot light selector switch, 230V, 1Ö1S, 2 positions
Type: XB5FK123M5
Number of switching positions: 2
Actuator element design: other
Suitable for lighting: yes
With light source: no
Button color: green
Hole diameter: 30.5 mm
Latching switching function: no
Push button: no
Protection class (IP): IP66
Protection class (NEMA): 13
Supply voltage: 230..240 V

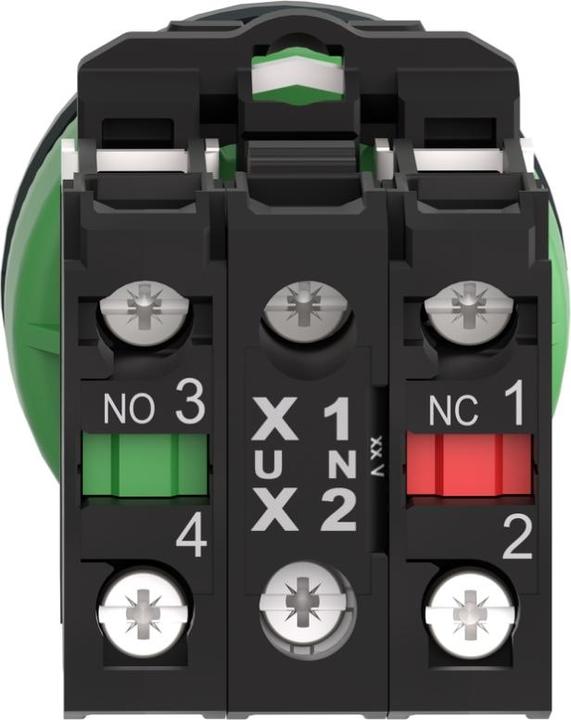

Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection design: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black

Schneider Electric Pilot Light Selector Switch XB5FK123M5: additional details
The Harmony XB5F series made of plastic offers a wide range of 30mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and optionally for 22mm mounting dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This green pilot light selector switch includes a universal LED and requires a supply voltage of 230V AC. The switch features 2 positions along with 1 normally closed and 1 normally open contact. Installed in a 30mm hole, the device connects via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
