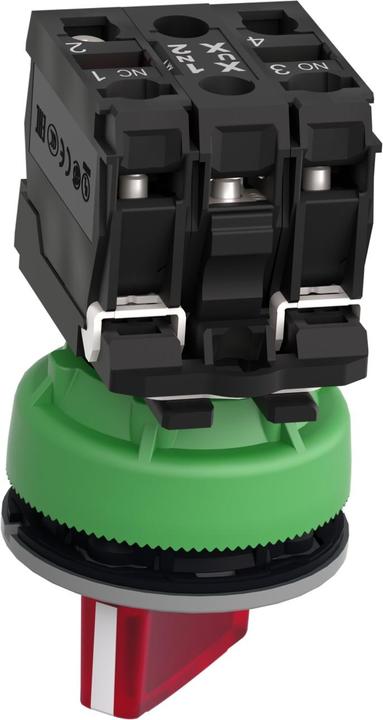

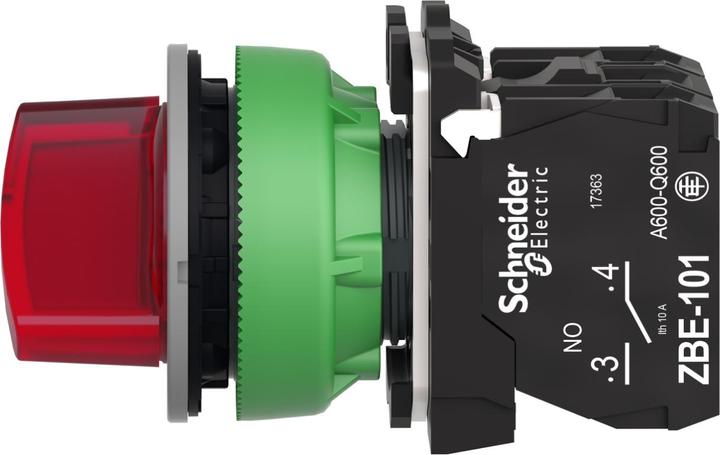

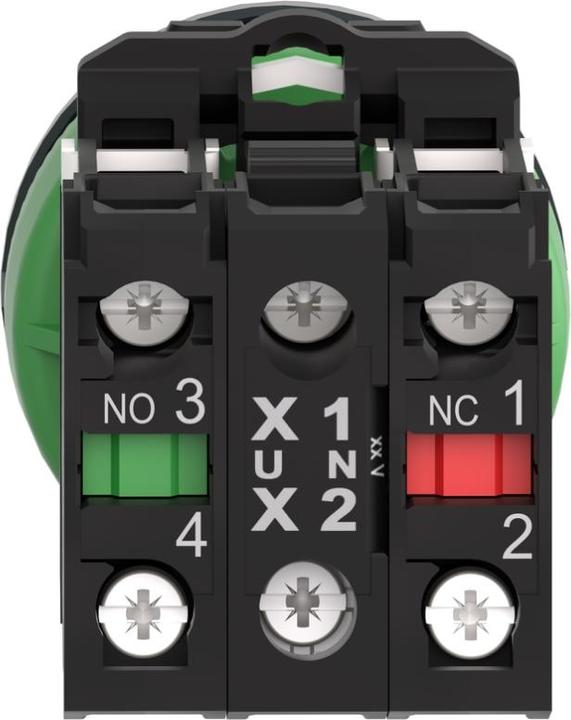

Schneider Electric Illuminated Selector Switch XB5FK124B5C0

Manufacturer: Schneider Electric
Description: Red illuminated selector switch, 24V, 1NO+1NC, in gray
Type: XB5FK124B5C0
Number of Switching Positions: 2
Actuator Type: Other
Suitable for Lighting: Yes
With Light Source: No
Button Color: Red
Hole Diameter: 30.5 mm
Latching Switching Function: No
Pushbutton: No
Protection Class (IP): IP66
Protection Class (NEMA): 13
Supply Voltage: 24 V
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Electrical Connection Type: Screw Connection
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black

Schneider Electric Illuminated Selector Switch XB5FK124B5C0: Additional Details
Illuminated selector switch made of plastic as a complete device with a 30mm installation size, Harmony XB5F series for flat installation. The color of the illuminated selector switch is red, and the actuator has 2 positions with 1 normally open and 1 normally closed contact. For 24V AC/DC. The color of the outer ring is gray. The modular Harmony series with a 30mm installation size combines easy installation, efficiency, modern design, and flexibility with maximum robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds Register of Shipping). EAN: 3606489760779.
