Series: Harmony XB4
Contact configuration: Normally open/normally closed contact
Current max: 6 A AC, 550 mA DC
Voltage max: 600 V AC/DC
Number of positions: 2
Connection type: Screw mounting
Switching angle: 90 degrees
Length: 46.5 mm
Width: 30 mm
Depth: 70 mm
Actuator type: Handle, with detent
Dimensions: 46.5 x 30 x 70 mm

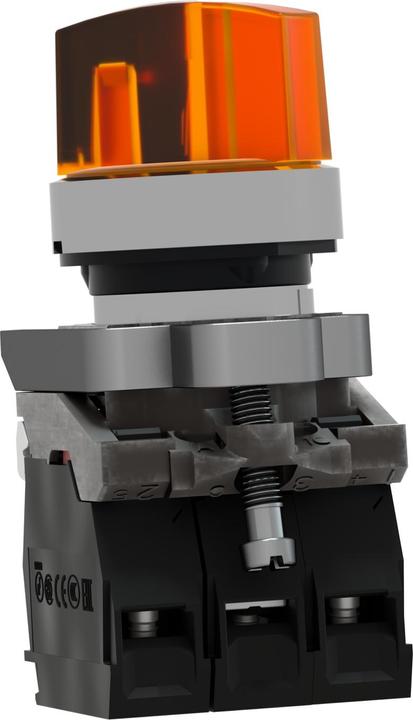

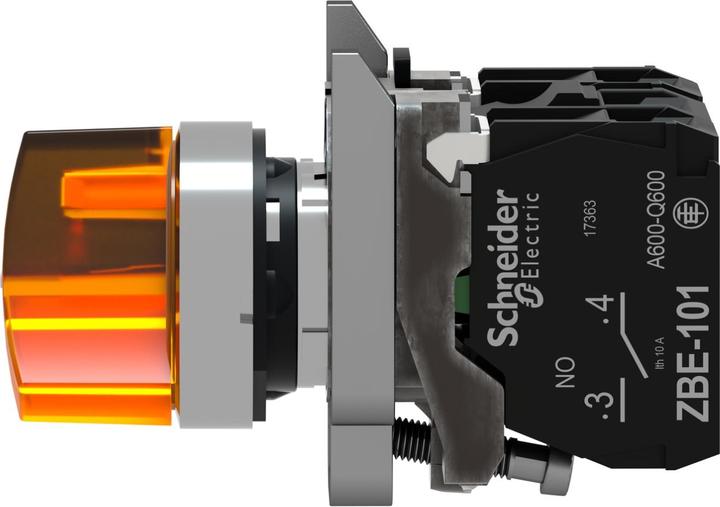

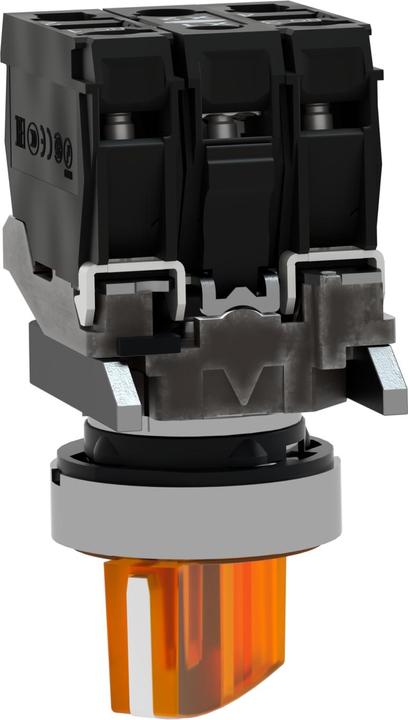

UL, CSA, IEC, CE, JIS, NEMA. XB4-BK illuminated rotary heads with handle. Complete product with 2 fixed positions, equipped with rotary head and housing with contact. Screw connection contact 1 NO + 1 NC.
