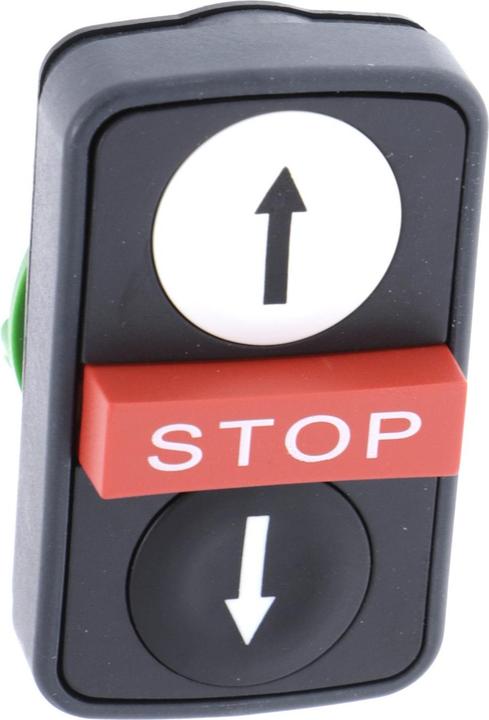

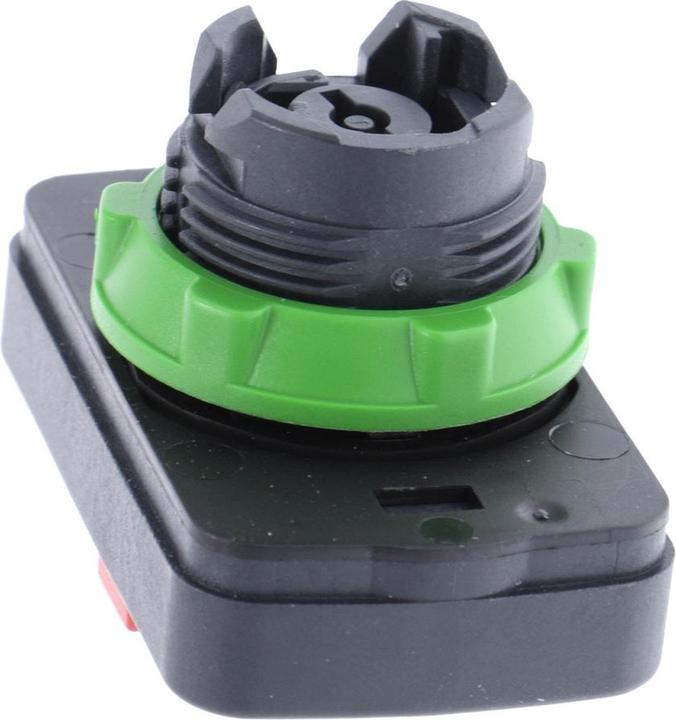

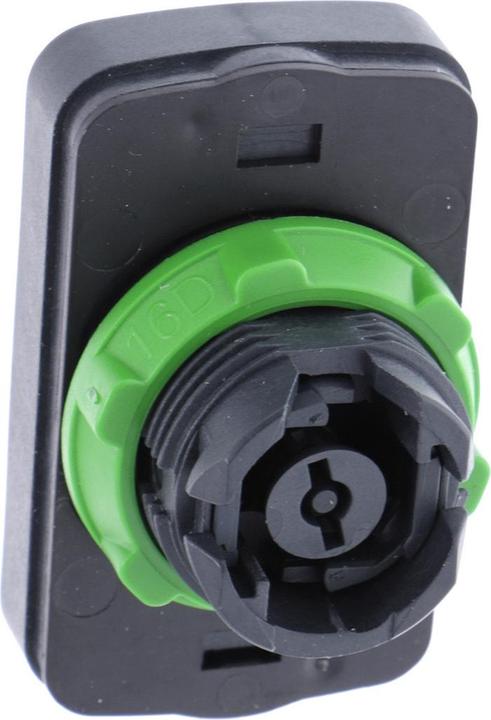

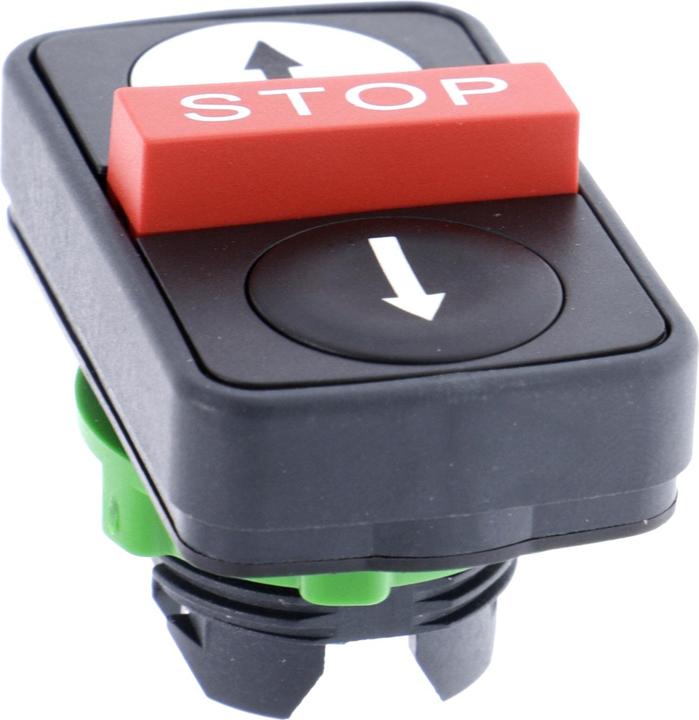

Schneider Electric Triple Push Button White ZB5AA71124

Manufacturer: Schneider Electric
Description: Triple push button in white, diameter 22 mm
Type: ZB5AA71124
Button color: Other
Number of switching positions: 3
Lens design: Rectangular
Mounting hole diameter: 22.5 mm
Button design: High
Suitable for lighting: No
With protective cover: No
Labeling: Yes
Switching function latching: No
Key end: Yes
With front ring: Yes
Material of front ring: Plastic
Color of front ring: Black
Protection class (IP), front: Other
Protection class (NEMA), front: Other

Additional details: Front element for Harmony XB5 triple push button. Front white/red/black, plastic cover, arrow up/STOP/arrow down. Push buttons: 2 flat, 1 protruding center STOP, white arrow up, black arrow down, red STOP. Dimensions (WxHxD): 30 x 50 x 35 mm, mounting diameter: 22 mm, weight: 0.023 kg. With labeling. Mechanical lifespan: 1,000,000 cycles. Rectangular head, standard. With high vibration and chemical resistance, ambient temperature: -40 to +70 degrees C. Certifications according to GL, CSA, LROS, DNV, UL listed, RINA, BV. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No. 14, EN/IEC 60947-1, JIS C 4520, UL 508.
