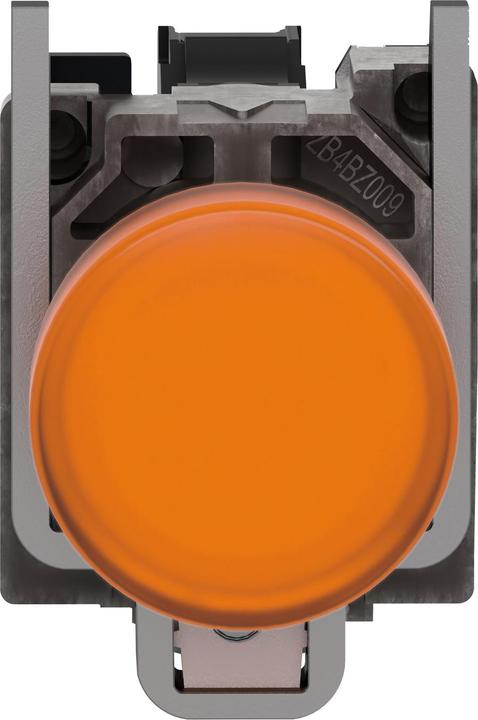

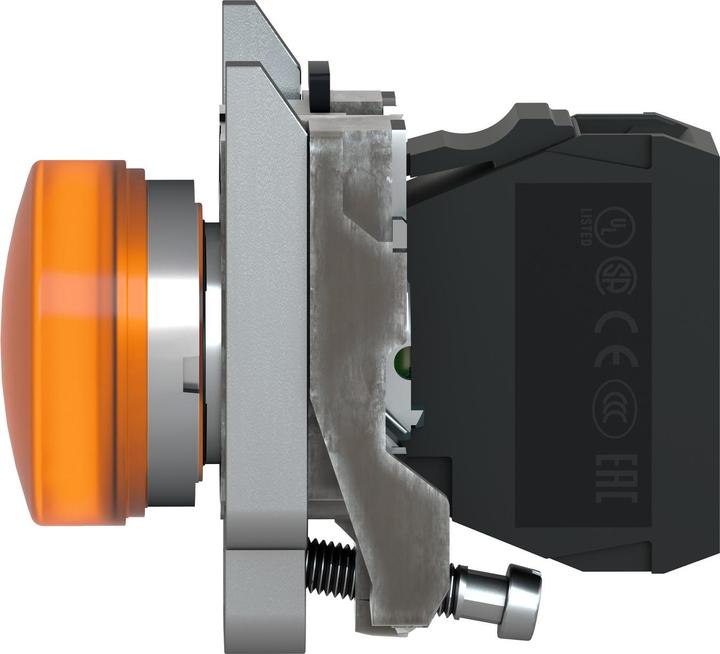

Schneider Electric Illuminated Push Button XB4FW35M5

Manufacturer: Schneider Electric
Description: Illuminated push button 30mm, 1NO + 1NC, orange, 230V
Type: XB4FW35M5
Number of command points: 1
Button shape: flat
Button color: orange
Lens shape: round
Hole diameter: 30.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 230 V
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: metal
Front ring color: chrome
Protection class (IP): IP66
Protection class (NEMA): 13

Additional details:
Harmony XB4F illuminated push button with simple lens, 1 normally open + 1 normally closed. 10,000,000 cycles. Dimensions (WxHxD): 36.6 x 47 x 55 mm, mounting diameter 30.5 mm. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. Chrome-plated metal, protected LED. Up to IP69K. Certifications: UL listed, CSA. Product standards: CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 4520.
