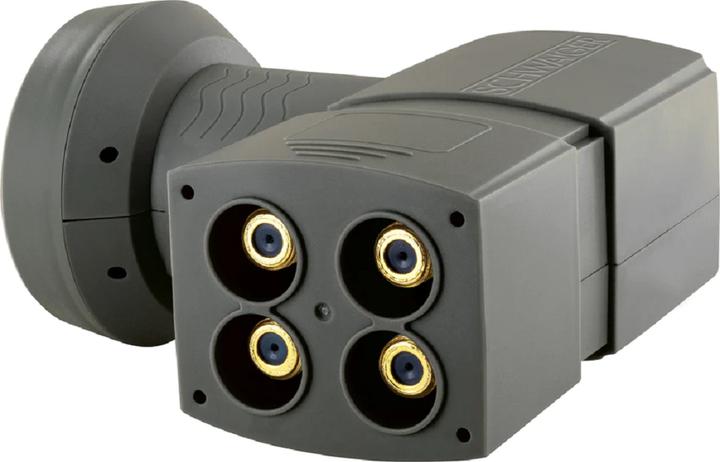

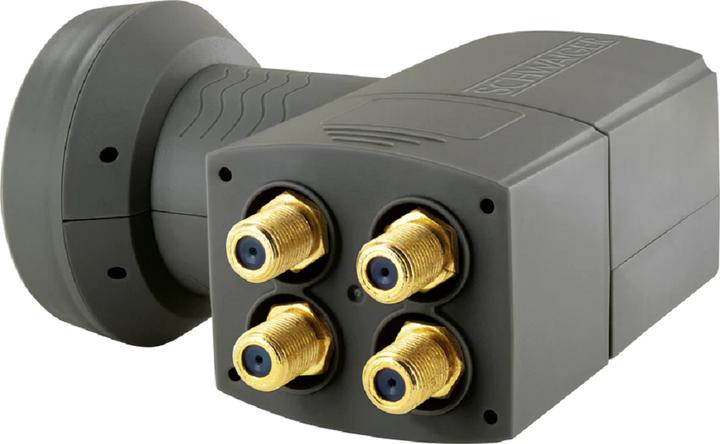

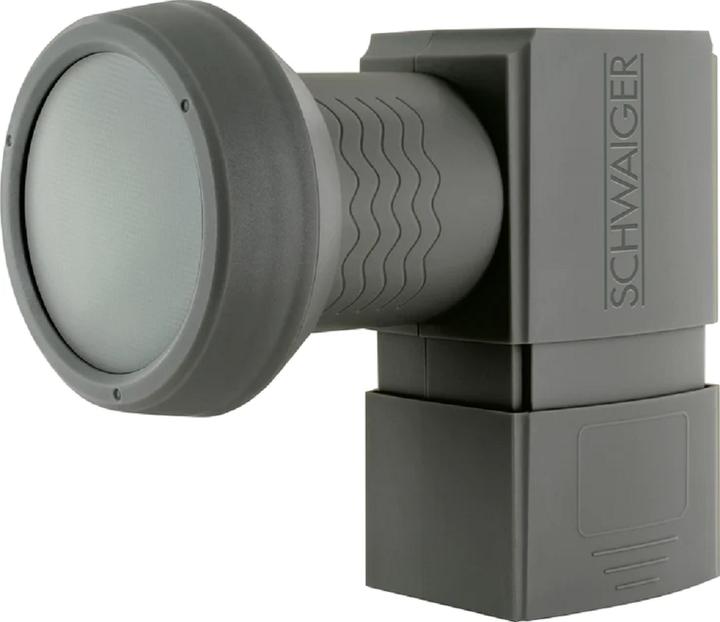

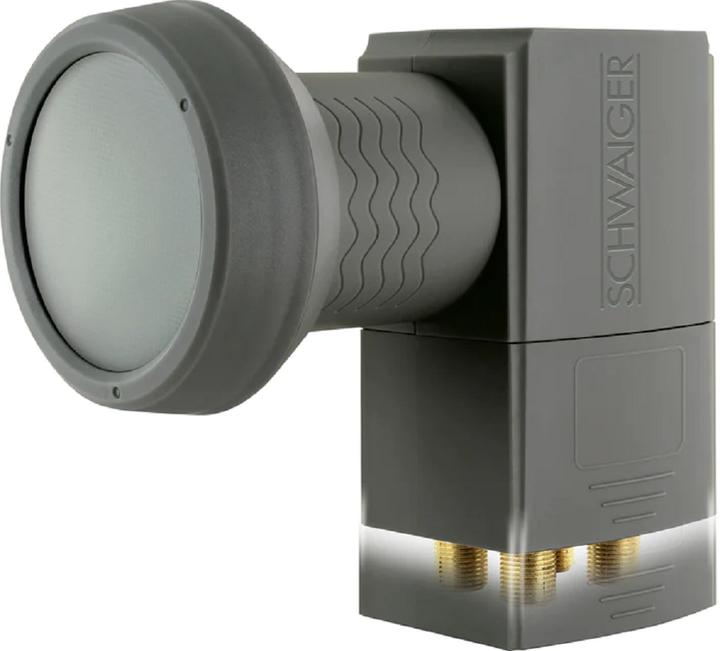

Schwaiger LNCA0004 Sun Protect Digital Quad LNB features a 40mm heat-resistant feed horn cap with a pull-out weather protection cover in anthracite. In clear weather, extremely high temperatures (up to 200°C) can occur on the LNB feed horn and potentially cause damage. The header cap of this Schwaiger Quad LNB resists deformation within 10 minutes at over 220°C. This LNB is designed for setting up a digital satellite system with up to 4 subscribers, allowing satellite receivers to connect directly to the LNB. The gold-plated F-connectors are safeguarded by a pull-out weather protection cover.

Product highlights include:

• Reception system for multi-participant satellite systems with an integrated multi-switch
• Independent program diversity for all participants
• Extremely heat-resistant feed horn cap (permanent at 150°C, 20 minutes at 150°C - 200°C, 10 minutes at over 220°C)
• Protection of the F-connectors by a pull-out weather protection cover
• Suitable for reception of all available satellite positions

Technical details:

• Connectors: 4 x F-socket
• Connector material: metal
• Contact: gold-plated
• Input frequency: 10.7 - 11.7 GHz (low), 11.7 - 12.75 GHz (high)
• Output frequency: 950-2,150 MHz
• Decoupling: > 25 dB
• Oscillation frequency: 9.75 GHz (low), 10.6 GHz (high)
• Gain (typical): > 55 dB
• Control function: 0 kHz (low), 22 kHz (high)
• Power supply vertical: 10.5 - 14.0 V, horizontal: 16.0 - 19.0 V
• Current consumption: typ. < 220 mA
• Feed input: 40 mm
• Dimensions (width): 105 mm
• Dimensions (height): 64 mm
• Dimensions (depth): 135 mm

Scope of delivery: 1x Digital Quad LNB Sun Protect.
