Shuttle XPC slim Barebone DS50U3, Intel i3-1315U, 2x LAN (1x 2.5Gbit,1x 1Gbit), 1xCOM,1xHDMI,1xDP
Intel Core i3-1315UMore than 10 pieces in stock at supplier
Product details

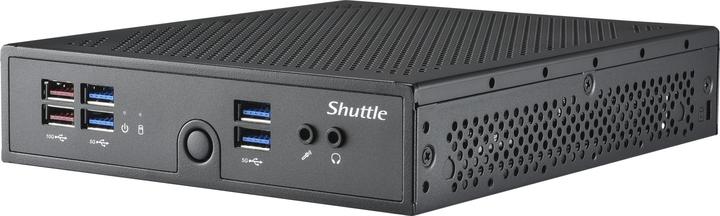

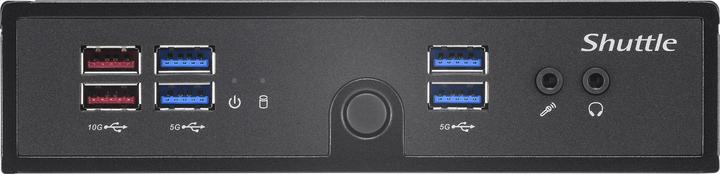

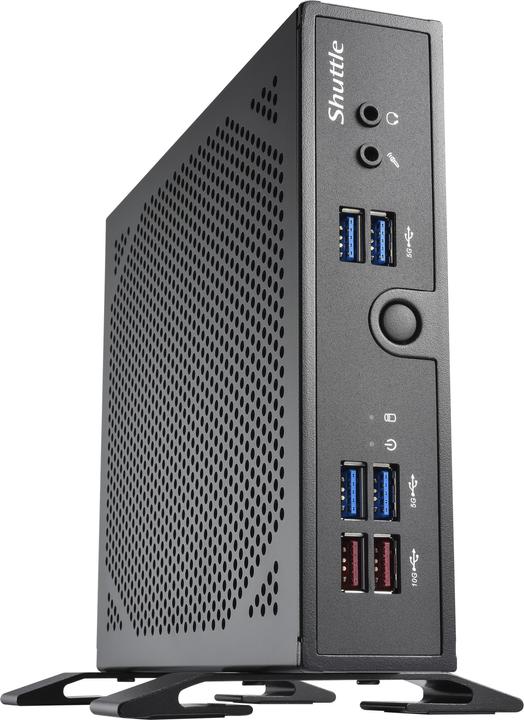

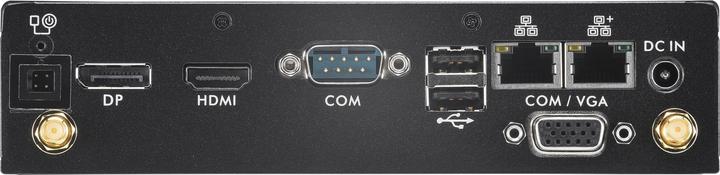

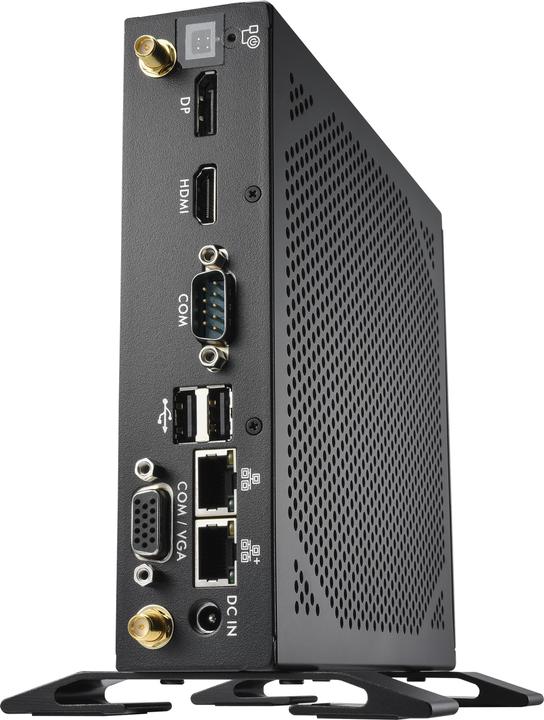

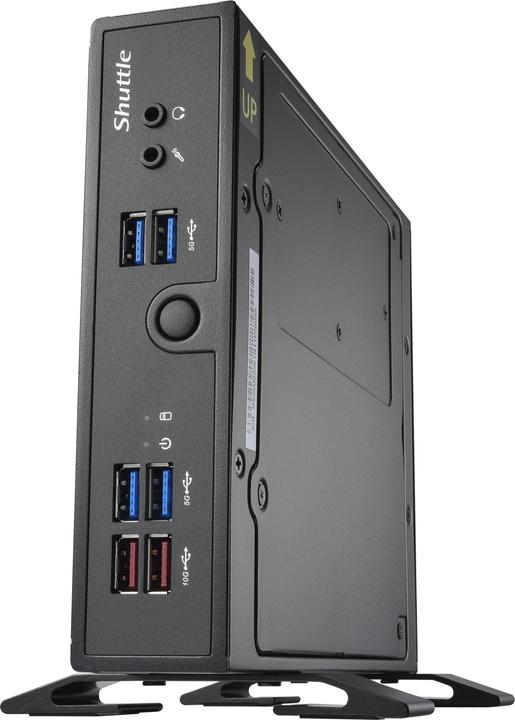

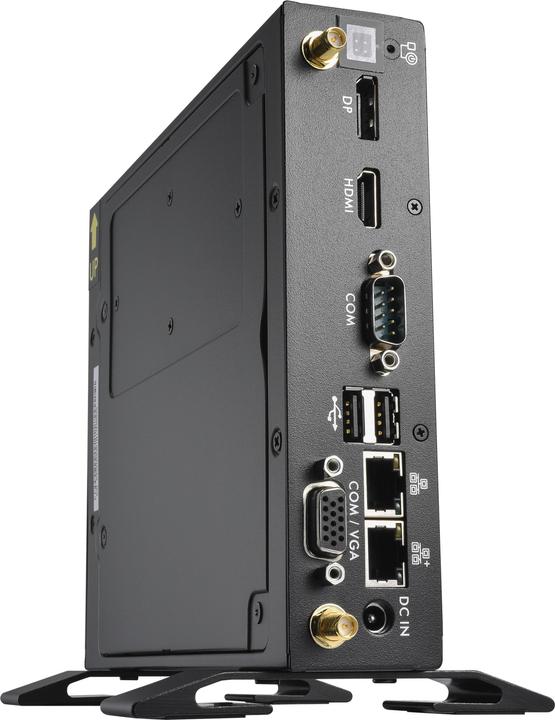

XPC slim DS50U3
Compact 1.3-Liter PC in industrial design with ULV processor
The DS50U series includes slim, fanless barebone PCs housed in a robust metal casing with versatile connectivity options. The soldered Intel Gen12/13 ULV processor provides sufficient power for playing 2160p/60 videos in 4K resolution. There are two digital outputs for UHD displays as well as a traditional VGA port. Components can be easily installed: two DDR5 memory modules, a 2.5" drive, and two M.2-2280 SSD cards fit behind the convenient case cover.
In the second M.2 slot, a 4G/5G module can be integrated optionally with the WWN04 adapter kit. Thanks to fully passive cooling, the system is virtually maintenance-free, suitable for 24/7 continuous operation, and very energy-efficient. It is ideal for professional applications such as digital signage, POS, control, office use, or as a media PC.
Fanless and quiet
- Passive cooling, no fan noise
- Ideal for noise-sensitive environments
- Less dust contamination, making it practically maintenance-free
24/7 Continuous operation
- This device is officially approved for 24-hour continuous operation (24/7).
Requirements:
- Free air circulation around the PC
- Accessible ventilation holes on the device.
- If a hard drive is installed, it must also be approved by the manufacturer for 24/7 operation.
Case
- Slim PC (Nettop) with black steel casing
- Fanless, fully equipped with passive cooling
- The installation slots for memory modules, 2.5" drive, and M.2 cards are easily accessible behind two cover plates
- Dimensions: 20 x 16.5 x 3.95 cm (L x W x H) = 1.3 liters
- Weight: 1.6 kg net and 2.3 kg gross
- Two openings for Kensington Lock and numerous M3 threaded holes on both sides of the casing.
Operating position:
1) Vertical: The device is typically...
Graphics card model | Intel UHD Graphics |
Memory type | DDR5 RAM |
Video connections | DisplayPort (1x), HDMI (1x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Internal connection options | 6-pin PCI Express (1x) |
USB ports | USB-A |
Number of processor cores | 6 -Core |
Item number | 44707634 |
Design | Ultra Slim |
Processor type | Intel Core i3-1315U |
Clock frequency | 3.30 GHz |
Number of processors | 1x |
Number of processor cores | 6 -Core |
Number of threads | 8 |
Socket | LGA 1700 |
Max. turbo clock rate | 4.50 GHz |
Max. TDP | 15 W |
Processor properties | Onboard processor |
Memory type | DDR5 RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 64 GB |
Memory voltage | 1.10 V |
Graphics card model | Intel UHD Graphics |
Hardware application range | Multimedia |
Max. connected monitors | 2x |
Internal connection options | 6-pin PCI Express (1x) |
Data storage controller | Intel i219LM |
"Number of 2.5"" drive slots" | 1x |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2500 Mbit/s |
Network features | Wake on LAN |
Connectivity | Ethernet |
Video connections | DisplayPort (1x), HDMI (1x) |
Audio outputs | 3.5mm jack (1x) |
Power | 90 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Power cord, Quickstart overview |
Weight | 1600 g |
Width | 200 mm |
Length | 165 mm |
Height | 39.50 mm |
Product Safety |
Length | 26 cm |
Width | 14 cm |
Height | 25 cm |
Weight | 2.85 kg |
