Siemens 3RT2037-3XB40-0LA2
6 pieces in stock at supplier
input voltage4
Product details

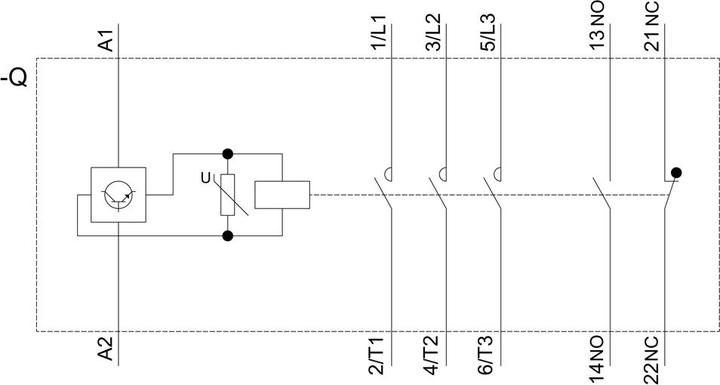

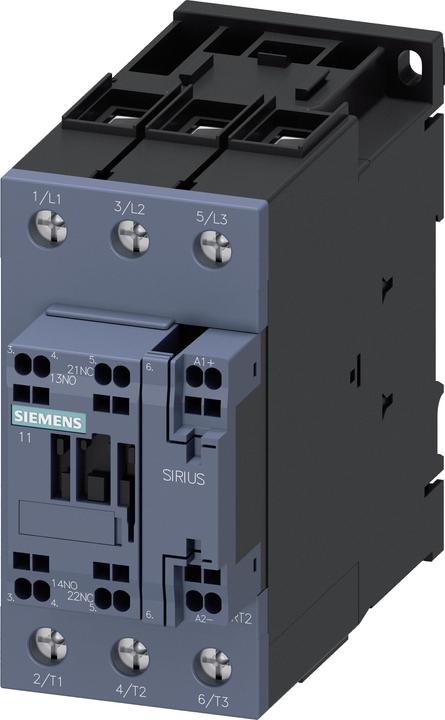

Railway contactor, AC-3e/AC-3, 65 A, 30 kW / 400 V, 3-pole, DC 24 V, 0.7-1.25 US, electronic drive, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: screw connection, control and auxiliary circuit: spring-loaded connection, size: S2 performance contactor SIRIUS 3RT2 for switching motors under extreme conditions, e.g. for railway applications. The 3RT2 contactors are part of the SIRIUS system modular concept with its optimally coordinated products. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the consumer branch. Many of the device combinations are factory tested. The contactors offer optimal connectivity to the control system for every application (parallel, via ASi or IO-Link). Integrated auxiliary contacts reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT2 contactors are climate-resistant, globally approved (e.g. IEC and UL/CSA), and IE3/IE4-ready. This variant features an extended operating and temperature range for harsher environmental conditions. They are available in various sizes and a wide power range in AC and DC actuation. In addition to screw connection technology, the devices are also fully available with spring-loaded connections for a quick, maintenance-free, and vibration-resistant connection. The comprehensive accessories, such as auxiliary contacts, auxiliary relays, etc., are uniform across all sizes. The available connection blocks, functional modules, and the SIRIUS 3RV29 feed system significantly reduce wiring effort. Simple, efficient, always up-to-date - the SIRIUS system modular concept.
Relay type | Power contactor, Switching relay |
input voltage | 24 V |
Electric current output | 65 A |
Output current type | AC |
Number of poles | 3x |
Item number | 33752770 |
Manufacturer | Siemens |
Category | Relays |
Manufacturer No. | 3RT20373XB400LA2 |
Release date | 17.5.2023 |
Relay type | Power contactor, Switching relay |
input voltage | 24 V |
Electric current output | 65 A |
Output current type | AC |
Switching function | Normally open, Opener |
Number of openers | 1x |
Number of closers | 3x |
Number of poles | 3x |
Max. Switching capacity | 30 kW |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,74 |
Scope of delivery | 1 pc. |
