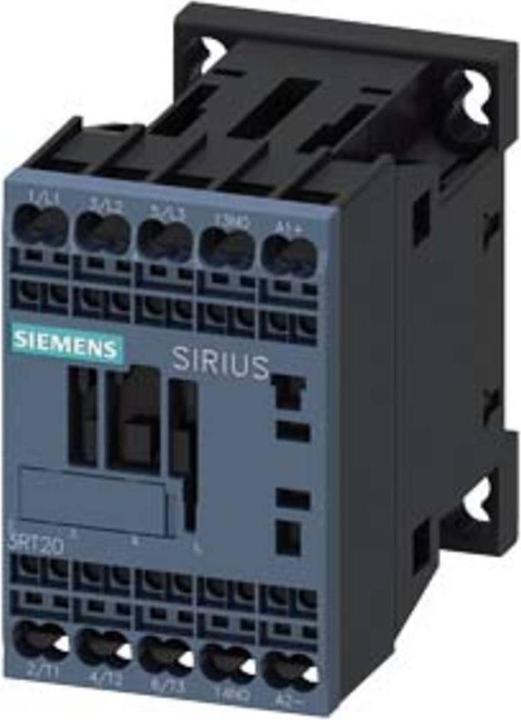

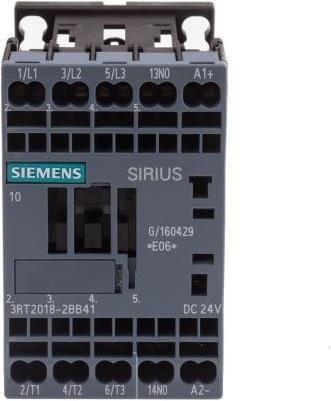

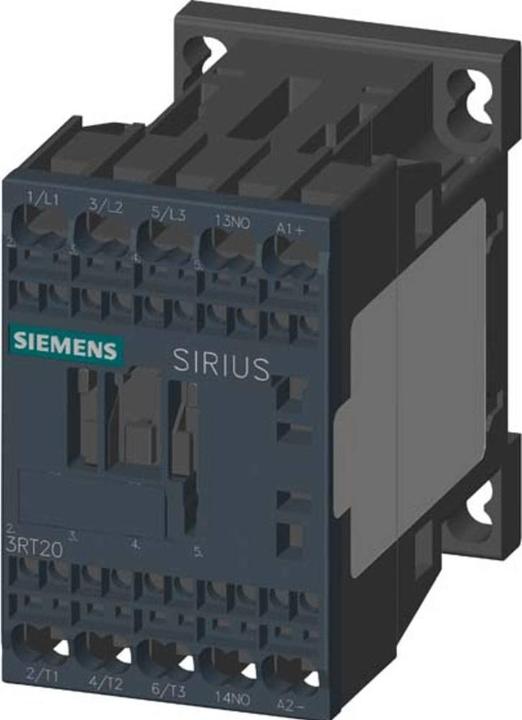

Range: Sirius Innovation
Series: 3RT2
Number of poles: 3
Coil voltage: 24 V DC
Nominal contact current: 16 A
Nominal contact voltage: 400 V AC

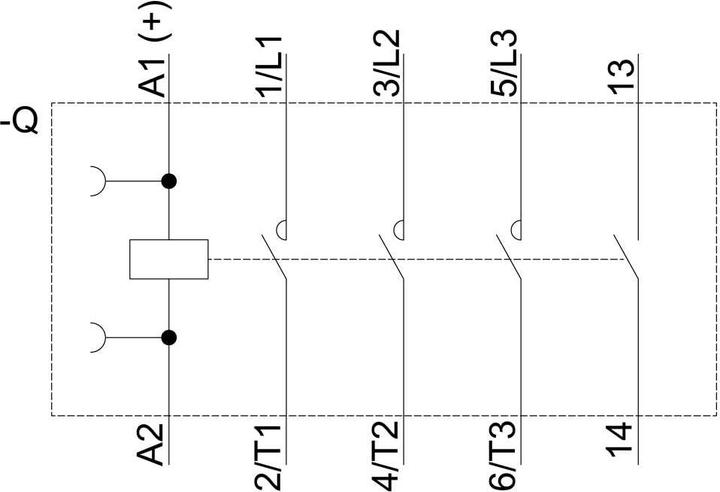

Contact configuration: 3 NO contacts
Number of auxiliary contacts: 1
Power: 7.5 kW (AC3)
Connection type: Spring-cage terminal block

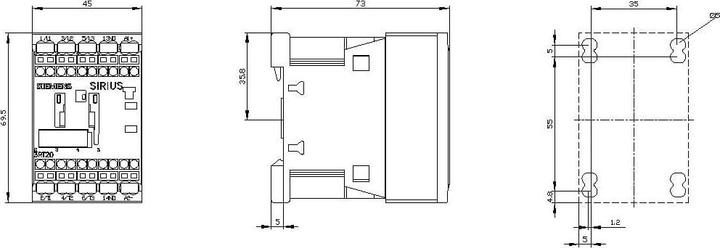

Length: 70 mm
Operating temperature max: +60°C

CE, UL, CSA, CCC. Screw terminals can be used only with overload relays for screw terminals, and spring terminals can be used only with overload relays for spring terminals. Contactors - 3RT2 series. Contactors 3RT2 are weatherproof and suitable for worldwide use, sizes S00 to S2, up to 37 kW. Size S00, up to 7.5 kW; Size S0, up to 18.5 kW; Size S2, up to 37 kW. Screw terminal / spring terminal. Impulse withstand voltage: 6 kV. Insulation voltage: 690 V. Active power loss of only 4 W. Designation K according to DIN 40719 (expandable to IEC 204-2) and IEC 750; Q according to DIN EN 61346-2.
