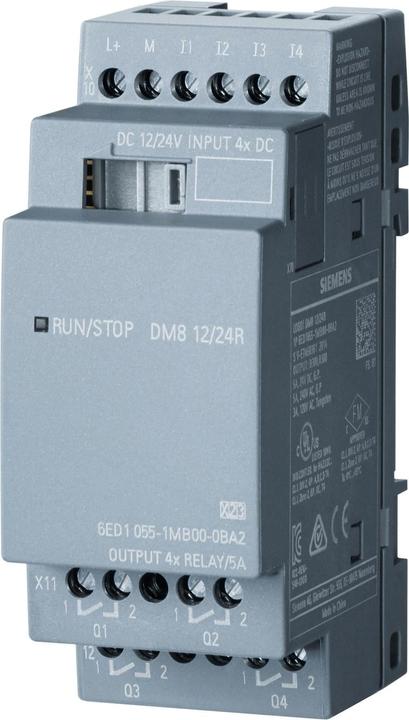

Series: LOGO! 8
Supply Voltage: 12 - 24 V DC
Output Type: Relay
Number of Outputs: 4
Input Type: Digital
Number of Inputs: 4
Mounting Type: DIN Rail
Width: 35.5 mm
Depth: 58 mm
Connection Type: Screw
Programmable Interface: Computer
Module Type: I/O Expansion
Maximum Operating Temperature: +55 °C

LOGO! 8 - Expansion Modules. LOGO! 8 is the latest generation of intelligent logic modules from Siemens, providing an enhanced upgrade from the previous generation. Improvements include simplified handling, a new optical display, and complete communication functions via Ethernet across the entire logic module series. Another advantage of LOGO! 8 is that all logic modules are equipped with an integrated web server featuring drag-and-drop programming. No knowledge of HTML coding is required. A variety of expansion modules specifically for LOGO! 8 allows for custom expansions to 24 digital inputs, 16 digital outputs, 8 analog inputs, and 2 analog outputs. Maximum configurations offer up to 88 digital inputs, 80 digital outputs, 40 analog inputs, and 18 analog outputs. The flexibility of LOGO! 8 expansion options provides users with extensive customization to ensure that the application is covered.
