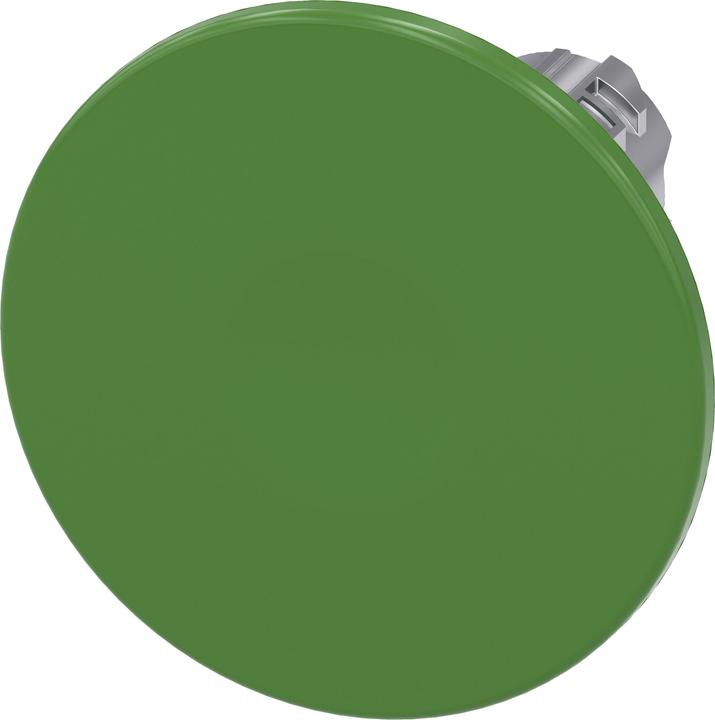

Siemens Front element for emergency stop Ř22mm gn rnd 3SU1050-1CD40-0AA0
Product details
Mushroom push button, 22 mm, round, metal, high gloss, green, 60 mm, momentary. The SIRIUS ACT mushroom push button features a large handle that allows for comfortable operation with the whole hand. Under the SIRIUS ACT brand, Siemens offers a unique portfolio of control and signaling devices with global product approvals in three modern design lines made of robust real metal and high-quality plastic. The innovative snap-on concept simplifies installation to the extent that only one hand and no special tools are required. For mounting, plain holes are sufficient, as a 100% anti-rotation feature is already integrated. Thanks to the consistently high protection class, these robust devices are industrial-grade and suitable for outdoor use. Even cleaning with high-pressure jets is possible. Neither dust, oils, nor aggressive alkalis can disrupt reliable operation. In addition to standard wiring, most devices can also be connected to the control system via PROFINET, AS-Interface, or IO-Link. This reduces your wiring effort, minimizes sources of error, and provides greater flexibility. The graphical online configurator conveniently supports the selection and ordering of individual devices, housings, and labeling. Extensive documentation (e.g., manual, 3D data, connection diagram) is available. Available versions: 30/40/60 mm mushroom diameter, multiple colors, illuminated/non-illuminated, latching/momentary operation, pull/turn release. Note: Individual device, holder, and modules must be ordered separately. SIRIUS ACT - Performance in Action for control and signaling. Easily mounted, simply strong, simply perfect.
Colour | Green, Silver |
Mounting type | Built-in installation |
Width | 60 mm |
Diameter | 22 mm |
Item number | 33753605 |
Manufacturer | Siemens |
Category | Buttons + Switches |
Manufacturer No. | 3SU1050-1CD40-0AA0 |
Release date | 17.5.2023 |
Colour | Green, Silver |
Exact colour description | Green, Silver |
Material group | Metal, Plastic |
Material | Metal, Metal front ring, Plastic |
Operating mode | Rotary knob |
Mounting type | Built-in installation |
Mounting type | Screw fastening |
LED lighting | without LED |
Number of poles | 1x |
Protection type (IP code) | IP66, IP67, IP69, IP69K |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 95,84 kg |
Climate contribution | EUR 0,80 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Front element |
Length | 60 mm |
Width | 60 mm |
Height | 60 mm |
Diameter | 22 mm |
